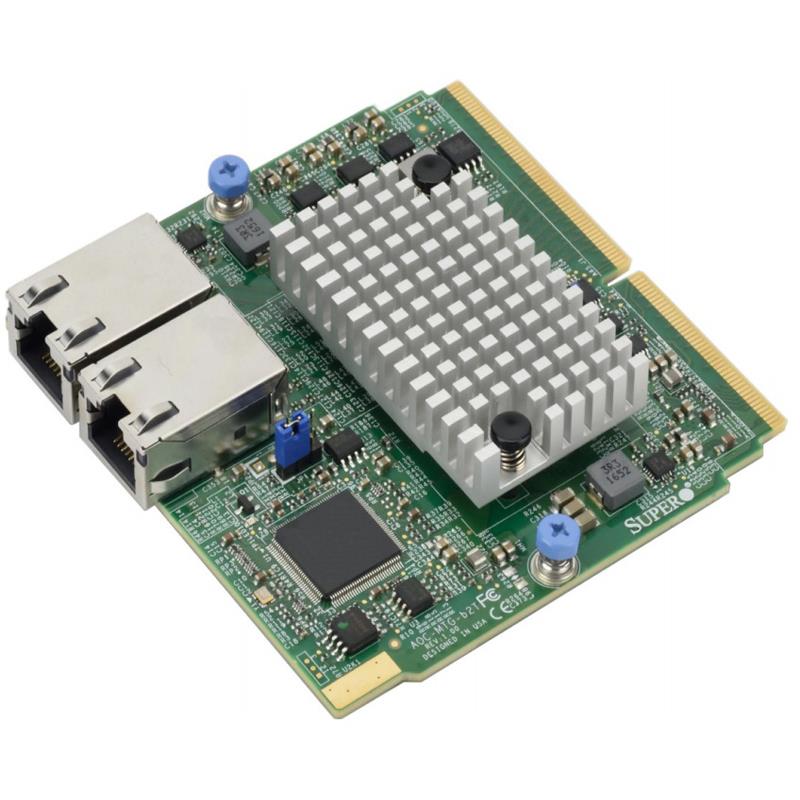

Supermicro AOC-MTG-B2T-O SIOM 2-port 10GbE RJ45 10GBase-T, Broadcom BCM57416
• Ideal for Storage Systems
• Swappable bracket for 2U+ chassis
• Asset Management Features with thermal sensor
• Broadcom BCM57416 10GbE controller RJ45 connectors
SIOM 2-port 10GbE RJ45 10GBase-T, Broadcom BCM57416 For system integration / bundle, ONLY
• TruFlow
• VXLAN and NVGRE
• NPAR (NIC Partitioning)
• Dual RJ45 Connectors
• Super I/O Module (SIOM) Form Factor
• Broadcom BCM57416 10GbE controller
• Asset Management Features with thermal sensor
• Low latency RDMA over Converged Ethernet (RoCE)
• RoHS compliant 6/6
Extra Specifications for Supermicro AOC-MTG-B2T-O SIOM 2-port 10GbE RJ45 10GBase-T, Broadcom BCM57416
| Main Specifications | ||
| Device Type | Ethernet Controller | |
| Dimensions (WxDxH) | Card PCB dimensions: 14.224cm x 6.89cm (5.6in x 2.71in) (LxW) | |
| Height of end brackets: standard 12cm (4.725in), low-profile 8cm (3.15in) | ||
| Form Factor | Super I/O Module (SIOM) | |
| Interface (Bus) Type | PCI-E 3.0 (8GT/s) | |
| Networking | ||
| NIC Partitioning | 16 Physical Functions, QoS per partition, Partitioning control via sideband communication, Up to 64MAC/VLAN filters per partition, Stateless offload configuration per partition, VEB/VEPA support | |
| Data Center Bridging | Priority-based flow control (PFC, IEEE 802.1Qbb) | |
| 8 traffic classes per port, fully DCB compliant per 802.1Qbb | ||
| Enhanced Transmission Selection (ETS, IEEE802.1Qau) | ||
| Quantized Congestion Notification (QCN, IEEE802.1Qau) | ||
| Data Center Bridging Capability eXchange (DCBX, IEEE802.1Qaz) | ||
| Flow Processing | Exact/Wildcard Match Flow Lookup, VLAN insertion/deletion, NAT/NAPT, Mirroring | |
| Management Features | Network Controller Sideband Interface (NC-SI) | |
| PXE and iSCSI boot | ||
| Asset Management with Thermal Sensors | ||
| Port Quantity | Dual RJ45 connectors | |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue, Support for 128 Virtual Functions, VXLAN, NVGRE, Geneve, Edge Virtual Bridging (EVB) | |
| Storage Controller | ||
| Data Transfer Rate | 10GbE | |
| Miscellaneous | ||
| Features | Jumbo Frames (up to 9600-byte), 802.3x flow control, Link Aggregation (802.3ad), Virtual LANs 802.1q VLAN tagging, Configurable Flow Acceleration, IEEE 1588 and Time Sync, RDMA over Converged Ethernet (RoCE) | |
| Included Accessories | Swappable bracket for 2U+ chassis | |
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Power | ||
| Comsumtion Operational | Maximum power consumption: 11W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
