- Toshiba MG10SCA20TE 20TB Hard Drive SAS 12Gb/s 7200RPM 3.5-Inch 512MB MG10 Series

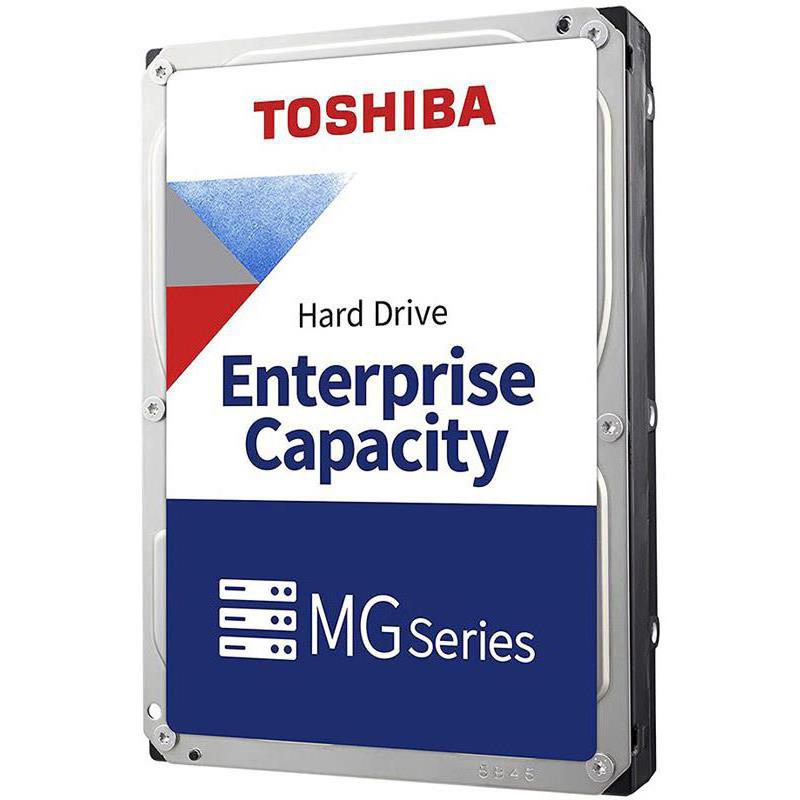

Toshiba MG10SCA20TE 20TB Hard Drive SAS 12Gb/s 7200RPM 3.5-Inch 512MB MG10 Series
Persistent Write Cache Technology
Integrate easily into standard 3.5-inch drive bays
SAS-3.0 interface, Lower operational power profile
Business Critical Enterprise Server and Storage Systems
Hard Drive 20TB SAS 12Gb/s 7200 RPM 3.5in 512MB Cache Optimized For Optimized Cloud-scale and Rack-Scale Storage, FastFormat 512e MG10 Series - OEM
The MG10 Series features Toshiba’s fourth-generation, 10-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of up to 20TB. The industry-standard 3.5-inch form factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 20TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology. These advances help the MG10 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with a SATA 6.0Gbit/s interface, the MG10 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business-critical servers and storage systems.
Features
Up to 20TB capacity
Conventional Magnetic Recording (CMR) for broad compatibility
Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
Industry-leading 10-disk helium-sealed design for superior storage density
Industry Standard 3.5-inch 26.1mm height Form Factor
7200rpm Performance
SAS-3.0 Interfaces
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
550 Total TB Transferred per Year Workload Rating
512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
Power efficiency improvements vs. prior MG Series generations
Extra Specifications for Toshiba MG10SCA20TE 20TB Hard Drive SAS 12Gb/s 7200RPM 3.5-Inch 512MB MG10 Series
| Main Specifications | ||
| Device Type | Hard drive - internal - 512e Format | |
| Capacity | 20TB | |
| Interface | SAS 12Gb/s | |
| Form Factor | 3.5-inch | |
| Weight | 1.58 lb | |
| Hard Drive | ||
| Buffer Size | 512MB | |
| Spindle Speed | 7200RPM | |
| Performance | ||
| Max Sustainable Transfer Rate | 268MiB/s | |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0, 1.5 | |
| Miscellaneous | ||
| MTBF | 2.5 Million | |
| Key Application | Cloud-scale Sever and Storage Infrastructure, Software-defined data center infrastructure, File- and Object-based storage infrastructure, Tiered Storage Infrastructure Solutions, Workloads and Use-Cases that Benefit from High Capacity per Spindle disk drives, Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems, Compliance Data Archives and Data Life-Cycle Management Storage Systems, Data Center Data-Protection and Data Back-up Infrastructure | |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Toshiba |
| Type of Support: | FULL |
| Phone No.: | 800-457-7777 |
| URL: | Click here for Manufacturer Website |
