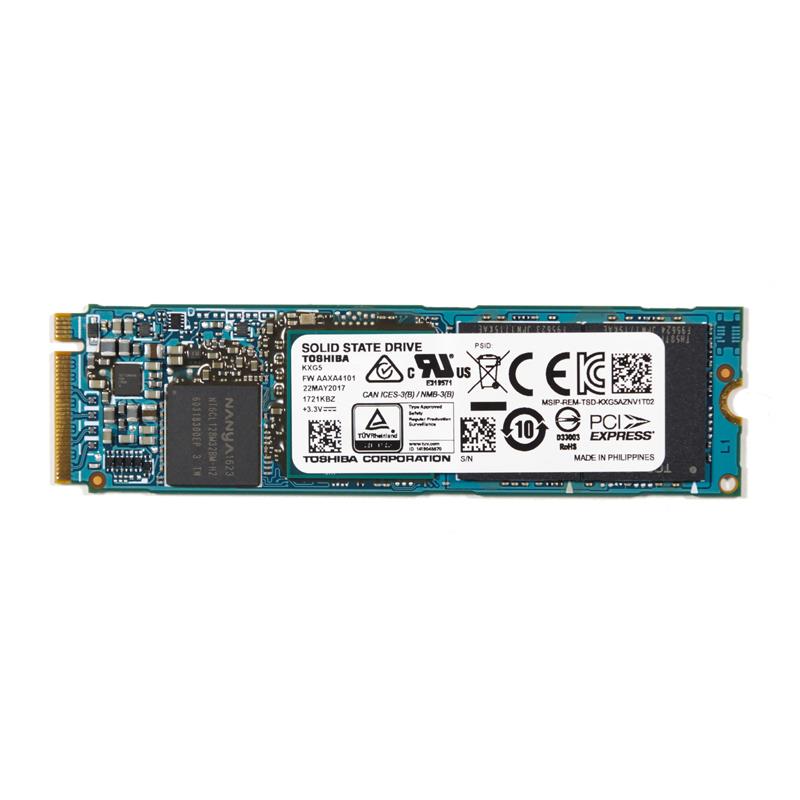

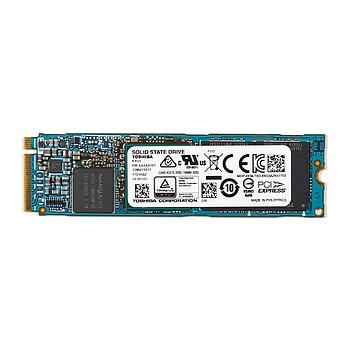

Toshiba KXG50ZNV256G Hard Drive SSD 256GB NVMe PCIe 3.1 x4, BiC S3TLC M.2 2280 <1DWPD - XG5 Series

• Idela for Enthusiast Desktop/Laptop
• Compact single-sided M.2 2280 form factors
• 256GB - 3D TLC (3-bit-per-cell) flash memory
• Host Controlled Thermal Management is supported

Hard Drive SSD M.2 256GB NVMe PCIe 3.1 x4, BiC S3TLC 2280 <1DWPD - XG5 Series

• Device Self-test is supported
• Host Controlled Thermal Management (HCTM) is supported
• Strong & highly-efficient ECC named QSBCTM is supported
• Storage Interface Interactions Specification(SIIS) Version 1.06 is supported

Extra Specifications for Toshiba KXG50ZNV256G Hard Drive SSD 256GB NVMe PCIe 3.1 x4, BiC S3TLC M.2 2280 <1DWPD - XG5 Series

Main Specifications
Capacity	256GB
Device Type	Solid state drive - internal
Dimensions (WxDxH)	Height 2.23 x Width 22.0 x Length 80.0 mm
Form Factor	M.2 22 x 80mm
Interface	32 GT/s (PCIe / Gen3x4 Lane)
	PCI Express Base Specification Revision 3.1a (NVM Express Revision 1.2.1 command set)
NAND Flash Memory Type	TLC (BiCS Flash)
Weight	10 grams
Performance
Read	2,700 MB/s {2,580 MiB/s}
Write	1,050 MB/s {1,000 MiB/s}
Miscellaneous
MTBF	1,500,000 hours
Applications	Thin performance Notebook
	Enthusiast Desktop/Laptop
	Mainstream PC Computing
	Server / Storage Boot
Power
Power Consumption (Active)	4.0 W typ.
Environmental Parameters
Non-Operating Operating Temperature	-40 to 85 C
Shock Tolerance	Operating/Non-operating: 14.7 km/s2 { 1,500 G } ( 0.5 ms )
Vibration Tolerance	Operating/Non-operating: 196 m/s2 { 20 G } ( Peak, 10 to 2,000 Hz )
Min Operating Temperature	0 to 95 C ( Contorller Temperature )
	0 to 85 C ( Other Components Temperature )
