- PNY VCQGV100-BLK Nvidia Quadro GV100 32GB HBM2 PCIe 3.0 x16

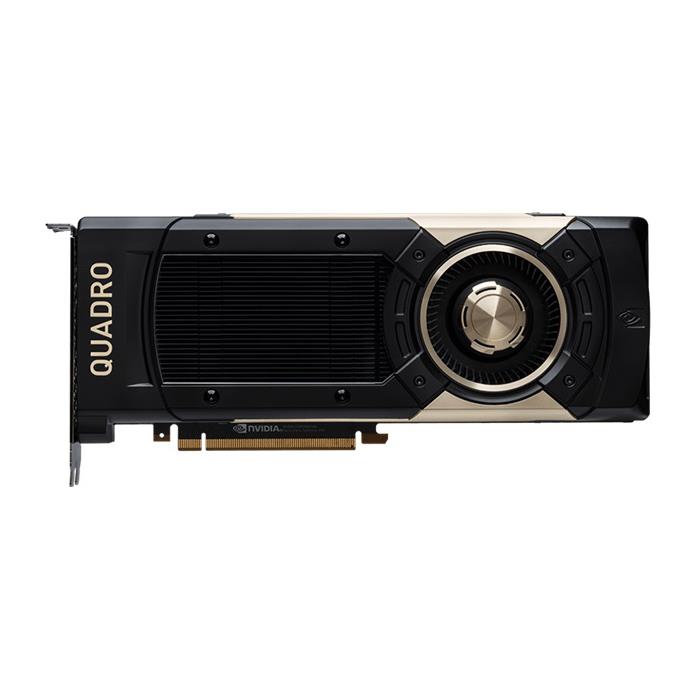

PNY VCQGV100-BLK Nvidia Quadro GV100 32GB HBM2 PCIe 3.0 x16
• 32K texture and render processing
• NVIDIA Quadro MOSAIC technology
• Professional 3D stereo synchronization
• NVIDIA GigaThread engine with 7 async copy engines
Quadro GV100 32GB HBM2 PCIe 3.0 x16 - Active Cooling - Supermicro GPU-NVQGV100
This product is no longer available.
• DisplayPort 1.4
• Unified Memory
• Full-scene antialiasing
• NVIDIA Quadro Sync II
• NVIDIA GPUDirect for Video
• 32K texture and render processing
• NVIDIA Quadro MOSAIC technology
• OpenGL quad buffered stereo support
• Ultra High Resolution desktop support
• Professional 3D stereo synchronization
Extra Specifications for PNY VCQGV100-BLK Nvidia Quadro GV100 32GB HBM2 PCIe 3.0 x16
| Main Specifications | ||
| Cooler Type | Ultra-quiet active fansink | |
| Device Type | Graphics card | |
| Form Factor | 4.40 H x 10.50 L, Dual Slot | |
| Graphics Engine | NVIDIA Quadro GV100 | |
| Interface Type | PCI Express 3.0 x16 | |
| Processor Number | 5120 | |
| Memory | ||
| Bandwidth | 870 GB/s | |
| Bus Width | 4096-bit | |
| Size | 32GB HBM2 | |
| Video Output | ||
| API Supported | Graphics APIs: Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0 | |
| Compute APIs: CUDA, DirectCompute, OpenCL | ||
| Max Resolution Details | Maximum DP 1.4 Resolution: HDR 7680 x 4320 at 60Hz (30-bit color) | |
| 5K Display Support: HDR 5120 x 2880 at 60Hz (30-bit color) | ||
| 4K Display Support: HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz | ||
| Maximum DVI-D DL Resolution: 2560 x 1600 at 60Hz via 3rd party adapter | ||
| Maximum DVI-D SL Resolution: 1920 x 1200 at 60Hz via included adapter | ||
| Multi-GPU Technology | NVLink (2-way) or SLI HB | |
| Miscellaneous | ||
| RoHS | Yes | |
| Additional Information | Energy Star Enabling | |
| DisplayPort with Audio | ||
| DVI-D Single-Link Connector | ||
| HDMI Support | ||
| Professional 3D Support | ||
| Quadro Sync II Compatible | ||
| NVIDIA GPU Direct Compatible | ||
| Battery | ||
| Quantity | 4 | |
| Software / System Requirements | ||
| Minimum System Requirements | Intel Core i5, i7, Xeon or later | |
| AMD Phenom or Opteron-class or later | ||
| PCIe x16 Gen 3 (preferred) expansion slot | ||
| 2 GB or more of system memory, 8 GB recommended | ||
| Internet connection (if preferred for driver installation) | ||
| DisplayPort (preferred) or DVI compatible displays | ||
| HDMI display(s) with purchase of optional DP to HDMI adapter(s) | ||
| OS Required | Microsoft Windows 10 (64-bit) | |
| Microsoft Windows 8.1 and 8 (64-bit) | ||
| Microsoft Windows 7 (64-bit) | ||
| Linux Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit) | ||
| Recommended Power Supply | 250 W | |
| Expansion / Connectivity | ||
| Compatible Slots | 1x PCI Express 3.0 x16 | |
| Interface Ports | Four DisplayPort 1.4 Connectors | |
