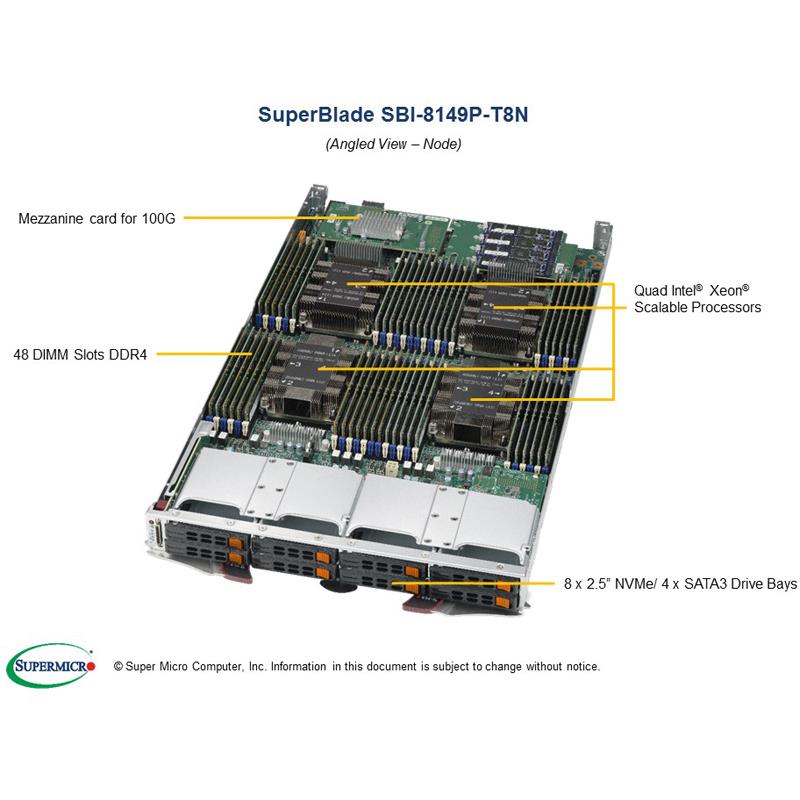

Supermicro SBI-8149P-T8N Blade Barebone Quad Processor

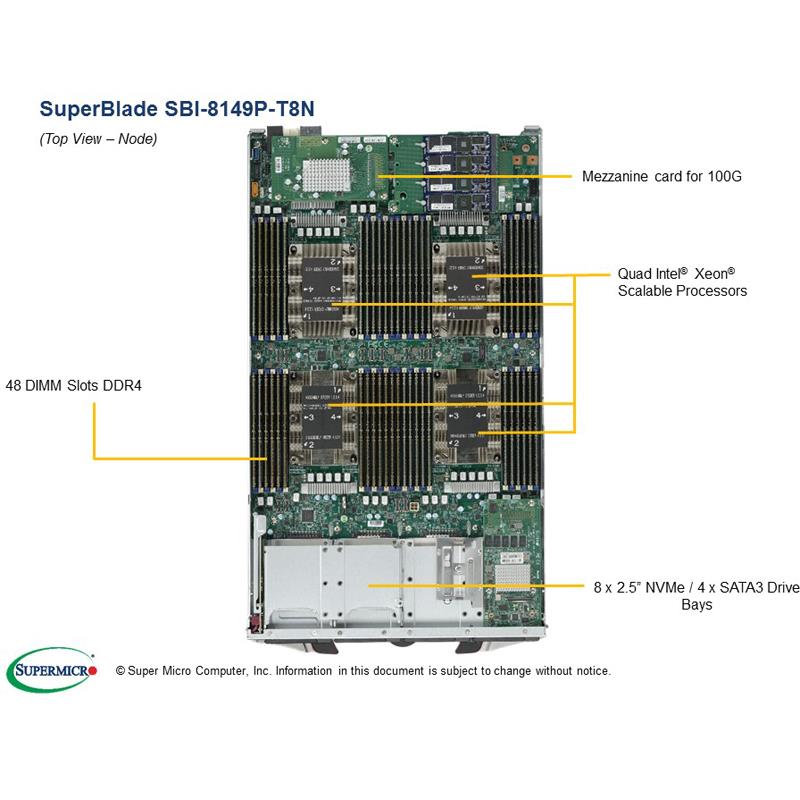

SuperBlade Server for Up to Quad Xeon Scalable processors Gen. 2, Socket P LGA 3647, QPI up to 10.4GT/s - Supports up to 12TB DDR4 ECC LRDIMM / RDIMM in 48x 288 DIMM slots - On-Board : Intel C620 Chipset, support RAID 0,1,5,10,Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM), Dual 10G onboard - Drive Bays: 8 Hot-Plug 2.5in NVMe (7mm) / 4 SATA3/NVMe drive bays (15mm) , 2 PCI-E x4 connector for 2 M.2
This product is no longer available.
1. 200 CPUs per 42U Rack
2. Quad socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. Intel® C622 chipset
4. 48 DIMMs; up to 12TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
5. 8 Hot-plug 2.5" NVMe (7mm) / 4 SATA3/NVMe drive bays (15mm)
6. Dual 10G onboard and/or 100G EDR InfiniBand/ Intel Omni-Path (Mezzanine card)
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2500 BMC
Extra Specifications for Supermicro SBI-8149P-T8N Blade Barebone Quad Processor
| Motherboard | ||
| Motherboard | Super B11QPi-T | |
| Processor/Cache | ||
| CPU | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | |
| Support CPU TDP up to 165W | ||
| Quad Socket P (LGA 3647) | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors | |
| System Memory | ||
| Memory Capacity | 48 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 12TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| Network Controllers | Dual 10G LAN with Intel® X722 and High speed network options via 25G/50G/100G/EDR Mezzanine card | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2500 BMC | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 13" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 24.2 lbs (11.0 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| Drive Bays | ||
| Hot-swap | 8 Hot-Plug 2.5" NVMe (7mm) / 4 SATA3/NVMe drive bays (15mm) | |
| M.2 | 2 PCI-E x4 connector for 2 M.2 | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| KVM | 1 Front Connector for SMCI KVM Card | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-B11QPi-T -O-P | 1 | Super B11QPi-T Motherboard | |
| Motherboard / Chassis | MCP-680-81001-0N | 1 | 8U 10 SuperBlade Processor Blade chassis | |
| Add-on Card / Module | AOM-8U-KVM-P | 1 | Front Control Board with KVM Connector for B11QPi,RoHS | |
| Backplane | BPN-NVME3-SB810N | 1 | NVMe backplane for 8U 10-node SB810 server, support 4x 2.5-inch SSD per server node | |
| Cable 1 | CBL-SAST-0829-1T | 3 | OcuLink v 1.0,INT,PCIe NVMe SSD, 20CM, Taped, 34AWG,RoHS | |
| Cable 2 | CBL-SAST-0973-1T | 5 | OcuLink v 1.0,INT,PCIe NVMe SSD, 25CM, Taped, 34AWG, RoHS | |
| Hard Drive Tray | MCP-220-00145-0B | 2 | Black 2.5" NVMe Hard Drive Tray, orange button | |
| Air Shroud | MCP-310-41001-0N | 2 | 8U 10 SuperBlade B11QPi Processor Tray Air Shroud |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Heatsink / Retention | SNK-P0067PS | $ 52.00 | 2 | Heatsink for Intel CPU (up to 165W) | ||
| Heatsink / Retention | SNK-P0067PSMB | $ 52.00 | 2 | Heatsink for Intel CPU (up to 165W) | ||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| AOC | AOC-VROCINTMOD | 0 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Networking | AOC-IBH-X4ES-O | $ 895.00 | 1 | Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4 | ||
| Networking | AOC-OPH-WFR-O | 0 | Omni-path mezzanine card, 100Gbps link speed | |||
| Networking | AOC-B25G-X4D-O | $ 179.50 | 0 | SuperBlade 2-port 25GbE Mezzanine Card (Mellanox ConnectX-4 Lx EN) | ||
| Battery Backup Kit | BTR-TFM8G-LSICVM02 | $ 275.00 | 1 | Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit) | ||
| Battery Backup Kit | MCP-240-00127-0N | $ 20.00 | 1 | Broadcom Supercap bracket include screw, same size as 2.5" HDD | ||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Add-on Card / Module | AOM-B-4M | $ 70.50 | 1 | 4 x M.2 NVMe mezzanine card, 4x 110(80) |
