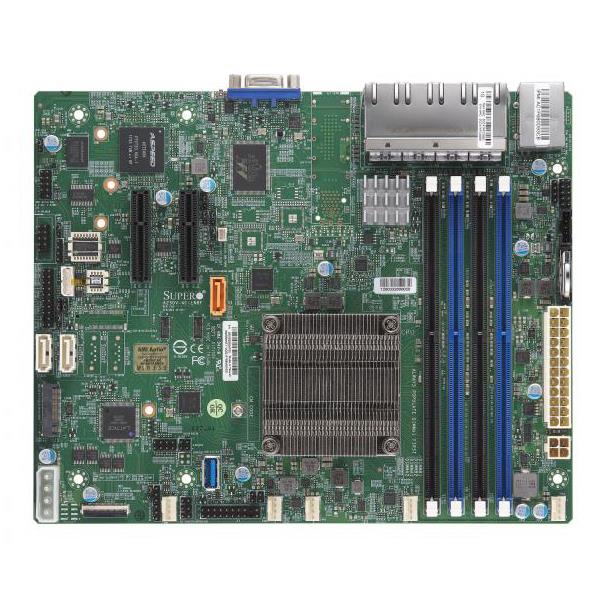

Supermicro A2SDV-4C-LN8F Motherboard Intel Atom processor C3558 4-Core, SoC, up to 256GB Reg ECC DDR4-2133Mhz in 4 memory slots, 8 1GbE, 3-port SATA3

• 8x GbE ports; IPMI w/ dedicated LAN
• SoC controller for 3 SATA3 (6 Gbps) ports
• Up to 256GB Registered ECC; in 4 DIMM slots
• Intel Atom Processor C3558 - 4 cores; 4 threads

Motherboard Intel Atom processor C3558 4-Core, SoC, up to 256GB Reg ECC DDR4-2133Mhz in 4 memory slots, 8 1GbE, 3-port SATA3, 1 PCIe 3.0 x2, 1 M.2 slot, IPMI 2.0 - MBD-A2SDV-4C-LN8F-O


    427.50427.50427.5USD

    427.50

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • System on Chip
    • 8x 1GbE RJ45 LAN ports
    • 3 SATA3 (6 Gbps) ports
    • Intel Quick Assist Technology
    • Supports 12V DC power input
    • 3 USB 3.0 (2 rear, Type-A), 2 USB 2.0 (2 via headers)
    • I/O: 1 VGA, 1 COM (1 via header), TPM header
    • Expansion slots: 1 PCI-E 3.0 x2 (Slot 6 or 7 option)
    • M.2 Interfaces: 1 B-Key 3042/2280 supports PCI-E 3.0 x2/SATA/USB
    • Intel Atom Processor C3558, Single Socket FCBGA1310 supported, CPU TDP support 16W
    • Up to 256GB Registered ECC DDR4-2133MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2133MHz; in 4 DIMM slots

    Extra Specifications for Supermicro A2SDV-4C-LN8F Motherboard Intel Atom processor C3558 4-Core, SoC, up to 256GB Reg ECC DDR4-2133Mhz in 4 memory slots, 8 1GbE, 3-port SATA3

    Main Specifications
    Device Type Motherboard
    Dimensions (WxDxH) 9" x 7.25" (22.86cm x 18.42cm)
    Form Factor Flex ATX 9.0" x 7.25"
    Processor
    Cache 4 cores, 4 threads / 8MB cache
    Compatible Processors Intel Atom Processor C3558
    Processor Sockets Single Socket FCBGA1310 supported, CPU TDP support 16W
    System Memory
    DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB
    Error Detection Corrects single-bit errors
      Detects double-bit errors (using ECC memory)
    Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2133MHz
      Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
    Memory Type 2400/2133/1866/1600MHz (Operating speed up to 2133MHz)
    Memory Voltage 1.2V
    On-Board Devices
    Chipset System on Chip
    Graphics Aspeed AST2400 BMC
    IPMI ASPEED AST2400 BMC
    Network Controllers Quad LAN with Intel C3000 SoC
      Quad LAN with Intel Ethernet Controller I350-AM4
    SATA SoC controller for 3 SATA3 (6 Gbps) ports
    Input / Output
    LAN 8 RJ45 Gigabit Ethernet LAN ports
      1 RJ45 Dedicated IPMI LAN port
    Serial Port / Headers 1 COM Port (1 header)
    TPM TPM Header
    USB 2 USB 2.0 ports (2 headers)
      3 USB 3.0 ports (2 rear + 1 Type A)
    VGA 1 VGA port
    Expansion / Connectivity
    Expansion Slots Total (Free) M.2: Key: B-Key
      PCI-E: 1 PCI-E 3.0 x2 (in x4 slot)
      PCI-E: Option for Slot 6 or Slot 7
      M.2: M.2 Interface: 1 SATA/PCI-E 3.0 x2/USB 3.0
      M.2: Form Factor: 3042, 2280
    System BIOS
    BIOS Features UEFI 2.4, SMBIOS 2.7.1
    BIOS Type AMI UEFI
    Management
    Power Configurations ATX Power connector
      +12V DC Power Input
      CPU thermal trip support for processor protection
      Power-on mode for AC power recovery
    Software IPMI2.0, NMI, SuperDoctor 5, Watchdog
    PC Health Monitoring
    FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control
    LED UID/Remote UID
    Other Features 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, UID
    Temperature CPU thermal trip support
    Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 -fan status, Chassis intrusion header, VBAT
    Environmental Standards
    Operating Temperature Operating Temperature Range: 0°C ~ 60°C (32°F ~ 140°F)
      Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F)
      Operating Relative Humidity Range: 10% ~ 85% (non-condensing)
      Non-Operating Relative Humidity Range: 10% ~ 95% (non-condensing)
    Chassis Optimized for
    1U Chassis SCE300-LED, SC504-203B, SC505-203B
    Parts List
    I/O Cables 3x CBL-0044L
    I/O Shield 1x MCP-260-00133-0N
    Motherboard 1x MBD-A2SDV-4C-LN8F
    QRG 1x MNL-2113-QRG
    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (DOA)
    Provider:Manufacturer
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or Repair
    Average Service Time:Overnight Replacement for 120 days, 2 weeks afterwards
