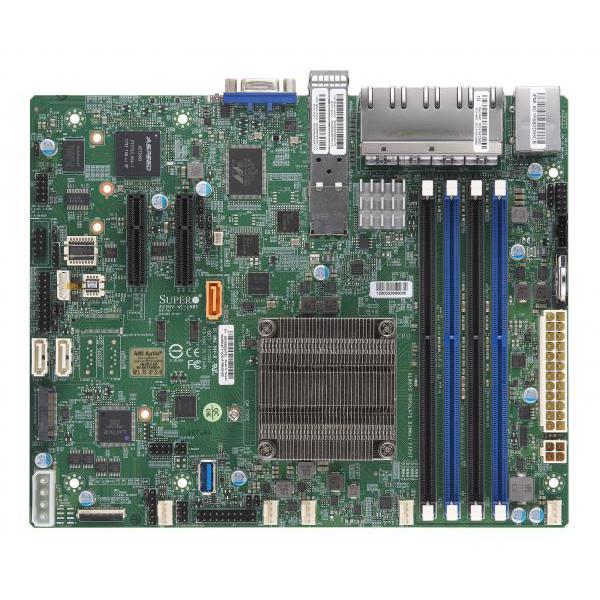

Supermicro A2SDV-4C-LN10PF Motherboard Intel Atom processor C3558 4-Core

• Flexible I/O - software configurable in BIOS
• Up to 256GB-DDR4-2133MHz in 4 DIMM slots
• Intel Atom Processor C3558 - 4 cores; 4 threads
• Eight 1GbE RJ45; Dual 1GbE SFP; 1x IPMI LAN ports

Motherboard Intel Atom processor C3558 4-Core, SoC, up to 256GB Reg ECC DDR4-2133Mhz in 4 memory slots, 8 1GbE, 2 1GbE SFP, 3-port SATA3, 1 PCIe 3.0 x2, 1 M.2 slot, IPMI 2.0 - MBD-A2SDV-4C-LN10PF-O


    458.50458.50458.5USD

    458.50

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • System on Chip
    • Supports 12V DC power input
    • Intel Quick Assist Technology
    • Up to 3 SATA3 (6 Gbps) ports via SoC
    • Flexible I/O - software configurable in BIOS
    • I/O: 1 VGA, 1 COM (1 via header), TPM header
    • 8x 1GbE RJ45 LAN ports, 2x 1GbE SFP LAN ports
    • M.2 Interfaces: 1 B-Key 3042/2280 supports PCI-E 3.0 x2/SATA/USB
    • Intel Atom Processor C3558, Single Socket FCBGA1310 supported, CPU TDP support 16W
    • Expansion slots: 1 PCI-E 3.0 up to x2 (Slot 6 or 7 option), Flexible I/O - software configurable in BIOS
    • Up to 256GB Registered ECC DDR4-2133MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2133MHz; in 4 DIMM slots

    Extra Specifications for Supermicro A2SDV-4C-LN10PF Motherboard Intel Atom processor C3558 4-Core

    Main Specifications
    Device Type Motherboard
    Dimensions (WxDxH) 9" x 7.25" (22.86cm x 18.42cm)
    Form Factor Flex ATX 9.0" x 7.25"
    Processor
    Cache 4 cores, 4 threads / 8MB cache
    Compatible Processors Intel Atom Processor C3558
    Processor Sockets Single Socket FCBGA1310 supported, CPU TDP support 16W
    System Memory
    DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB
    Error Detection Corrects single-bit errors
      Detects double-bit errors (using ECC memory)
    Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2133MHz
      Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
    Memory Type 2400/2133/1866/1600MHz (Operating speed up to 2133MHz)
    Memory Voltage 1.2V
    On-Board Devices
    Chipset System on Chip
    Graphics Aspeed AST2400 BMC
    IPMI ASPEED AST2400 BMC
    Network Controllers Quad LAN with Intel C3000 SoC
      Quad LAN with Intel Ethernet Controller I350-AM4
      Dual LAN with Intel I210-IS 1G SFP
    SATA Up to 3 SATA3(6 Gbps) ports via SoC. *Number of SATA ports is configurable in BIOS: 1 or 3. One SATA port is available when PCI-E x2 expansion slot is enabled.
    Input / Output
    LAN 8 RJ45 Gigabit Ethernet LAN ports
      2 1G SFP LAN ports
      1 RJ45 Dedicated IPMI LAN port
    Serial Port / Headers 1 COM Port (1 header)
    TPM TPM Header
    USB 2 USB 2.0 ports (2 headers)
      3 USB 3.0 ports (2 rear + 1 Type A)
    VGA 1 VGA port
    Chassis Optimized for
    1U Chassis SC505-203B, SC504-203B
    Environmental Standards
    Non-operating Relative Humidity 10% ~ 95% (non-condensing)
    Non-operating Temperature -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity 10% ~ 85% (non-condensing)
    Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
    Expansion / Connectivity
    Expansion Slots Total (Free) PCI-E: 1 PCI-E 3.0 up to x2 (in x4 slot)
      PCI-E: Number of PCI-E lane (option for Slot 6 or Slot 7) is configurable in BIOS: 0 or 2. PCI-E expansion slot is disabled when number of SATA ports is set to 3.
      M.2: M.2 Interface: 1 SATA/PCI-E 3.0 x2/USB 3.0
      M.2: Form Factor: 3042, 2280
      M.2: Key: B-Key
    System BIOS
    BIOS Features UEFI 2.4, SMBIOS 2.7.1
    BIOS Type AMI UEFI
    Management
    Power Configurations ATX Power connector
      +12V DC Power Input
      CPU thermal trip support for processor protection
      Power-on mode for AC power recovery
    Software IPMI2.0, NMI, SuperDoctor 5, Watchdog
    PC Health Monitoring
    FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control
    LED UID/Remote UID
    Other Features 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, UID
    Temperature CPU thermal trip support
    Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 -fan status, Chassis intrusion header, VBAT
    Parts List
    I/O Cables 3x CBL-0044L
    I/O Shield 1x MCP-260-00133-0N
    Motherboard 1x MBD-A2SDV-4C-LN10PF
    QRG 1x MNL-2113-QRG
    NamePart NumberQuantityDescription

    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (doa)
    Provider:Supermicro
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
