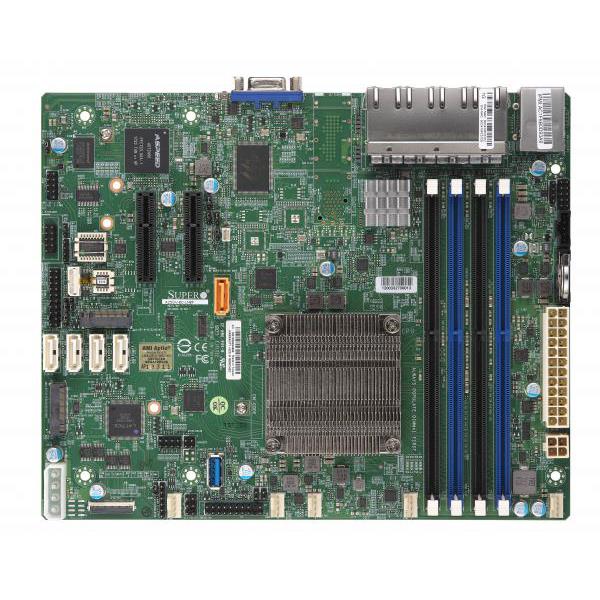

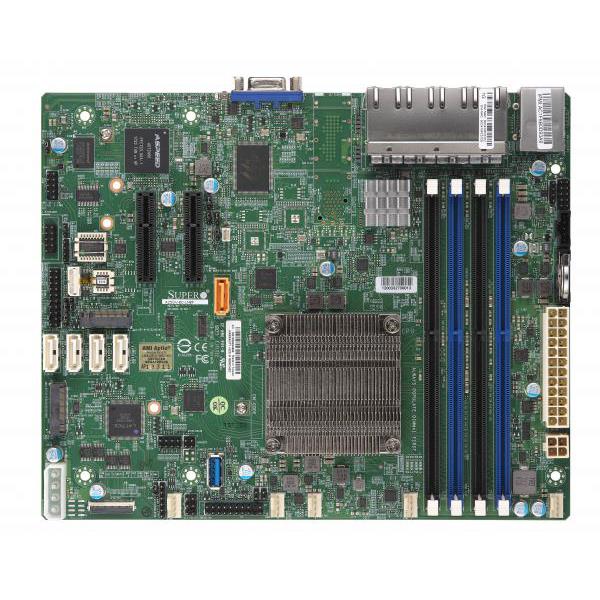

Supermicro A2SDV-8C-LN8F Motherboard Intel Atom processor C3758 8-Core, SoC, up to 256GB Reg ECC DDR4-2400Mhz in 4 memory slots, 8 1GbE, 5-port SATA3

• 4 DIMM slots; 1 PCI-E Add-on card
• Up to 256GB Registered ECC; in 4 DIMM slots
• 8x GbE LAN ports; 1x Dedicated IPMI LAN port
• Intel Atom Processor C3758 with 8 cores; 8 threads

Motherboard Intel Atom processor C3758 8-Core, SoC, up to 256GB Reg ECC DDR4-2400Mhz in 4 memory slots, 8 1GbE, 5-port SATA3, 1 PCIe 3.0 x4, 2 M.2 slots, IPMI 2.0 - MBD-A2SDV-8C-LN8F-O



    Option not available


    This combination does not exist.

    Add to Cart

    • System on Chip
    • 8x 1GbE RJ45 LAN ports
    • 5 SATA3 (6 Gbps) ports
    • Supports 12V DC power input
    • Intel Quick Assist Technology
    • 1 PCI-E 3.0 x4 (Slot 6 or 7 option)
    • 1 M-Key 2242/80 supports PCI-E 3.0 x2/SATA
    • 1 B-Key 3042/2280 supports PCI-E 3.0 x2/SATA/USB
    • I/O: 1 VGA, 1 COM (1 via header), TPM header
    • 3 USB 3.0 (2 rear, Type-A), 2 USB 2.0 (2 via headers)
    • Intel Atom Processor C3758, Single Socket FCBGA1310 supported, CPU TDP support 25W
    • Up to 256GB Registered ECC DDR4-2400MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots

    Extra Specifications for Supermicro A2SDV-8C-LN8F Motherboard Intel Atom processor C3758 8-Core, SoC, up to 256GB Reg ECC DDR4-2400Mhz in 4 memory slots, 8 1GbE, 5-port SATA3

    Main Specifications
    Device Type Motherboard
    Dimensions (WxDxH) 9" x 7.25" (22.86cm x 18.42cm)
    Form Factor Flex ATX 9.0" x 7.25"
    Cache 8 cores, 8 threads / 16MB cache
    Compatible Processors Intel Atom Processor C3758
    Processor Sockets Single Socket FCBGA1310 supported, CPU TDP support 25W
    System Memory
    DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB
    Error Detection Corrects single-bit errors
      Detects double-bit errors (using ECC memory)
    Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
      Up to 256GB Registered ECC RDIMM, DDR4-2400MHz
    Memory Type 2400/2133/1866/1600MHz
    Memory Voltage 1.2V
    On-Board Devices
    Chipset System on Chip
    Graphics Aspeed AST2400 BMC
    Network Controllers Quad LAN with Intel C3000 SoC
      Quad LAN with Intel Ethernet Controller I350-AM4
    SATA SoC controller for 5 SATA3 (6 Gbps) ports
    Input / Output
    LAN 8 RJ45 Gigabit Ethernet LAN ports
      1 RJ45 Dedicated IPMI LAN port
    Serial Port / Headers 1 COM Port (1 header)
    TPM TPM Header
    USB 2 USB 2.0 ports (2 headers)
      3 USB 3.0 ports (2 rear + 1 Type A)
    VGA 1 VGA port
    Expansion / Connectivity
    Expansion Slots Total (Free) 1 PCI-E 3.0 x4
      Option for Slot 6 or Slot 7
    M.2 (Free) 1 M.2 M-Key SATA/PCI-E 3.0 x2, 2242/2280
      1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 3042/2280
    System BIOS
    BIOS Features UEFI 2.4, SMBIOS 2.7.1
    Power Configurations ATX Power connector
      +12V DC Power Input
      CPU thermal trip support for processor protection
      Power-on mode for AC power recovery
    Software IPMI2.0, NMI, SuperDoctor 5, Watchdog
    PC Health Monitoring
    FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control
    LED UID/Remote UID
    Other Features 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, UID
    Temperature CPU thermal trip support
    Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 -fan status, Chassis intrusion header, VBAT
    Environmental Standards
    Non-operating Relative Humidity 10% ~ 95% (non-condensing)
    Non-operating Temperature -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity 10% ~ 85% (non-condensing)
    Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
    Chassis Optimized for
    1U Chassis SCE300-LED, SC504-203B, SC505-203B
    Parts List
    I/O Cables 5x CBL-0044L
    I/O Shield 1x MCP-260-00133-0N
    Motherboard 1x MBD-A2SDV-8C-LN8F
    Plastic Standoff 1x FST-SCRW-0010
    QRG 1x MNL-2113-QRG
    NamePart NumberQuantityDescription
    NamePart NumberQuantityDescription
