- Supermicro A2SDV-8C-LN10PF Motherboard Intel Atom processor C3758 8-Core

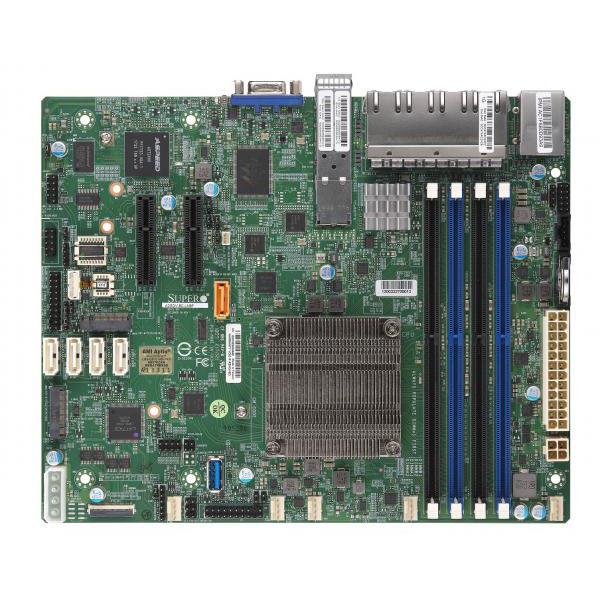

Supermicro A2SDV-8C-LN10PF Motherboard Intel Atom processor C3758 8-Core
Includes 8× 1 GbE RJ45 + 2× 1 GbE SFP LAN ports
Powered by an 8‑core Intel Atom C3758 processor
Supports up to 256 GB DDR4 ECC memory in 4 DIMM slots
Features 5× SATA3 and dual M.2 slots for flexible storage
Motherboard Intel Atom processor C3758 8-Core, SoC, up to 256GB Reg ECC DDR4-2400Mhz in 4 memory slots, 8 1GbE, 2 1GbE SFP, 5 SATA3, 1 PCIe 3.0 x4, 2 M.2 slots, IPMI 2.0 - MBD-A2SDV-8C-LN10PF-O
1. Supports 12V DC power input
2. Intel® Atom® Processor C3758, Single Socket FCBGA1310 supported, CPU TDP support 25W
3. Intel Quick Assist Technology
4. Up to 256GB Registered ECC DDR4-2400MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
5. M.2 Interfaces: 1 M-Key 2242/80 supports PCIe 3.0 x2/SATA 1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
6. Expansion slots: 1 PCIe 3.0 x4 (Slot 6 or 7 option)
7. 8x 1GbE RJ45 LAN ports 2x 1GbE SFP LAN ports
8. 5 SATA3 (6 Gbps) ports
9. System on Chip
10. I/O: 1 VGA, 1 COM (1 via header), TPM header
11. 3 USB 3.0 (2 rear, Type-A) 2 USB 2.0 (2 via headers)
Extra Specifications for Supermicro A2SDV-8C-LN10PF Motherboard Intel Atom processor C3758 8-Core
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 256GB ECC RDIMM, DDR4-2400MHz; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz | ||
| Memory Type | 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Quad LAN with Intel® Ethernet Controller I350-AM4 | |
| Quad LAN with Intel® C3000 SoC | ||
| Dual LAN with Intel® I210-IS 1G SFP | ||
| SATA | SoC controller for 5 SATA3 (6 Gbps) ports | |
| IPMI | ASPEED AST2400 BMC | |
| Graphics | 1 ASPEED AST2400 BMC port(s) | |
| Input / Output | ||
| LAN | 8 RJ45 Gigabit Ethernet LAN ports | |
| 2 1G SFP LAN ports | ||
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 2.0 port(s) (2 via header) | ||
| 1 USB 3.2 Gen1 port(s) (1 type A) | ||
| Video Output | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| DOM | 1 Super DOM (Disk on Module) ports | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| SMBIOS 2.7.1 | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection | |
| Software | SuperDoctor® 5, NMI, IPMI2.0 , Watchdog | |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | 5 fans with tachometer status monitoring | |
| Dual Cooling Zone | ||
| Fan speed control | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| LED | UID/Remote UID | |
| Other Features | UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, Intel® QuickAssist Technology, 4-pin 12v DC power connector | |
| Voltage | VBAT, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V | |
| Temperature | CPU thermal trip support | |
| Product SKUs | ||
| Product SKUs | MBD-A2SDV-8C-LN10PF | |
| Physical Stats | ||
| Form Factor | Flex ATX | |
| Dimension | 9" x 7.25" (22.86cm x 18.42cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor C3758 | |
| Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP | ||
| Core | Up to 8 cores, 8 threads / 16MB Cache | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x4 | |
| Option for Slot 6 or Slot 7 | ||
| M.2 | Key: M-Key, B-Key | |
| M.2 Interface: 1 SATA/PCIe 3.0 x2; 1 SATA/PCIe 3.0 x2/USB 3.0 | ||
| Form Factor: 2242/2280, 3042/2280 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
