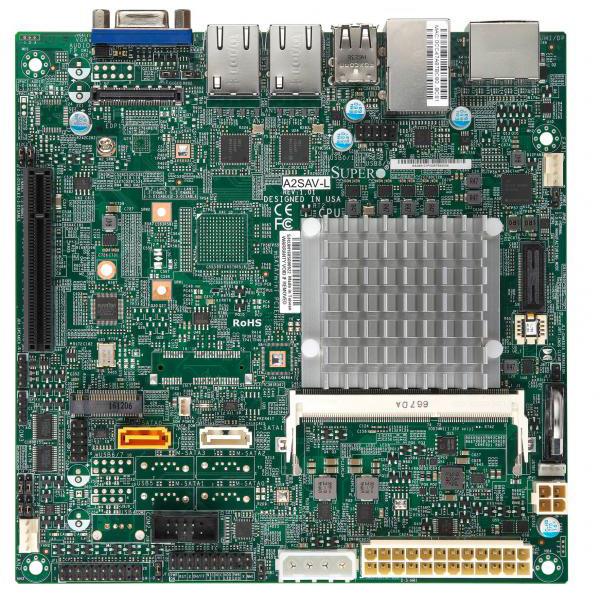

Supermicro A2SAV-2C-L Motherboard Intel Atom processor E3930, SoC, up to 8GB DDR3L SO-DIMM 1866MHz Non-ECC in 1 memory slots

• Dual GbE LAN with Intel i210-AT
• Intel HD Graphic 3 independent displays
• Up to 8GB 1866MHz; SO-DIMM in 1 socket
• Intel Atom processor E3930 w/ 2-Cores; 2 Threads

Motherboard Intel Atom processor E3930, SoC, up to 8GB DDR3L SO-DIMM 1866MHz Non-ECC in 1 memory slots, 2x 1GbE, 2x SATA3 ports, 1 PCIe 2.0 24, 1 M.2 slot, - MBD-A2SAV-2C-L-O


    202.50202.50202.5USD

    202.50

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • 1 M.2 M-key with SATA
    • 1 PCI-E 2.0 x2 (in x8), and 2 SATA 3.0
    • Dual GbE LAN with Intel i210-AT
    • 12V DC Input and ATX Power Source
    • Intel Atom processor E3930 (6.5W, 2C)
    • Intel Goldmont microarchitecture 14nm System-on-Chip
    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector
    • 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays

    Extra Specifications for Supermicro A2SAV-2C-L Motherboard Intel Atom processor E3930, SoC, up to 8GB DDR3L SO-DIMM 1866MHz Non-ECC in 1 memory slots

    Main Specifications
    Device Type Motherboard
    Dimensions (WxDxH) 6.7" x 6.7" (17.02cm x 17.02cm)
    Form Factor Mini-ITX
    Processor
    Compatible Processors Intel Atom Processor E3930
    Processor Sockets Socket FCBGA1296 supported
    System Memory
    DIMM Sizes 2GB, 4GB, 8GB
    Memory Capacity Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    Memory Type DDR3L up to 1866Mhz 8GB
    Memory Voltage 1.35V
    On-Board Devices
    Chipset System on Chip
    Graphics Intel HD Graphics
    Network Controllers Dual LAN with Intel Ethernet Controller I210IT
    SATA SoC controller for 2 SATA3 (6 Gbps) ports
    Input / Output
    Others 1x COM in RJ45, 1X COM in RS232, and 1X COM in RS485
    Serial Port / Headers 3 COM Ports (1 rear, 2 headers)
    USB 4 USB 2.0 ports (2 rear + 2 headers)
      2 USB 3.0 ports (2 rear)
    Video Output 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port, 1 eDP (Embedded DisplayPort) port
    Expansion / Connectivity
    Expansion Slots Total (Free) 1 PCI-E 2.0 x2 (in x8 slot)
    M.2 (Free) Form Factor: 2242, 2280
    System BIOS
    BIOS Type AMI UEFI
    Management
    Power Configurations ACPI Power Management
    Software SuperDoctor 5, Watchdog
    PC Health Monitoring
    FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, PWM fan speed control
    LED N/A
    Other Features 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL
    Temperature N/A
    Voltage +12V, +5V, +5V standby
    Environmental Standards
    Non-operating Relative Humidity 10% ~ 95% (non-condensing)
    Non-operating Temperature -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity 8% - 90% (non-condensing)
    Operating Temperature -30°C - 70°C (-22°F - 158°F)
    Parts List
    I/O Cables 2x CBL-0044L
    I/O Shield 1x MCP-260-00058-0N
    Motherboard 1x MBD-A2SAV-2C-L
    NamePart NumberQuantityDescription
