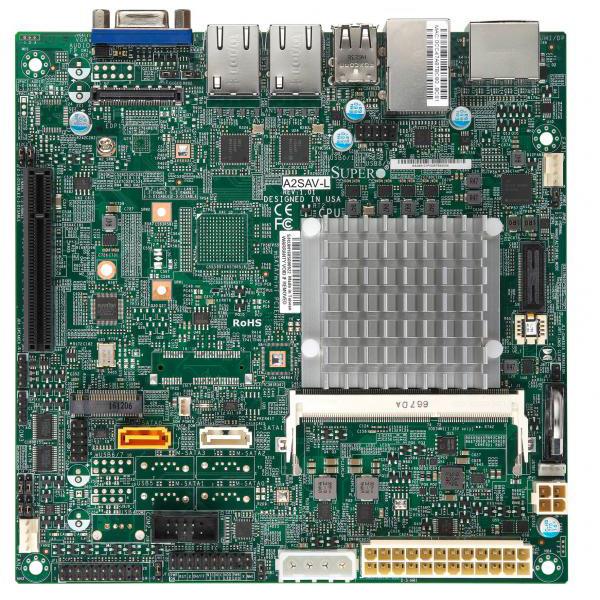

Supermicro A2SAV-2C-L Motherboard Intel Atom processor E3930, SoC, up to 8GB DDR3L SO-DIMM 1866MHz Non-ECC in 1 memory slots

Powered by Intel Atom E3930 2‑core low‑power processor
Includes dual 1 GbE LAN ports for reliable network connectivity
Supports up to 8 GB 1866 MHz DDR3L memory in a single SO‑DIMM
Features 2× SATA3 (6 Gbps) ports and 1× M.2 slot for storage expandability

Motherboard Intel Atom processor E3930, SoC, up to 8GB DDR3L SO-DIMM 1866MHz Non-ECC in 1 memory slots, 2x 1GbE, 2x SATA3 ports, 1 PCIe 2.0 24, 1 M.2 slot, - MBD-A2SAV-2C-L-O

1. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
2. Intel® Atom processor E3930 (6.5W, 2C)
3. 1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
4. Dual GbE LAN with Intel® i210-AT
5. Intel® Goldmont microarchitecture 14nm System-on-Chip
6. 1 M.2 M-key with SATA
7. 12V DC Input and ATX Power Source
8. 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
9. 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector

Extra Specifications for Supermicro A2SAV-2C-L Motherboard Intel Atom processor E3930, SoC, up to 8GB DDR3L SO-DIMM 1866MHz Non-ECC in 1 memory slots

System Memory
DIMM Sizes	2GB, 4GB, 8GB
Memory Capacity	Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
Memory Voltage	1.35V
Memory Type	1866 MT/s DDR3L up to 8GB
On-Board Devices
Chipset	System on Chip
Network Controllers	Dual LAN with Intel® Ethernet Controller I210IT
SATA	SoC controller for 2 SATA3 (6 Gbps) ports
Graphics	1 Intel® HD Graphics port(s)
Input / Output
Others	1 COM in RJ45
	1 COM in RS232
	1 COM in RS485
Video Output	1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
USB	2 USB 3.0 port(s) (2 rear)
	4 USB 2.0 port(s) (2 rear; 2 via header)
Serial Port	3 COM Port(s) (1 rear; 2 header)
System BIOS
BIOS Type	AMI UEFI
Management
Power Configurations	ACPI Power Management
Software	SuperDoctor® 5, Watchdog
PC Health Monitoring
FAN	Low noise fan speed control
	Fan speed control
	PWM fan speed control
	2x 4-pin fan headers (up to 2 fans)
Other Features	WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
Voltage	+5V standby, +5V, +12V
Product SKUs
Product SKUs	MBD-A2SAV-2C-L
Physical Stats
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU	Intel® Atom® Processor E3930
Expansion Slots
PCIe	1 PCIe 2.0 x2 (in x8 slot)
M.2	Double Height Connector
	Form Factor: 2280, 2242
Operating Environment
Operating Temperature Range	-30°C - 70°C (-22°F - 158°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
