| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Capacity | 2 DIMM slots |
| Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz |
| Memory Type | 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® H310 |
| Graphics | 1 Intel® HD Graphics port(s) |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Intel® PHY I219LM LAN controller |
| SATA | Intel® H310 controller for 4 SATA3 (6 Gbps) ports |
| Audio | 7.1 HD Audio |
| Input / Output |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s), 1 eDP (Embedded DisplayPort) port(s) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 4 USB 3.1 Gen1 port(s) (2 rear type A; 2 rear type C) |
| Serial Port | 6 COM Port(s) (6 header) |
| DOM | 1 Super DOM (Disk on Module) port with build power |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | PCI FW 3.0 |
| ACPI 6.1 |
| SMBIOS 3.1 |
| UEFI 2.6 |
| Management |
| Power Configurations | ACPI Power Management, ATX Power connector |
| Software | SuperDoctor® 5, NMI, Watchdog |
| System Management Software | SuperDoctor 5 |
| PC Health Monitoring |
| FAN | Fan speed control |
| 4x 4-pin fan headers (up to 4 fans) |
| 4 fans with tachometer monitoring |
| LED | Power LED |
| Other Features | Chassis intrusion header |
| WOL |
| RoHS |
| ACPI power management |
| ATX Power connector |
| Voltage | VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 1.2V (VDIMM), +5V, +3.3V, +12V, Memory Voltages |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Product SKUs |

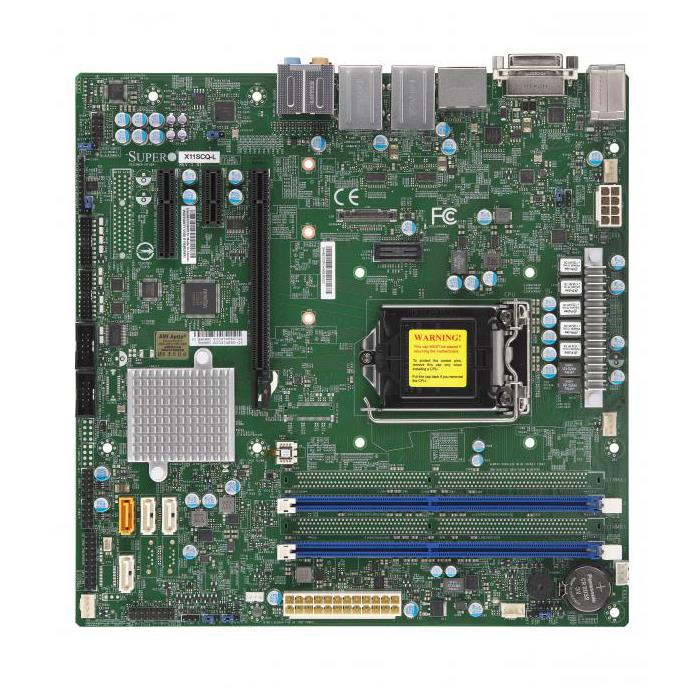

| Product SKUs | MBD-X11SCQ-L |
| Physical Stats |
| Form Factor | uATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP |
| 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x16 |
| 1 PCIe 2.0 x4 |
| 1 PCIe 2.0 x1 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
