| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Capacity | 2 DIMM slots |
| Up to 64GB Unbuffered non-ECC SODIMM, DDR4-2666MHz |
| Memory Type | non-ECC DDR4 SODIMM Unbuffered |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® Q370 |
| Graphics | 1 Intel® HD Graphics port(s) |
| 3 Independent Displays, HDMI 2.0 |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Intel® PHY I219LM LAN controller |
| SATA | Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Input / Output |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s), 1 eDP (Embedded DisplayPort) port(s) |
| USB | 4 USB 2.0 port(s) (4 via header) |
| 10 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A; 4 rear; 2 rear type C) |
| USB 3.1 Gen 2 |
| Serial Port | 6 COM Port(s) (4 header; 2 rear), 4COM port support RS-232 thru pin header; 2COM support RS-232/422/485 in rear |
| DOM | 1 Super DOM (Disk on Module) port with build power |
| TPM | 1 TPM Header & Chip both |
| System BIOS |
| BIOS Features | PCI FW 3.0 |
| ACPI 6.1 |
| SMBIOS 3.1 |
| UEFI 2.6 |
| RTC Wakeup BIOS setup option |
| BIOS Type | AMI UEFI |
| Management |
| Power Configurations | ATX Power connector, +12V DC Power Input |
| Software | SuperDoctor® 5, NMI, AMT, vPro, Watchdog |
| System Management Software | SuperDoctor 5 |
| PC Health Monitoring |
| FAN | 3x 4-pin fan headers (up to 3 fans) |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, 3 fans with tachometer monitoring, Overheat LED indication |
| LED | CPU / System Overheat LED |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| Voltage | VBAT, System temperature, System level control, HT, 3 -fan status, +5V standby, +5V, +3.3V, +1.8V |
| Temperature | PECI |
| Product SKUs |

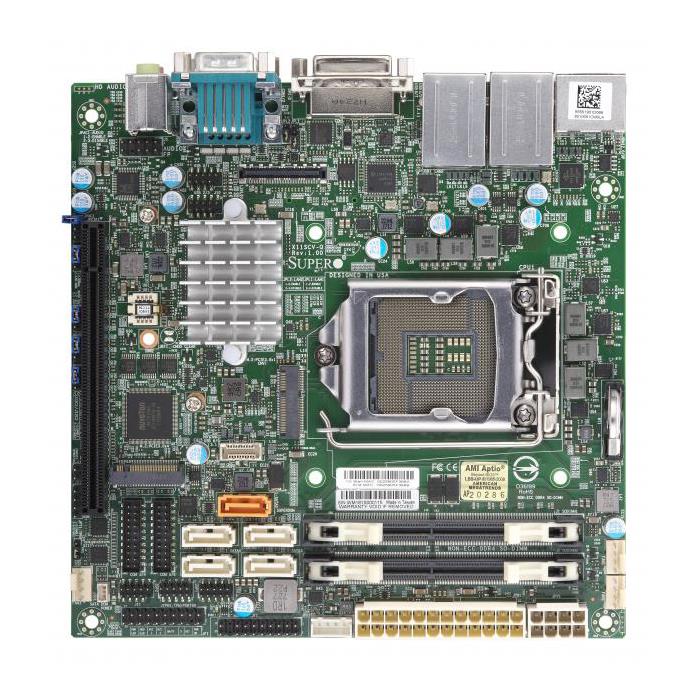

| Product SKUs | MBD-X11SCV-Q |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| CPU | 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 65W TDP |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x16 |
| M.2 | Form Factor: 2230, 2242/2280 |
| Key: E-Key, M-Key |
| M.2 Interface: 1 CNVi/PCIe 3.0 x1; 1 PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -30°C - 60°C (-22°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
