- Supermicro X11SCV-Q Motherboard Mini-ITX Single Socket H4 (LGA 1151)

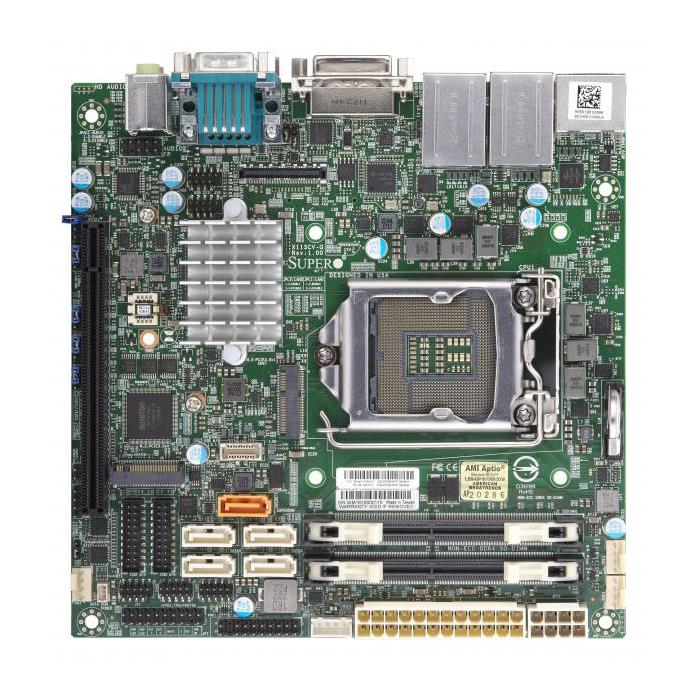

Supermicro X11SCV-Q Motherboard Mini-ITX Single Socket H4 (LGA 1151)
Up to 64GB SODIMM DDR4-2666MHz in 2 DIMM slots
Supports 8th/9th Generation Intel Core i9/i7/i5/i3 Processor
Intel Q370 controller for 5 SATA3 (6 Gbps) ports RAID 0,1,5,10
On-Board 2 RJ45 Gigabit Ethernet LAN ports, 1 SuperDOM, 1 TPM
Motherboard Mini-ITX Single Socket H4 (LGA 1151) for Intel 8th Generation Intel Core Processors - supports up to 32GB Unbuffered non-ECC DDR4-2666Mhz SODIMM in 2 memory slots, Intel Q370 chipset, onboard 5 SATA3 ports with RAID 0,1,5,10, 2x 1GbE LAN port, Audio, VGA, 10 USB, 1x PCIe 3.0 x16, 1x M.2 interface - MBD-X11SCV-Q-O
1. 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP
2. Intel® Q370
3. Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller
4. Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots
5. 1 PCIe 3.0 x16 1 M.2 M-Key PCIe 3.0 x4, 2242/2280 1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230
6. Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10
7. 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port, 3 Independent Displays, HDMI 2.0
Extra Specifications for Supermicro X11SCV-Q Motherboard Mini-ITX Single Socket H4 (LGA 1151)
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Memory Capacity | 2 DIMM slots | |
| Up to 64GB Unbuffered non-ECC SODIMM, DDR4-2666MHz | ||
| Memory Type | non-ECC DDR4 SODIMM Unbuffered | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® Q370 | |
| Graphics | 1 Intel® HD Graphics port(s) | |
| 3 Independent Displays, HDMI 2.0 | ||
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT | |
| Single LAN with Intel® PHY I219LM LAN controller | ||
| SATA | Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10 | ||
| Audio | ALC 888S HD Audio | |
| Input / Output | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s), 1 eDP (Embedded DisplayPort) port(s) | |
| USB | 4 USB 2.0 port(s) (4 via header) | |
| 10 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A; 4 rear; 2 rear type C) | ||
| USB 3.1 Gen 2 | ||
| Serial Port | 6 COM Port(s) (4 header; 2 rear), 4COM port support RS-232 thru pin header; 2COM support RS-232/422/485 in rear | |
| DOM | 1 Super DOM (Disk on Module) port with build power | |
| TPM | 1 TPM Header & Chip both | |
| System BIOS | ||
| BIOS Features | PCI FW 3.0 | |
| ACPI 6.1 | ||
| SMBIOS 3.1 | ||
| UEFI 2.6 | ||
| RTC Wakeup BIOS setup option | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | ATX Power connector, +12V DC Power Input | |
| Software | SuperDoctor® 5, NMI, AMT, vPro, Watchdog | |
| System Management Software | SuperDoctor 5 | |
| PC Health Monitoring | ||
| FAN | 3x 4-pin fan headers (up to 3 fans) | |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, 3 fans with tachometer monitoring, Overheat LED indication | ||
| LED | CPU / System Overheat LED | |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source | |
| Voltage | VBAT, System temperature, System level control, HT, 3 -fan status, +5V standby, +5V, +3.3V, +1.8V | |
| Temperature | PECI | |
| Product SKUs | ||
| Product SKUs | MBD-X11SCV-Q | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor | ||
| CPU | 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor | |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 65W TDP | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x16 | |
| M.2 | Form Factor: 2230, 2242/2280 | |
| Key: E-Key, M-Key | ||
| M.2 Interface: 1 CNVi/PCIe 3.0 x1; 1 PCIe 3.0 x4 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -30°C - 60°C (-22°F - 140°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
