- Supermicro X11SDV-12C-TLN2F Motherboard Mini-ITX Intel Xeon D-2166NT, 12-Core SoC (System on Chip)

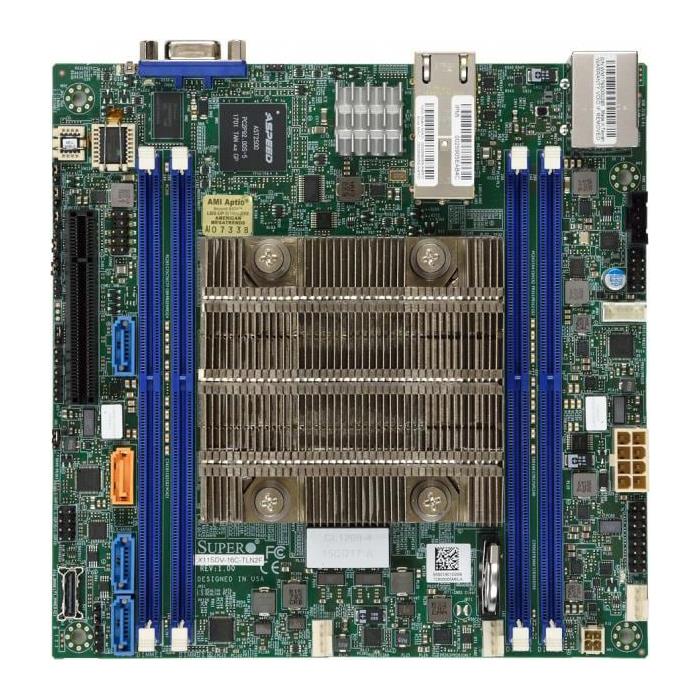

Supermicro X11SDV-12C-TLN2F Motherboard Mini-ITX Intel Xeon D-2166NT, 12-Core SoC (System on Chip)
Powered by an Intel Xeon D‑2166NT 12‑core processor
Includes up to 8 SATA3 (6Gbps) ports via SoC controller
Optimized for compact servers, networking, and storage appliances
Features dual 10GBase‑T LAN ports for high‑speed connectivity
Motherboard Mini-ITX Intel Xeon D-2166NT, 12-Core SoC (System on Chip), up to 256GB ECC Reg DDR4 memory, 8 SATA3 RAID 0,1,5,10, 2-port 10GbE, IPMI, VGA, TPM - MBD-X11SDV-12C-TLN2F (Retail Box)
1. 12V DC or ATX Power Input
2. Intel® Xeon® Processor D-2166NT, 12-Core, 24 Threads, 85W
3. Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots
4. 1 PCIe 3.0 x8 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink
5. Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIe 3.0 x4 for NVMe)
6. Dual LAN with 10GBase-T via Intel® SoC
7. System on Chip
8. 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header)
Extra Specifications for Supermicro X11SDV-12C-TLN2F Motherboard Mini-ITX Intel Xeon D-2166NT, 12-Core SoC (System on Chip)
| System Memory | ||
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB | |
| LRDIMM: 16GB, 32GB, 64GB, 128GB | ||
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 512GB ECC LRDIMM, DDR4-2133MHz; Up to 256GB ECC RDIMM, DDR4-2133MHz | ||
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz) | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with 10Gbase-T | |
| SATA | SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| Input / Output | ||
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 2.0 port(s) (2 via header) | ||
| Video Output | 1 VGA port(s) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.1 | |
| SMBIOS 3.1 | ||
| UEFI 2.6 | ||
| PCI FW 3.2 | ||
| Management | ||
| Power Configurations | ACPI Power Management, +12V DC Power Input | |
| Software | SuperDoctor® 5, SUM , SPM , Intel® Node Manager, SSM , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | Pulse Width Modulated (PWM) fan connectors | |
| Dual Cooling Zone | ||
| Support 3-pin fans (w/o speed control) | ||
| Fan speed control | ||
| 3x 4-pin fan headers (up to 3 fans) | ||
| 3 fans with tachometer monitoring | ||
| LED | UID/Remote UID | |
| Power LED | ||
| BMC/IPMI Heartbeat LED | ||
| Other Features | UID, RoHS, Node Manager Support, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source | |
| Voltage | VBAT, Supports system management utility, Monitors CPU voltages, 3 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages | |
| Temperature | Thermal Control for 3 Fan Connectors | |
| Product SKUs | ||
| Product SKUs | MBD-X11SDV-12C-TLN2F | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.75" x 6.75" (17.15cm x 17.15cm) | |
| Processor | ||
| CPU | Intel® Xeon® Processor D-2166NT | |
| Core | Up to 12 cores, 24 threads / 17MB Cache | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x8 | |
| 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
