| System Memory |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB |
| LRDIMM: 16GB, 32GB, 64GB, 128GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 4 DIMM slots |
| Up to 512GB ECC LRDIMM, DDR4-2400MHz; Up to 256GB ECC RDIMM, DDR4-2400MHz |
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz) |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | System on Chip |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with 10Gbase-T |
| SATA | SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| Input / Output |
| LAN | 2 RJ45 10GBase-T ports |
| 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 2 USB 2.0 port(s) (2 via header) |
| Video Output | 1 VGA port(s) |
| DOM | 1 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.1 |
| SMBIOS 3.1 |
| UEFI 2.6 |
| PCI FW 3.2 |
| Management |
| Power Configurations | ACPI Power Management, +12V DC Power Input |
| Software | SuperDoctor® 5, SUM , SPM , Intel® Node Manager, SSM , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| PC Health Monitoring |
| FAN | Pulse Width Modulated (PWM) fan connectors |
| Dual Cooling Zone |
| Support 3-pin fans (w/o speed control) |
| Fan speed control |
| 3x 4-pin fan headers (up to 3 fans) |
| 3 fans with tachometer monitoring |
| LED | UID/Remote UID |
| Power LED |
| BMC/IPMI Heartbeat LED |
| Other Features | UID, RoHS, Node Manager Support, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| Voltage | VBAT, Supports system management utility, Monitors CPU voltages, 3 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages |
| Temperature | Thermal Control for 3 Fan Connectors |
| Product SKUs |

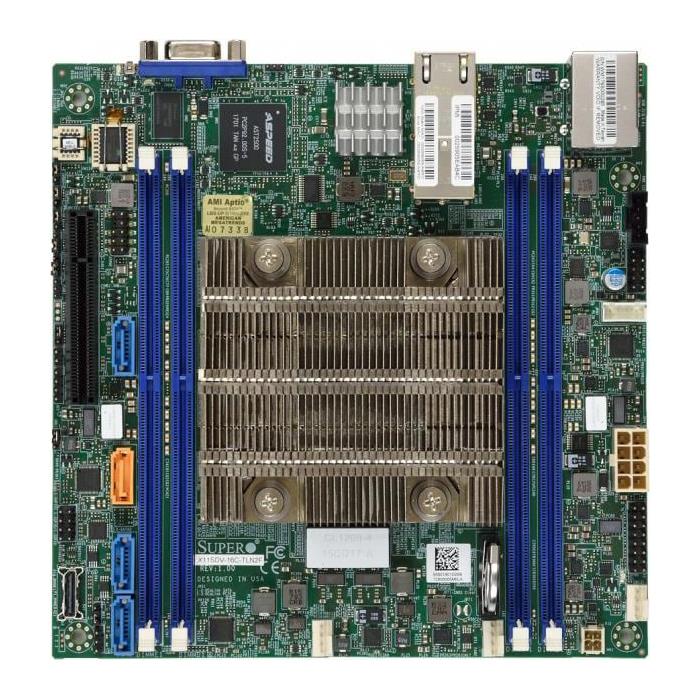

| Product SKUs | MBD-X11SDV-16C-TLN2F |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.75" x 6.75" (17.15cm x 17.15cm) |
| Processor |
| CPU | Intel® Xeon® Processor D-2183IT |
| Core | Up to 16 cores, 32 threads / 22MB Cache |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8 |
| 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
