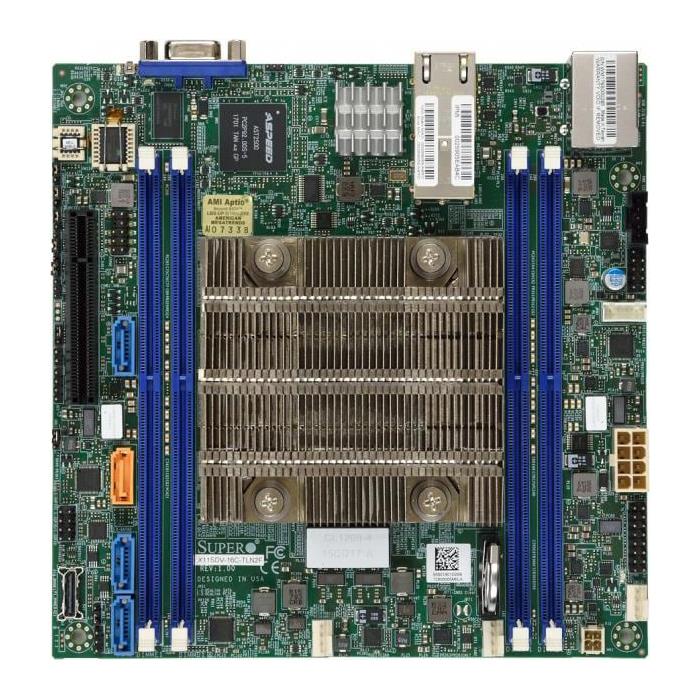

- Supermicro X11SDV-16C-TLN2F Motherboard Mini-ITX Intel Xeon D-2183IT, 16-Core SoC (System on Chip), up to 256GB ECC Reg DDR4 memory
Supermicro X11SDV-16C-TLN2F Motherboard Mini-ITX Intel Xeon D-2183IT, 16-Core SoC (System on Chip), up to 256GB ECC Reg DDR4 memory
Powered by 16‑core Intel Xeon D‑2183IT processor
Includes dual 10GBase‑T LAN ports for high‑speed networking
Supports up to 512 GB DDR4 ECC memory across 4 DIMM slots
Features up to 8 SATA3 (6 Gbps) ports plus PCIe and OCuLink storage options
Motherboard Mini-ITX Intel Xeon D-2183IT, 16-Core SoC (System on Chip), up to 256GB ECC Reg DDR4 memory, 8 SATA3 RAID 0,1,5,10, 2-port 10GbE, IPMI, VGA, TPM - MBD-X11SDV-16C-TLN2F-O (Retail Box)
1. 12V DC or ATX Power Input
2. Intel® Xeon® Processor D-2183IT, 16-Core, 32 Threads, 100W
3. Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots
4. 1 PCIe 3.0 x8 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink
5. Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIe 3.0 x4 for NVMe)
6. Dual LAN with 10GBase-T via Intel® SoC
7. System on Chip
8. 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header)
Extra Specifications for Supermicro X11SDV-16C-TLN2F Motherboard Mini-ITX Intel Xeon D-2183IT, 16-Core SoC (System on Chip), up to 256GB ECC Reg DDR4 memory
| System Memory | ||
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB | |
| LRDIMM: 16GB, 32GB, 64GB, 128GB | ||
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 512GB ECC LRDIMM, DDR4-2400MHz; Up to 256GB ECC RDIMM, DDR4-2400MHz | ||
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz) | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with 10Gbase-T | |
| SATA | SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| Input / Output | ||
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 2.0 port(s) (2 via header) | ||
| Video Output | 1 VGA port(s) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.1 | |
| SMBIOS 3.1 | ||
| UEFI 2.6 | ||
| PCI FW 3.2 | ||
| Management | ||
| Power Configurations | ACPI Power Management, +12V DC Power Input | |
| Software | SuperDoctor® 5, SUM , SPM , Intel® Node Manager, SSM , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | Pulse Width Modulated (PWM) fan connectors | |
| Dual Cooling Zone | ||
| Support 3-pin fans (w/o speed control) | ||
| Fan speed control | ||
| 3x 4-pin fan headers (up to 3 fans) | ||
| 3 fans with tachometer monitoring | ||
| LED | UID/Remote UID | |
| Power LED | ||
| BMC/IPMI Heartbeat LED | ||
| Other Features | UID, RoHS, Node Manager Support, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source | |
| Voltage | VBAT, Supports system management utility, Monitors CPU voltages, 3 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages | |
| Temperature | Thermal Control for 3 Fan Connectors | |
| Product SKUs | ||
| Product SKUs | MBD-X11SDV-16C-TLN2F | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.75" x 6.75" (17.15cm x 17.15cm) | |
| Processor | ||
| CPU | Intel® Xeon® Processor D-2183IT | |
| Core | Up to 16 cores, 32 threads / 22MB Cache | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x8 | |
| 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
