| System Memory |
| DIMM Sizes | LRDIMM: 16GB, 32GB, 64GB, 128GB |
| RDIMM: 16GB, 32GB, 64GB, 128GB |
| Memory Capacity | 4 DIMM slots |
| Up to 512GB ECC LRDIMM, DDR4-2400MHz; Up to 256GB ECC RDIMM, DDR4-2400MHz |
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz) |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | System on Chip |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with 10G SFP+ LAN via SoC |
| Dual LAN with 10Gbase-T |
| Quad LAN with Intel® Ethernet Controller I350-AM4 |
| SATA | SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| Input / Output |
| SATA | 4 SATA3 port(s) |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| 2 RJ45 10GBase-T ports |
| 2 10G SFP+ LAN ports |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 2 USB 2.0 port(s) (2 via header) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| DOM | 1 Super DOM (Disk on Module) port with build power |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | ACPI 6.1 |
| SMBIOS 3.1 |
| UEFI 2.6 |
| PCI FW 3.2 |
| BIOS Type | 128MB UEFI |
| Management |
| Power Configurations | ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection |
| Software | KVM with dedicated LAN, IPMI2.0 , Watchdog |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| PC Health Monitoring |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Overheat LED indication |
| Other Features | RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| Voltage | System level control, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, 5 (4-pin) |
| Product SKUs |

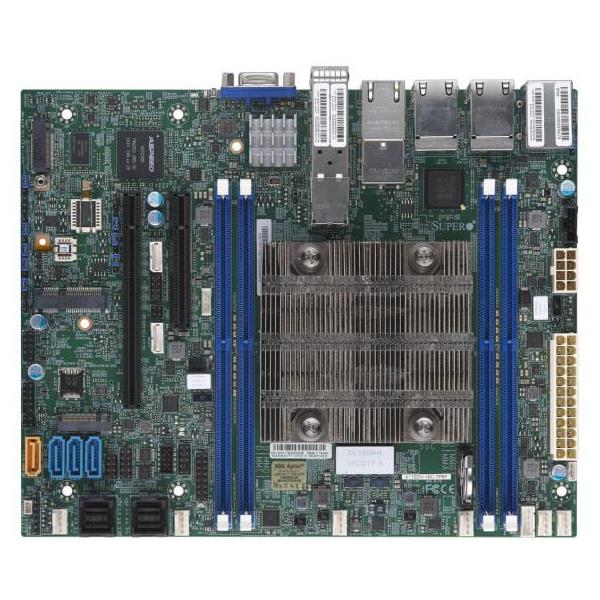

| Product SKUs | MBD-X11SDV-16C-TP8F |
| Physical Stats |
| Form Factor | Flex ATX |
| Dimension | 9" x 7.25" (22.86cm x 18.42cm) |
| Processor |
| CPU | Intel® Xeon® Processor D-2183IT |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8, |
| 1 PCIe 3.0 x16 |
| 1 Mini-PCIe |
| M.2 | Key: M-Key, B-Key |
| M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2 |
| Form Factor: 2280, 3042 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
