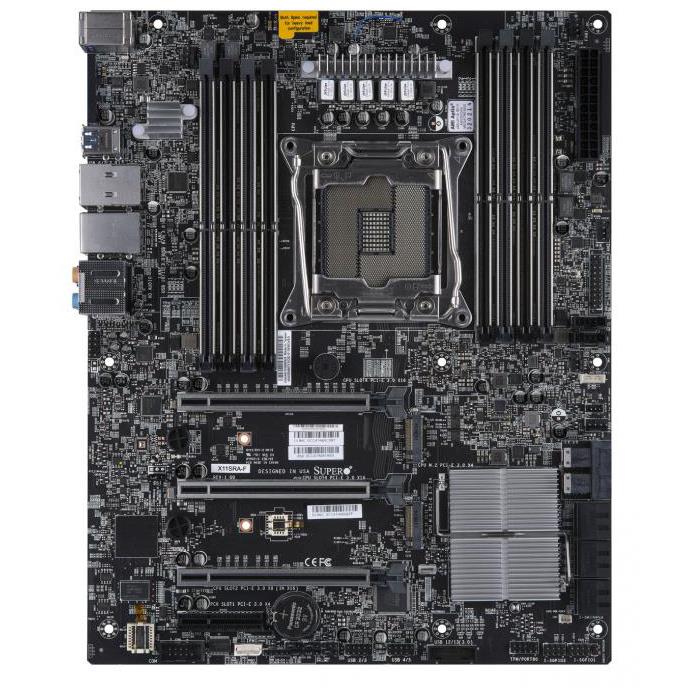

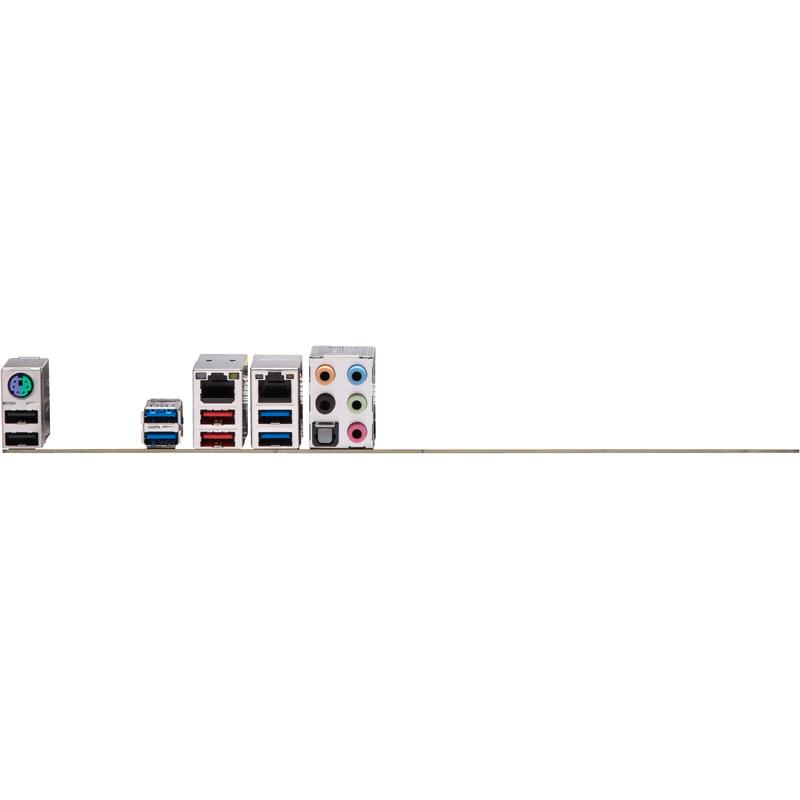

Supermicro X11SRA Motherboard ATX for Intel Xeon W, Socket FCBGA2066, up to 512GB Reg ECC RDIMM in 8 DIMM slots
Supports Intel Xeon W-2100/W-2200 Processors
Up to 1TB ECC LRDIMM DDR4-2666MHz in 8 DIMM slots
Intel C422 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
On-Board 14x USB ports, 1 COM Port, 1 TPM Header, ALC 1220 7.1 HD Audio
Motherboard ATX for Intel Xeon W, Socket FCBGA2066, up to 512GB Reg ECC RDIMM in 8 DIMM slots, Intel C422 Chipset, Onboard 6 SATA3 with RAID 0, 1, 5, 10; 1x 5G LAN and 1x GbE LAN ports, HD Audio; Expansion slots : 3 PCI-E 3.0 x16, 1x PCI-E 3.0 x4; - MBD-X11SRA-O (Retail Box)
1. Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
2. Intel® C422
3. Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
4. 3 PCIe 3.0 x16 (8/16/16, 48 lanes)
1 PCIe 3.0 x4 M.2 Interface: 2 PCIe 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key (RAID 0, 1)
*M-Key for SSD and Optane (up to Intel POR). Intel VROC Hardware License Key is needed to enable RAID function.
U.2 Interface: 2 PCIe 3.0 x4
5. Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 *iRST enabled, only SATA2 to SATA5 support RAID.
6. Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108
Extra Specifications for Supermicro X11SRA Motherboard ATX for Intel Xeon W, Socket FCBGA2066, up to 512GB Reg ECC RDIMM in 8 DIMM slots
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB | |
| Memory Capacity | 8 DIMM slots | |
| Up to 1TB ECC LRDIMM, DDR4-2666MHz; Up to 512GB ECC RDIMM, DDR4-2666MHz | ||
| (DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC) | ||
| Memory Type | 2666/2400/2133/1866/1600 MT/s ECC DDR4 LRDIMM, RDIMM SDRAM 72-bit, 288-pin | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® C422 | |
| Network Controllers | Single LAN with Aquantia 5G LAN chip AQC108 | |
| Single LAN with Intel® PHY I219LM LAN controller | ||
| SATA | Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| *iRST enabled, only SATA2 to SATA5 support RAID. | ||
| Audio | ALC 1220 7.1 HD Audio | |
| System BIOS | ||
| BIOS Type | 256MB UEFI | |
| Management | ||
| Software | SuperDoctor® 5, AMT, Watchdog | |
| PC Health Monitoring | ||
| FAN | Fan speed control | |
| PWM fan speed control | ||
| Overheat LED indication | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| LED | CPU / System Overheat LED | |
| Other Features | WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, Voltage and Frequency Overclocking, Intel Smart Response Technology | |
| Voltage | VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Monitors for CPU Cores, 5 (4-pin) | |
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| PECI | ||
| Support to monitor Supermicro AOC temperatures from IPMI or SD 5 | ||
| Product SKUs | ||
| Product SKUs | MBD-X11SRA | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) | |
| Processor | ||
| CPU | Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP | |
| Intel® Xeon® W-2100 Processors , Intel® Xeon® W-2200 Processors | ||
| As Intel® Xeon® Processor W Family | ||
| Input / Output | ||
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) | |
| 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) | ||
| 2 USB 3.2 Gen2 port(s) (2 type A) | ||
| Serial Port | 1 COM Port(s) (1 header) | |
| TPM | 1 TPM Header | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x4 | |
| 3 PCIe 3.0 x16, | ||
| ***3xPCIe3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCIe3.0x4 slots*** | ||
| M.2 | Key: M-Key | |
| Form Factor: 2280/22110 | ||
| M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1 | ||
| *M-Key for SSD and Optane(up to Intel POR). Intel VROC Hardware license Key is needed to enable RAID function. | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
