Main Specifications |

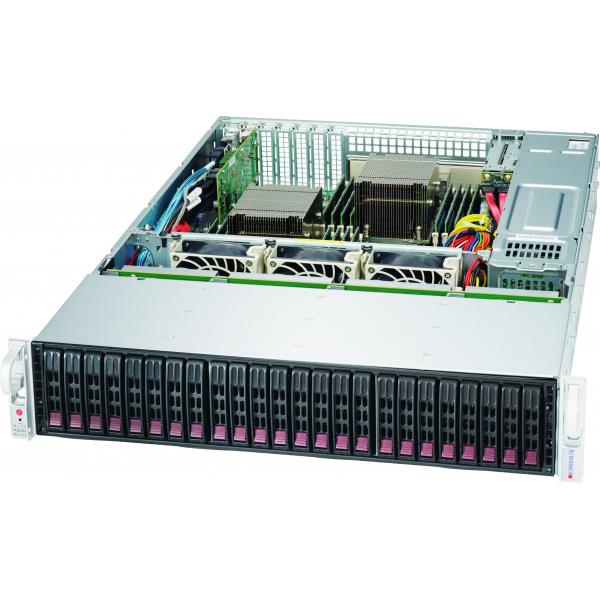

Device Type | SuperChassis |
Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) |
| Packaging (W x H x L): 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm) |
Color | Black |
Form Factor | 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" |
| Support up to ATX 12"x13" MB with rear 2.5" HDD option installed |
Weight | 53 lbs (24.04 kg) |
Processor |
Compatible Processors | Dual, single Intel / AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
Drive Bays |
Hot-swap | 24 x 2.5" hot-swap SAS/SATA drive bay |
| Optional 2 x 2.5" hot-swap drive bay |
Front Panel |
Buttons | Power On/Off button, System Reset button |
LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED |
System Cooling |
Fans | 3 x 8cm high-performance PWM fan(s) |
| Optional 5 x 6cm 4pin high performance fan(s) |
| 3x FAN-0158L4 |
Miscellaneous |
Applications | Chassis Intrusion switch |
Compatible With | Motherboards: X11SPH-nCTF, X11SPH-nCTPF, X11DPH-I, H11DSi, H11DSI-NT, X11DPH-T, X11DPH-TQ |
| Servers: 2029P-E1CR24H, 2029P-E1CR24L |
SAS / SATA Backplane |
SAS / SATA Backplane | 24-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices |
Operating Environment (System) |
Operating Temperature Range | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 5C - 35C (41F - 95F) |
| Non-Operating Temperature Range: -40C - 70C (-40F - 158F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
Power Supply |
Certification | 80PLUS Titanium Certified |
Power Supply | 2x PWS-1K23A-1R |
| 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm |
Regulatory (Power Supply) |
Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
Parts List - (Items Included) |
Air Shroud | 1x MCP-310-29001-0N |
Backplane | 1x BPN-SAS3-216EL1-N4 |
Drive Trays | 1x MCP-290-82607-0N, 24x MCP-220-00047-0B |
Mounting Rails | 1x MCP-290-00053-0N, 1x MCP-410-00007-0N (screw bag) |
Parts List |
Cables | 1x CBL-0071L, 3x CBL-0088, 2x CBL-0160L, 1x CBL-0182L, 1x CBL-0217L |
Standard Parts List |
Front Panel | 1x FPB-FP826-D, 1x TB826 |
Power Distributor | 1x PDB-PT216-2824 |
Rear Window | MCP-240-82608-0N |
