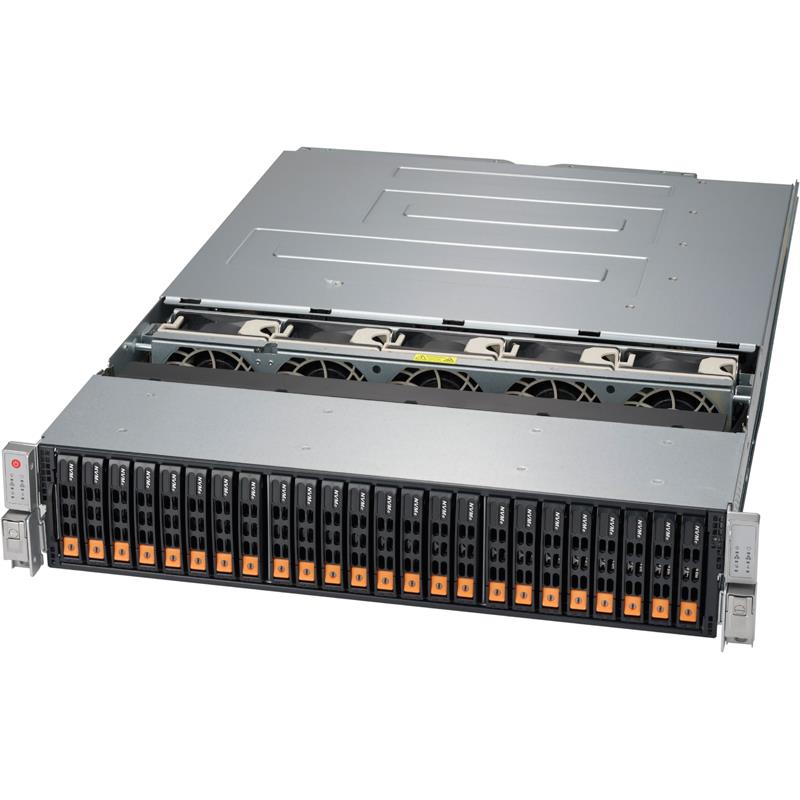

Supermicro SSG-2029P-DN2R24L 2U Storage Barebone Dual Processor
Barebone 2U SuperStorage Server - 2-Nodes - Each node supports up to two Intel Xeon Scalable Processors Gen. 2 - Supports up to 3TB DDR4 ECC 3DS LRDIMM up to 2933MHz, in 12x 288-pin slots - On-Board : Intel C624 chipset, SATA3 6Gbps (RAID 0, 1), dual-port 10GbE RJ45, IPMI 2.0, VGA - Includes : 24x 2.5in Hot-swap NVMe drive bays, 2000W Redundant 96% Titanium Level Power Supply with PMBus MBD-X11DSN-TS Motherboard, SC227TS-R2K05P3 2U Chassis (Black)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs and 6 dual port NVMe).

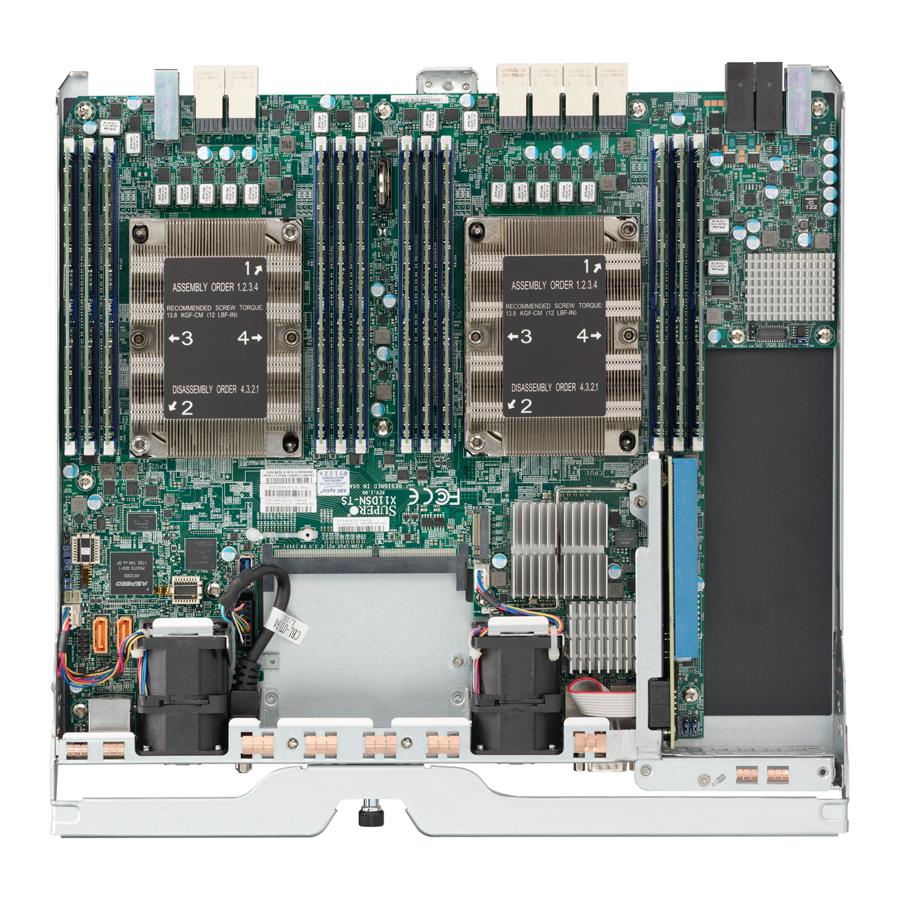

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 24 U.2 Hot-swap dual-port NVMe drive bays
4. 2 PCI-E 3.0 x16 HHHL slots, 1 PCI-E 3.0 x16 SIOM
5. Dedicated node to node connectivity featuring high performance PLX NTB PCI-E 3.0 x8 and IPMI for robust node fail-over support
6. Dual port 10GBase-T (Intel® X557-AT2), Dual 10G private ethernet between controller nodes
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 5x 8cm high-performance PWM fans
9. 2000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-2029P-DN2R24L 2U Storage Barebone Dual Processor
| Motherboard (Two per System) | ||

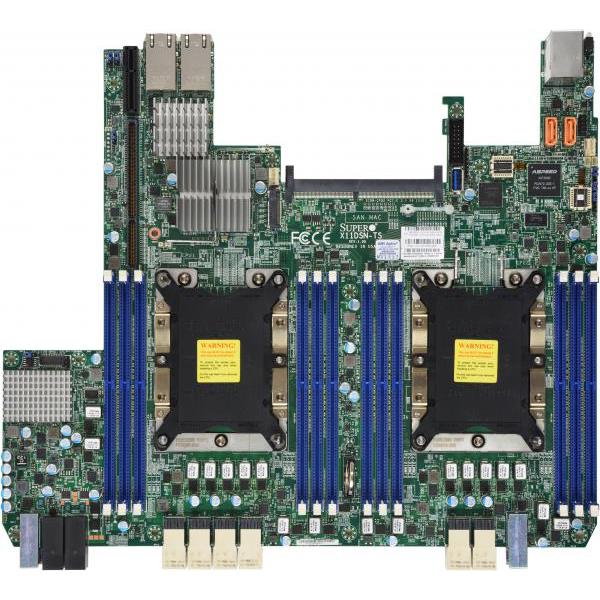

| Motherboard (Two per System) | Super X11DSN-TS | |
| System Memory (per Node) | ||
| Memory Capacity | Supports Intel® Optane™ DCPMM †† | |
| 12 DIMM slots | ||
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C624 series chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1 | |
| Network Controllers | Intel® X557-AT2 Dual Port 10GBase-T | |
| Dual 10G private Ethernet between controller nodes | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |

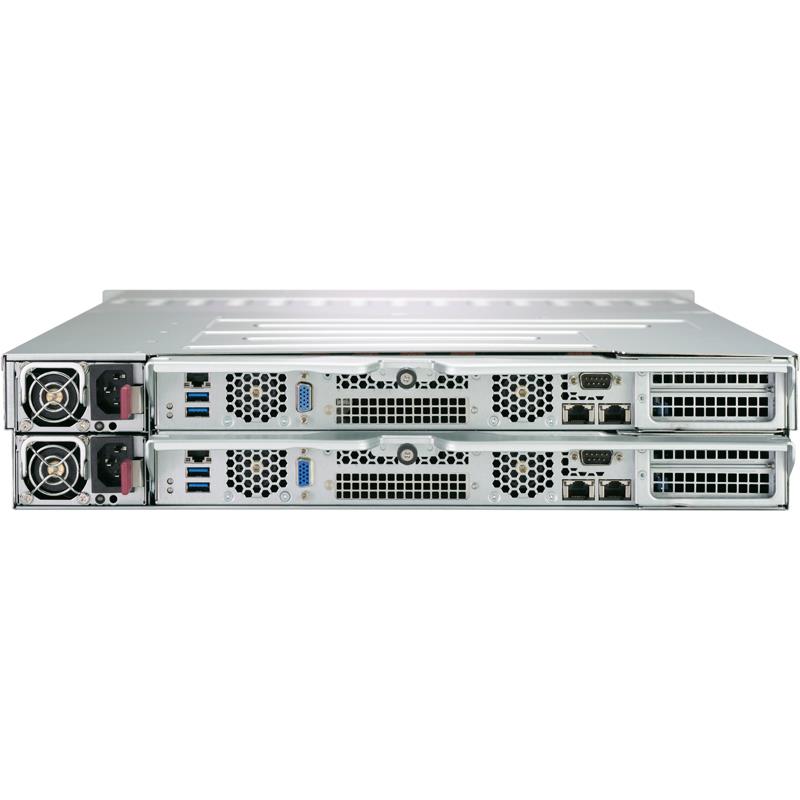

| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 2 USB 3.0 ports (rear) | |
| 1 Type A | ||
| Video | 1 VGA D-Sub Connector port | |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | NMI | |
| Watchdog | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-227TS-R2K05P3 | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.6" (650mm) | |
| Weight | Gross Weight: 67 lbs (30.4 kg) | |
| Available Colors | Black | |

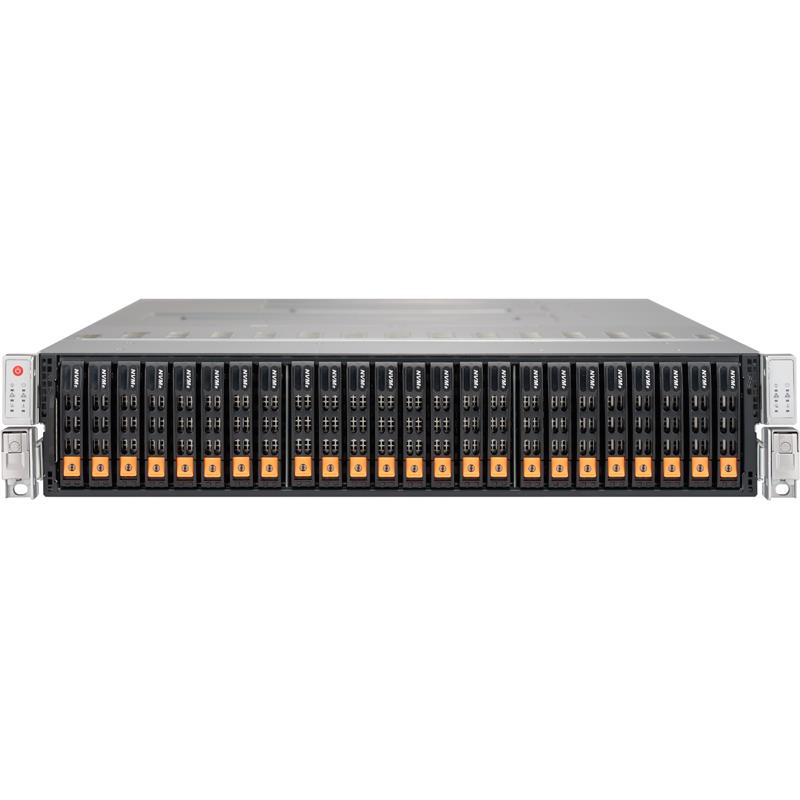

| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | System Information LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 2 PCI-E 3.0 x16 HHHL slots | |
| 1 PCI-E 3.0 x16 SIOM | ||
| M.2 | M.2 Interface: 1 PCI-E 3.0 x4 | |
| Form Factor: 2242/2260/2280 | ||
| Drive Bays | ||
| Hot-swap | 24 U.2 Hot-swap dual-port NVMe drive bays | |
| Backplane | ||
| Backplane | 2U 24-Port SBB Backplane for 24x 2.5" Dual-Port NVMe SSD | |
| System Cooling | ||
| Fans | 5x 8cm high-performance PWM fans | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz | |
| 200-220Vac / 10-9.5A / 50-60Hz | ||
| 220-230Vac / 10-9.8A / 50-60Hz | ||
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100-120Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166.7A / Min: 0A (230-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor (per Node) | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-165W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperStorage 2029P-DN2R24L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DSN-TS | 2 | Super X11DSN-TS Motherboard | |
| Motherboard / Chassis | CSE-227TS-R2K05P3 | 1 | 2U Chassis | |
| Backplane | BPN-NVME3-227NB | 1 | 2U 24-Port SBB Backplane for 24x2.5 | |
| Backplane | BPN-NVME3-227NL | 2 | 2U Gen3 PCIe Switch Daughter Board for Dual Port NVMe SSD (Note: This daughter board is integrated to BPN-NVMe3-227NB) | |
| Backplane | BPN-NVMe3-227SSB-2 | 1 | 227S and 227 SBB Series NVMe Platform Mid-plane for power distribution, PCIe pass-through and NTB link with PLX | |
| Cable 1 | CBL-SAST-0819 | 8 | OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH | |
| Parts | MCP-110-00015-0N | 8 | Pan head screw, #6-32 x 6L | |
| Riser Card | RSC-X-66-C | 2 | 1U LHS Passive Storage RSC w/ 2 PCI-E x16 slots,HF RoHS | |
| Heatsink / Retention | SNK-P0067PS | 4 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-2K05A-1R | 2 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| FAN 1 | FAN-0163L4 | 4 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | |
| FAN 2 | FAN-0168L4 | 5 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay) |
