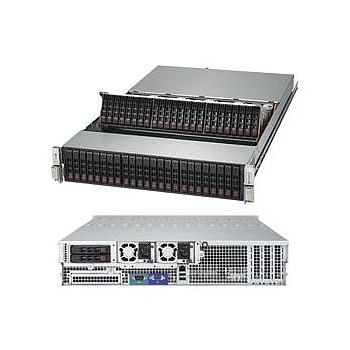

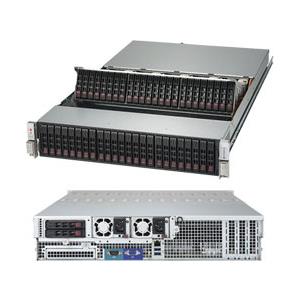

Supermicro SSG-2029P-E1CR48H 2U Storage Barebone Dual Processor
• Corporate Database
• Database Processing & Storage
• Enterprise Server
• HPC, Data Center
• iSCSI SAN
Barebone 2U Rackmount SuperServer, Dual Intel Xeon Scalable Processors, Intel C624 chipset, Up to 3TB DDR4 ECC 3DS LRDIMM memory, Broadcom 3108 SAS3 AOC, 48 Hot-swap 2.5in drive bays plus 2 Hot-Swap 2.5in SATA3 drive bay in rear, Flexible LAN expansion via SIOM module.
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 12 HDDs and 1 NIC or SIOM card).
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 + x8 for SAS3 Add-On-Module (AOM), 1 SIOM card support (flexible networking)
4. 48 Hot-swap 2.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" drive bays (rear)
5. Broadcom 3108 SAS3, HW RAID
6. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
7. 5x 8cm high-performance PWM fans
8. 1600W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-2029P-E1CR48H 2U Storage Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super X11DSC+ | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3108; HW RAID | |
| RAID 0, 1, 5, 6, 10, 50, 60 | ||
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10, 50 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| Serial ATA | 8 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports (rear) | |
| 1 Type A | ||
| Video | 1 VGA D-Sub connector port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | NMI | |
| Watchdog | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-226STS-R1K62P1 | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 30.2" (767mm) | |
| Cable Management Arm installed: 35.2" (895mm) | ||
| Gross Weight | 65 lbs (29.5 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots | |
| 1 PCI-E 3.0 x8 slot | ||
| 1 PCI-E 3.0 x8 + x8 for SAS3 Add-On-Module (AOM) | ||
| 1 SIOM card support (flexible networking) | ||
| Drive Bays | ||
| Hot-swap | 48 Hot-swap 2.5" SAS3/SATA3 drive bays | |
| 2 Hot-swap 2.5" SATA3 drive bays (rear) | ||
| Backplane | ||
| Backplane | SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots | |
| System Cooling | ||
| Fans | 5x 8cm high-performance PWM fans | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-165W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperStorage 2029P-E1CR48H (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DSC+ | 1 | Super X11DSC+ Motherboard | |
| Motherboard / Chassis | CSE-226STS-R1K62P1 | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-S3108M-H8L-P | 1 | sas3 roc mez for X10dsc | |
| Backplane | BPN-SAS3-226SEL1-N4 | 2 | 24-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices | |
| Cable 1 | CBL-SAST-0836 | 2 | MINI SAS HD,INT,SAS3 SSD,48CM,32AWG | |
| Cable 2 | CBL-SAST-0844 | 2 | SLIMLINE SAS to MiniSAS HD,INT,85CM,30D-41F-14D,no sidebend,32AWG | |
| Parts | MCP-220-82616-0N | 1 | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| FAN 1 | FAN-0168L4 | 5 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay) | |
| Drive Tray(s) | MCP-220-00047-0B | 48 | Black 3rd Gen hot-swap 2.5" HDD tray |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2x 2.5" rear SATA drive bay to support (2+2) drive bays | CBL-PWEX-0650MCP-240-22603-0NMCP-240-22604-0NMCP-220-82616-0N | 1111 | 8-pin female to 2 Right Angle big 4-pin female power, 47/62cm2U Rear Window support (2 + 2) 2.5 HDD2U Rear plate support (2 + 2) 2.5 HDDRear Window 12G 2x 2.5" HDD Module | |||
| 4 NVMe Drives Support | CBL-SAST-0929MCP-220-00121-0B | 44 | OCuLink 0.91 to MiniSAS HD,INT,PCIe NVMe SSD, 57CM, 34AWGBlack gen-3 2.5 NVMe drive tray | |||
| 3108 Cache Protection | BTR-CV3108-FT1 | $ 324.50 | 1 | LSI 3108 CacheVault kit for Fat Twin, RoHS/REACH Package,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
