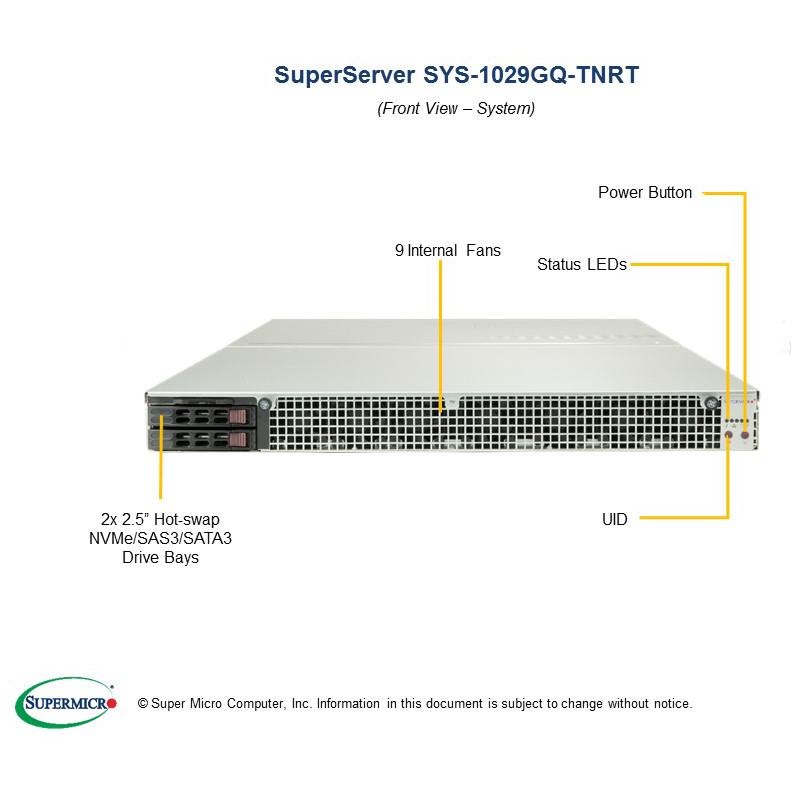

Supermicro SYS-1029GQ-TNRT 1U Barebone Dual Intel Processor
• Edge Computing
• Micro Data Center
• AI/ML, Deep Learning Training and Inference
• Virtualization
• Cloud Computing
Barebone 1U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 3TB DDR4 ECC 2933MHz memory, 2 Hot-swap 2.5in U.2 NVMe and 2 internal 2.5in SATA drive bays, Dual 10GBase-T LAN ports, Redundant 2000W Power Supply (CSE-118GQETS-R2K05P2 + MBD-X11DGQ)
This product is no longer available.
1. Supports up to 4 Active/Passive Cooling NVIDIA® GPUs in 1U
2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
4. 4 PCI-E 3.0 x16 (FHFL), 1 PCI-E 3.0 x16 (LP) and 1 PCI-E 3.0 x8 (LP)
5. 2 Hot-swap 2.5" U.2 NVMe drive bays, 2 Internal 2.5" SATA drive bays
6. Support 1x M.2 2242/2260/2280, Support M.2 SATA and NVMe
7. 2x 10GBase-T LAN ports via Intel X540
8. 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
9. 2000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-1029GQ-TNRT 1U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DGQ | |
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP up to 165W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. | |
| GPU | ||
| Supported GPUs | 4 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) | |
| NVIDIA V100, M10, T4, Quadro RTX, A100 | ||
| Supports both active and passive cooled GPUs | ||
| Compatible GPU list | ||
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root | |
| System Memory | ||
| Memory Capacity | 12 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Connectivity | Intel® X540 Dual Port 10GBase-T | |
| Virtual Machine Device Queues reduce I/O overhead | ||
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA port | |
| Serial Header | 1 Fast UART 16550 header | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-118GQETS-R2K05P2 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 35.2" (894mm) | |
| 39.3" (997mm) with rails | ||
| Package | 24" (H) x 8" (W) x 46" (D) | |
| Weight | Net Weight: 45 lbs (20.4 kg) | |
| Gross Weight: 58 lbs (26.31 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (LP) slot | |
| 4 PCI-E 3.0 x16 (FHFL) slots - supporting up to 4 GPUs | ||
| 1 PCI-E 3.0 x16 (LP) slot | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-swap 2.5" U.2 NVMe drive bays | |
| Fixed | 2 Internal 2.5" SATA drive bays | |
| M.2 | Support 1x M.2 2242/2260/2280 | |
| Support M.2 SATA and NVMe | ||
| System Cooling | ||
| Fans | 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz | |
| 200-220Vac / 10-9.5A / 50-60Hz | ||
| 220-230Vac / 10-9.8A / 50-60Hz | ||
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100-120Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166.7A / Min: 0A (230-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1029GQ-TNRT | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DGQ | 1 | Super X11DGQ Motherboard | |
| Motherboard / Chassis | CSE-118GQETS-R2K05P2 | 1 | CSE-118GQETS-R2K05P2 Chassis | |
| Add-on Card / Module | AOM-PIO-I2XT-P | 1 | AOM-PIO-I2XT | |
| Backplane | BPN-NVMe3-118GQE | 1 | 1U 2-Port Gen 3 NVMe Backplane for 2xNVMe SSD | |
| Cable 1 | CBL-0484L | 2 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-PWEX-1026 | 3 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS | |
| Cable 3 | CBL-PWEX-1027 | 1 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS | |
| Cable 4 | CBL-SAST-0935-12 | 1 | Oculink-Oculink X8 Cable 60cm 34AWG,RoHS | |
| Drive Tray(s) | MCP-220-00121-0B | 2 | Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive) | |
| Riser Card | RSC-G-A6 | 1 | U RHS Active Rear Riser card with 1 PCI-E x16,HF,RoHS | |
| Riser Card | RSC-GN2-A68 | 1 | 1U LHS Active GPU Riser Card with one PCI-E x8 slot, one PCI | |
| Riser Card | RSC-GR-6-X | 3 | 1U LHS GPU riser card with one PCI-E x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-2K05A-1R | 2 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| Fans | FAN-0163L4 | 8 | 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan | |
| Rail Set | MCP-290-11809-0N | 1 | Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Intel/AMD/Quadro/M10 GPU Cables | CBL-PWEX-1059 | $ 31.50 | 3 | GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 36CM, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG) | ||
| Intel/AMD/Quadro/M10 GPU Cables | CBL-PWEX-1060 | $ 28.00 | 1 | GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 16CM, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG) | ||
| 6+8 Pin PCIe Right Angle GPU Power Cables | CBL-PWEX-1061 | $ 28.00 | 3 | GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 34CM, 17/20AWG | ||
| 6+8 Pin PCIe Right Angle GPU Power Cables | CBL-PWEX-1062 | $ 26.00 | 1 | GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 25CM, 17/20AWG | ||
| Additional brackets for T4 | MCP-120-11816-0N | $ 111.00 | 1 | GPU bracket Set for NVIDIA P4/T4 GPUs | ||
| TPM | AOM-TPM-9670V | $ 56.50 | 0 | SPI capable vertical TPM 2.0 provisioned for client,RoHS | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
