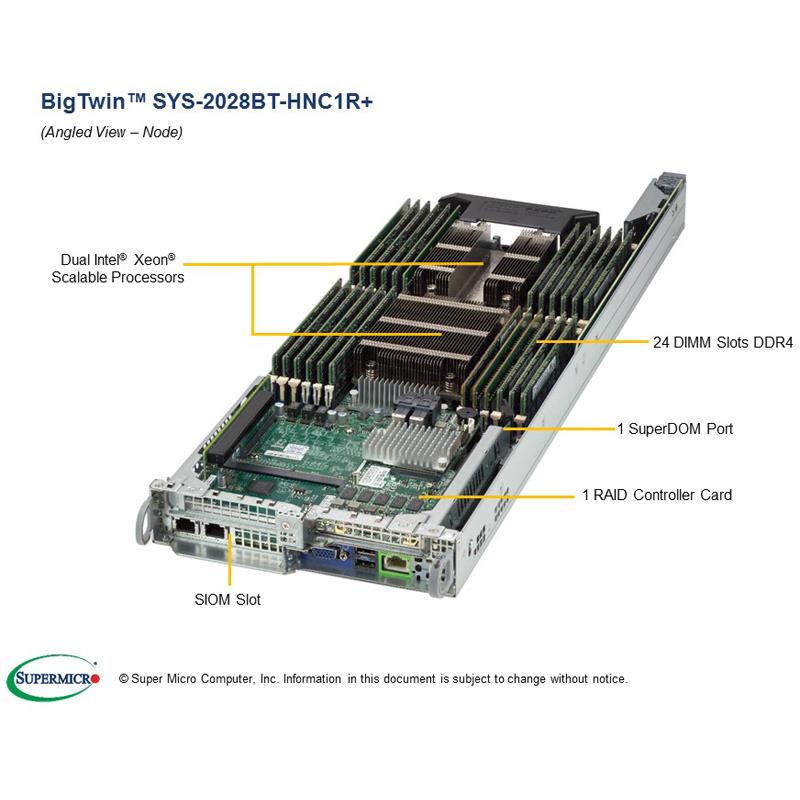

| Motherboard |

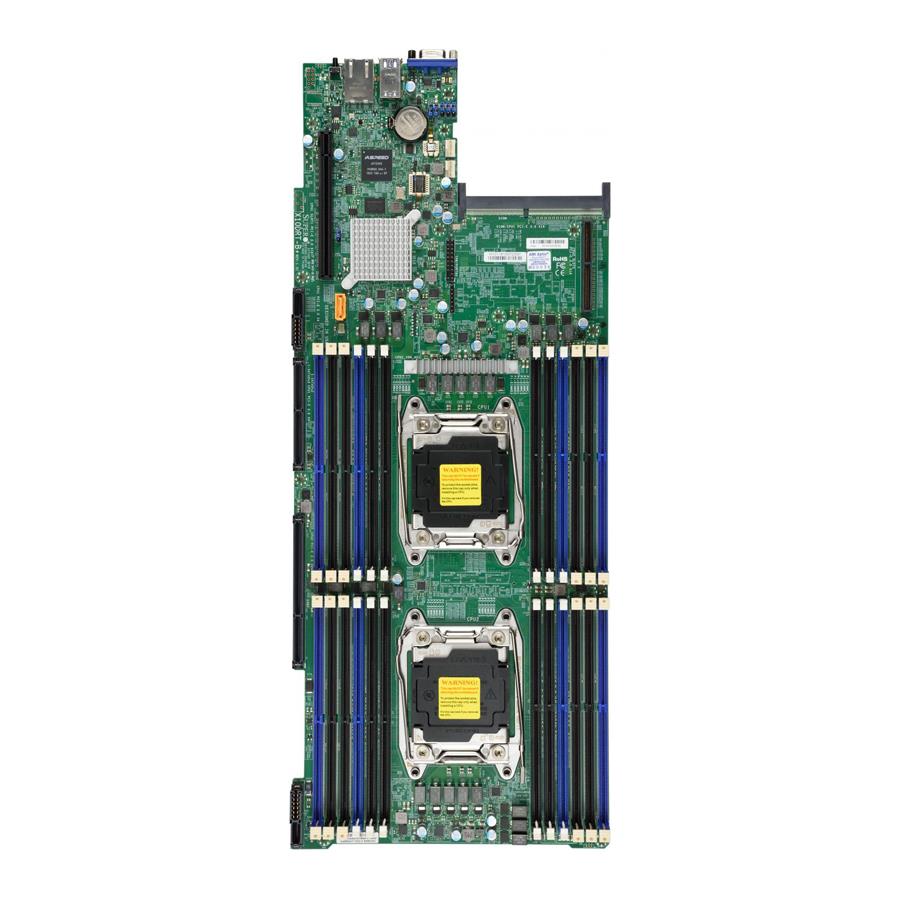

| Motherboard | Super X10DRT-B+ |
| Processor/Cache (per Node) |
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Dual Socket R3 (LGA 2011) |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory (per Node) |
| Memory Capacity | 24x 288-pin DDR4 DIMM slots |
| Up to 3TB † ECC 3DS LRDIMM, 768GB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices (per Node) |
| Chipset | Intel® C612 chipset |
| SAS | SAS3 (12Gbps) via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network | Must bundle with at least one SIOM network card |
| Video | ASPEED AST2400 BMC |

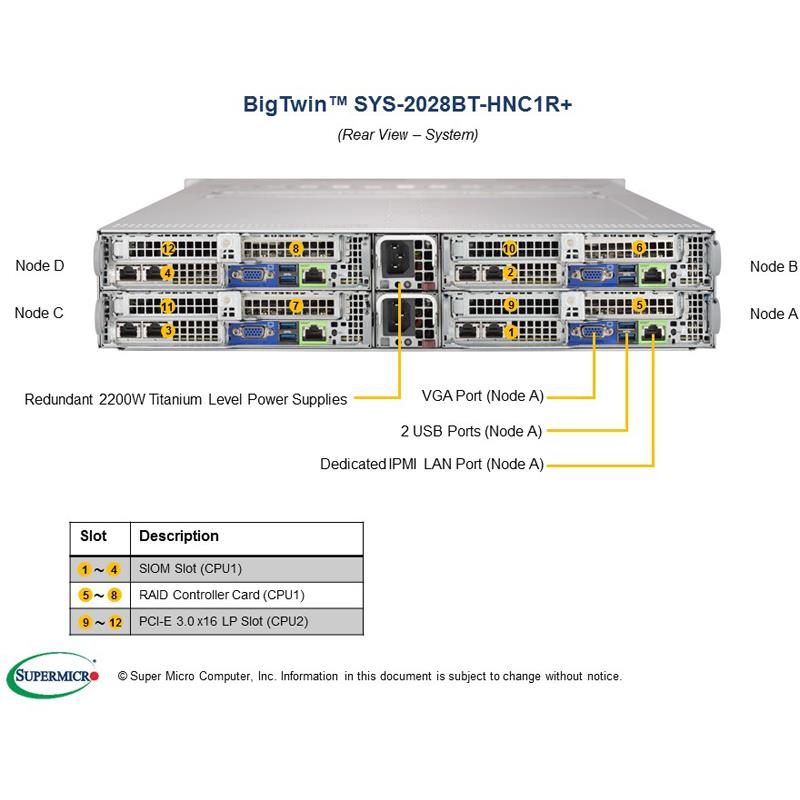

| Input / Output (per Node) |
| SAS | 6 SAS3 (12Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| Others | M.2 and SATA DOM for boot drive only |
| Chassis |

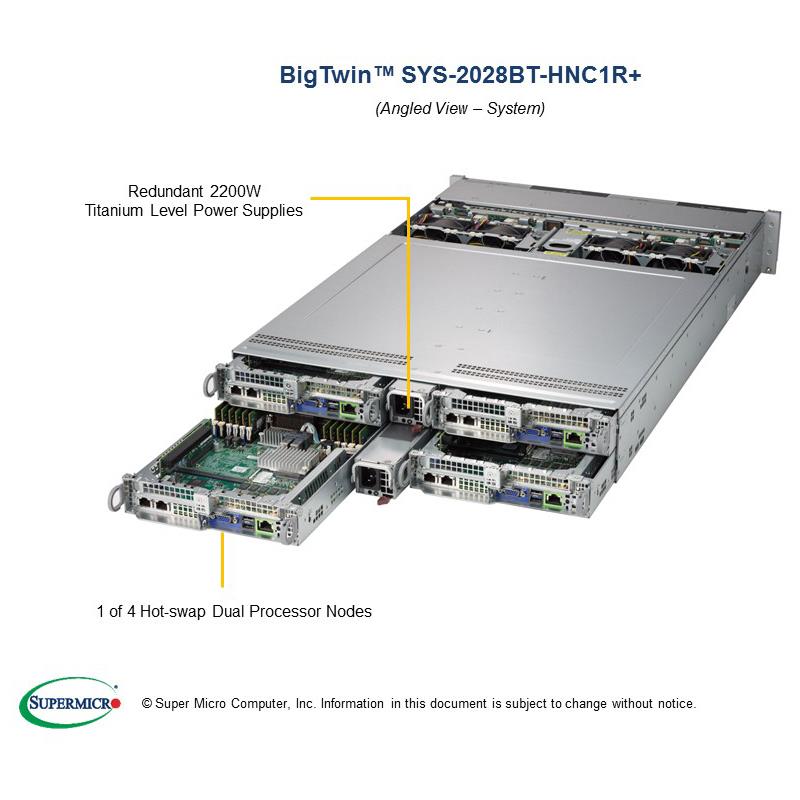

| Form Factor | 2U Rackmount |
| Model | CSE-217BHQ+-R2K22BP |
| Dimensions and Weight |
| Width | 17.6" (447mm) |
| Height | 3.47" (88mm) |
| Depth | 28.75" (730mm) |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) |
| Weight | Gross Weight: 85 lbs (38.6kg) |
| Net Weight: 54.5 lbs (24.7 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | 2 Network activity LEDs |
| Power status LED |
| HDD activity LED |
| Universal Information (UID) LED |
| Expansion Slots (per Node) |
| PCI-Express | 1 PCI-E 3.0 (x16) Low-profile slot |
| 1 SIOM card (must bundle with network card) |

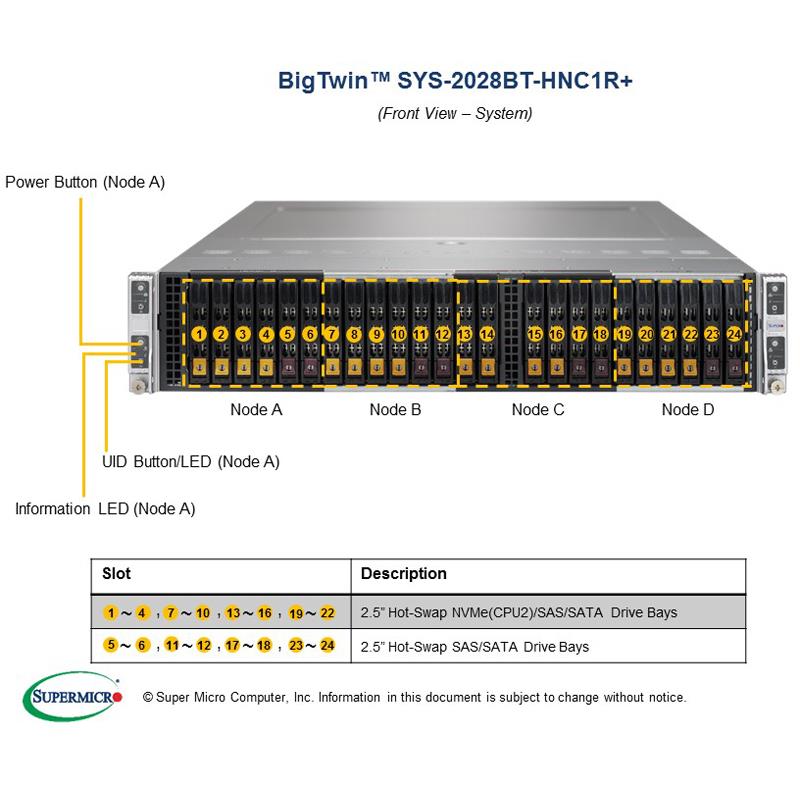

| Drive Bays (per Node) |
| Hot-swap | 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5" Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. |
| System Cooling |
| Fans | 4 heavy duty 8cm PWM fans with air shroud |
| Power Supply |
| Power Supply | 2200W Redundant Power Supplies with PMBus |
| Total Output Power | 1200W/1800W/1980W/2090/2200W |
| Dimension (W x H x L) | 45 x 40 x 480 mm |
| Input | 1200W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 2090W: 230-240Vac / 50-60Hz |
| 2090W: 180-220Vac (for UL/cUL only) |
| 2200W: 220-240Vac (for UL/cUL only) |
| 2090W: 230-240Vdc (for CCC only) |
| +12V | Max: 150A / Min: 0A (200-220Vac) |
| Max: 165A / Min: 0A (220-230Vac) |
| Max: 100A / Min: 0A (100-127Vac) |
| Max: 174.17A / Min: 0A (230-240Vac) |
| Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) |
| Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) |
| Max: 174.17A / Min: 0A (230-240Vdc, CCC only) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | Gold Finger |
| Certification | Titanium Level |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SuperServer 2028BT-HNC1R+ (Black) |
