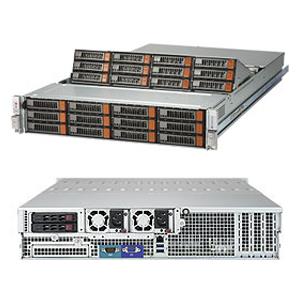

Supermicro SSG-6029P-E1CR24L 2U Storage Barebone Dual Processor
• Corporate Database
• Database Processing & Storage
• Enterprise Server
• HPC, Data Center
• iSCSI SAN
Barebone 2U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 6TB DDR4 ECC 2933MHz memory, Broadcom 3008 SAS3 AOC, 24 Hot-swap 3.5in drive bays, SIOM Network Card required, Redundant 1600W Power Supply (CSE-826STS-R1K62P1 + MBD-X11DSC+)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 6 HDDs and 1 NIC or SIOM card).
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. 24 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" SATA3 drive bays (rear) Expander based backplane
5. Broadcom 3008 SAS3, IT mode
6. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
7. 5x 8cm high-performance PWM fans
8. 1600W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-6029P-E1CR24L 2U Storage Barebone Dual Processor
| Motherboard | ||

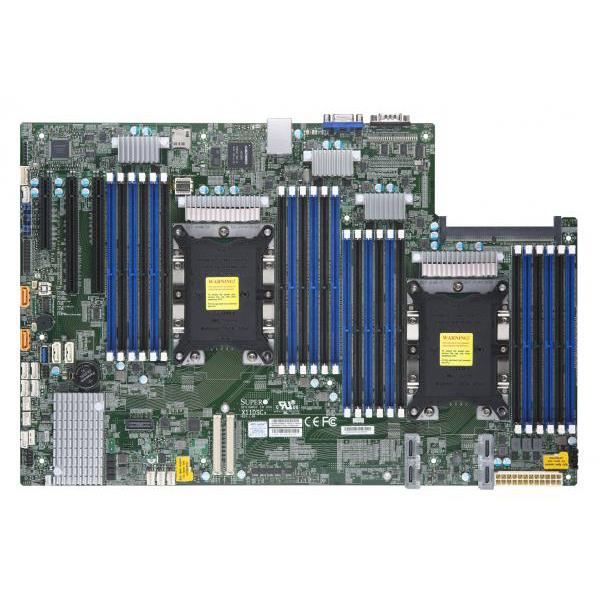

| Motherboard | Super X11DSC+ | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008; IT Mode | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| Serial ATA | 8 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports (rear) | |
| 1 Type A | ||
| Video | 1 VGA D-Sub connector port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | NMI | |
| Watchdog | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826STS-R1K62P1 | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 34" (863mm) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots | |
| 1 PCI-E 3.0 x8 slot | ||
| 1 SIOM card support (must bundle with network card) | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-swap 2.5" SATA3 drive bays (rear) | |
| 24 Hot-swap 3.5" SAS3/SATA3 drive bays | ||
| Backplane | ||
| Backplane | Expander based backplane | |
| System Cooling | ||
| Fans | 5x 8cm high-performance PWM fans | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-165W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperStorage 6029P-E1CR24L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DSC+ | 1 | Super X11DSC+ Motherboard | |
| Motherboard / Chassis | CSE-826STS-R1K62P1 | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-S3008M-L8-P | 1 | Mezz card with LSI 3008 controller | |
| Backplane | BPN-SAS3-826SEL1-N4 | 2 | 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices | |
| Cable 1 | CBL-PWEX-0702 | 1 | PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED | |
| Cable 2 | CBL-SAST-0835 | 2 | SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG | |
| Cable 3 | CBL-SAST-0836 | 2 | MINI SAS HD,INT,SAS3 SSD,48CM,32AWG | |
| Parts | MCP-220-82616-0N | 1 | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| FAN 1 | FAN-0168L4 | 5 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay) |
