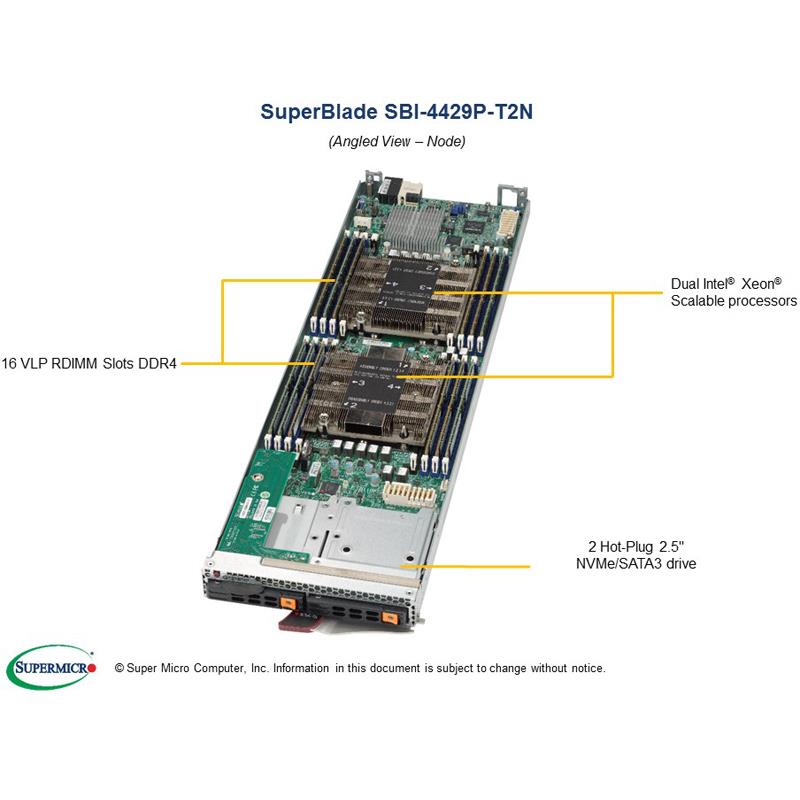

Supermicro SBI-4429P-T2N Blade Barebone Dual Processor

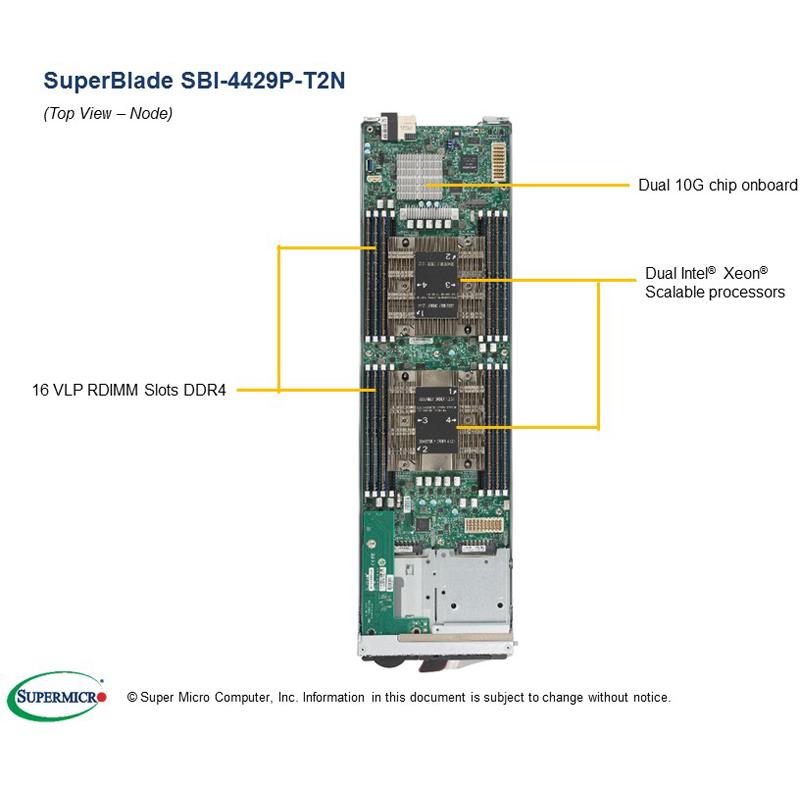

Processor Blade Dual Socket 3647 for up to two Intel Xeon Scalable 2nd Generation Processors Skylake-SP with 2 NVMe or SATA Drive - Requires heatsink (sold separately)
This product is no longer available.
1. 280 CPUs per 42U Rack
2. Dual socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. Intel® C622 chipset
4. 12 DIMMs; up to 384GB VLP ECC DDR4-2933MHz RDIMM
5. 2 Hot-plug 2.5" NVMe or 2 SATA3 drive bays; 1 PCI-E x4 M.2 NVMe/SATA
6. Dual 10G onboard
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2500 BMC
Extra Specifications for Supermicro SBI-4429P-T2N Blade Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super B11DPT-P | |
| Processor/Cache | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP up to 165W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors | |
| System Memory | ||
| Memory Capacity | Up to 384GB VLP ECC DDR4 RDIMM | |
| 12 DIMM slots * | ||
| Memory Type | 2933/2666/2400MHz ECC DDR4 | |
| Note | * | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SATA | SATA3 (6Gbps) via Intel C622; RAID 0, 1 | |
| Network Controllers | Dual 10G LAN with Intel® X722 | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2500 BMC | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 6.5" | |
| Width | 1.2" | |
| Depth | 23.5" | |
| Weight | 9.5 lbs (4.3 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| Drive Bays | ||
| Hot-swap | 2 Hot-Plug 2.5" NVMe or 2 SATA3 drive bays | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-B11DPT-P-O-P | 1 | Super B11DPT-P Motherboard | |
| Motherboard / Chassis | MCP-680-41401-0N | 1 | 4U 14 SuperBlade Processor Blade chassis | |
| Add-on Card / Module | AOM-SB414-01-P | 1 | Front control board with KVM for Blade,HF,RoHS | |
| Hard Drive Tray | MCP-220-00145-0B | 2 | Black 2.5" NVMe Hard Drive Tray, orange button | |
| Air Shroud | MCP-310-41402-0N | 1 | 4U 14 SuperBlade B11DPT Processor Tray Air Shroud |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Heatsink / Retention | SNK-P1037PS | $ 53.50 | 1 | Low Profile Proprietary Passive CPU Heat Sink for B11 4U 14 Blade Series Super Servers | ||
| Heatsink / Retention | SNK-P1037PSM | $ 53.50 | 1 | Low Profile Proprietary Passive CPU Heat Sink w/ a Middle Air Channel for B11 4U 14 Blade Series Super Servers | ||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| AOC | AOC-VROCINTMOD | 0 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
