- Supermicro X11SCZ-F Motherboard uATX Single Socket H4 (LGA 1151) for Intel 8th Generation Intel Core Processors

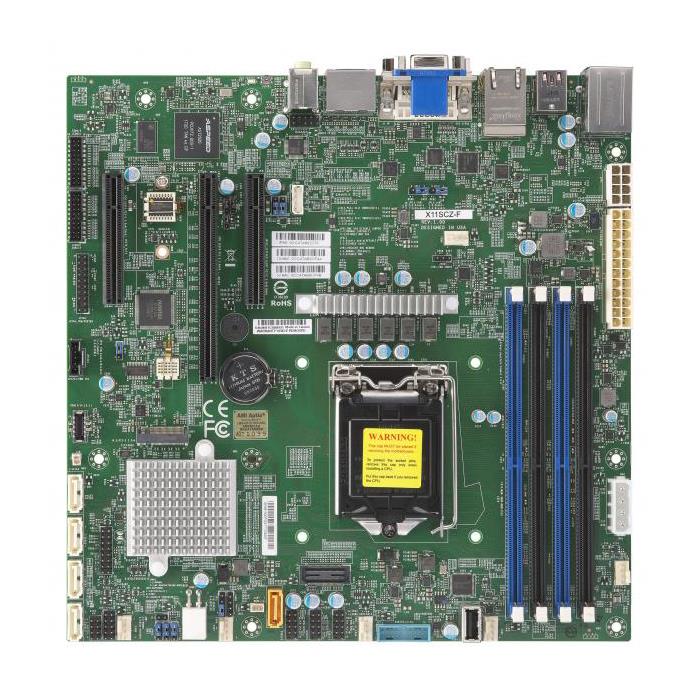

Supermicro X11SCZ-F Motherboard uATX Single Socket H4 (LGA 1151) for Intel 8th Generation Intel Core Processors
Up to 128GB UDIMM DDR4-2666MHz in 4 DIMM slots
Supports 8th/9th Generation Intel Core i9/i7/i5/i3 Processor
Intel C246 controller for 5 SATA3 (6 Gbps) ports RAID 0,1,5,10
On-Board 2 RJ45 Gigabit Ethernet LAN ports, 1 SATA DOM, 1 TPM
Motherboard uATX Single Socket H4 (LGA 1151) for Intel 8th Generation Intel Core Processors - supports up to 64GB Unbuffered non-ECC-UDIMM in 4 memory slots, Intel C246 chipset, onboard RAID with 5 SATA3 ports, 2x 1GbE LAN port, Audio, VGA, IPMI, 15 USB, 1x PCIe 3.0 x16, 2 PCIe 3.0 x4, 1x M.2 interface - MBD-X11SCZ-Q-O
1. 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor. Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
2. Intel® C246
3. Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller
4. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
5. 1 PCIe 3.0 x16, 2 PCIe 3.0 x4 (in x8 slot) 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
6. Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports, 3 Independent Displays
Extra Specifications for Supermicro X11SCZ-F Motherboard uATX Single Socket H4 (LGA 1151) for Intel 8th Generation Intel Core Processors
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz | ||
| Memory Type | 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® C246 | |
| Graphics | 3 Independent Displays | |
| 1 ASPEED AST2500 BMC port(s) | ||
| 1 Intel® HD Graphics port(s) | ||
| IPMI | ASPEED AST2500 | |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT | |
| Single LAN with Intel® PHY I219LM LAN controller | ||
| SATA | Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Audio | ALC 888S HD Audio | |
| Input / Output | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Video Output | 1 VGA D-Sub Connector port(s), 2 DP (DisplayPort) port(s), 1 DVI - I port(s) | |
| USB | 6 USB 3.1 Gen2 port(s) (2 via header; 1 rear type C; 3 rear type A) | |
| 7 USB 2.0 port(s) (6 via header; 1 Type A) | ||
| 2 USB 3.1 Gen1 port(s) (2 via header) | ||
| Serial Port | 4 COM Port(s) (4 header) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM Header & Chip both | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | RTC (Real Time Clock) Wakeup | |
| PCI FW 3.0 | ||
| ACPI 6.1 | ||
| SMBIOS 3.1 | ||
| UEFI 2.6 | ||
| Management | ||
| Power Configurations | ACPI Power Management, ATX Power connector, +12V DC Power Input | |
| Software | SuperDoctor® 5, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | Dual Cooling Zone | |
| 6 fans with tachometer status monitoring | ||
| Fan speed control | ||
| 6x 4-pin fan headers (up to 6 fans) | ||
| LED | UID/Remote UID | |
| Other Features | UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source | |
| Voltage | VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, Memory Voltages | |
| Temperature | Thermal Control for 6 Fan Connectors | |
| Product SKUs | ||
| Product SKUs | MBD-X11SCZ-F | |
| Physical Stats | ||
| Form Factor | uATX | |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor | ||
| CPU | A graphic integrated CPU is required to have onboard video from the DVI and DP ports | |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP | ||
| 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x16, | |
| 2 PCIe 3.0 x4 (in x8 slot) | ||
| M.2 | Key: M-Key | |
| M.2 Interface: 1 SATA/PCIe 3.0 x4 | ||
| Form Factor: 2280/22110 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
