- Supermicro CSE-847BE1C4-R1K23LPB Server Chassis 4U Rackmount

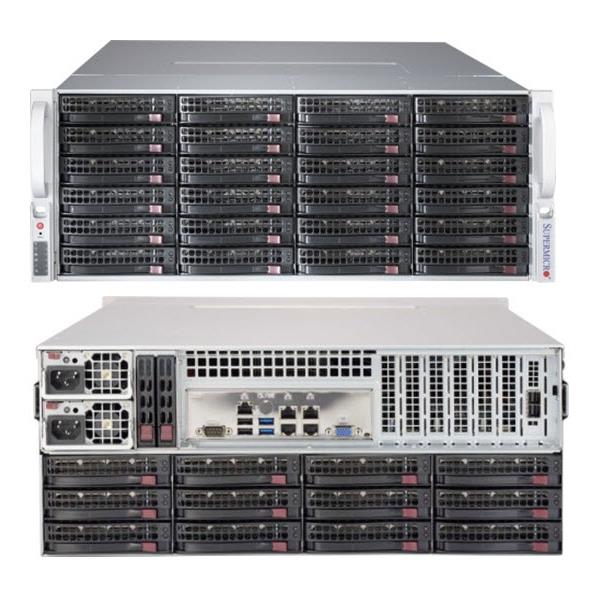

Supermicro CSE-847BE1C4-R1K23LPB Server Chassis 4U Rackmount
Can be placed in a rack for secure storage and use
Equipped with 1200W/1000W Redundant Power Supply
Compatible with Dual & Single Intel and AMD processors
Features 36 x 3.5in hot-swap SAS/SATA drive bay with SES3
Rackmount 4U w/ 1200W Redundant Titanium Certified Power Supply (2x PWS-1K23A-1R) for Single / Dual Intel / AMD Motherboard - Includes : 36x (24 front + 12 rear) 3.5in Hot-swap HDD bays, 7 low-profile expansion slots, Mounting Rails Kit - SC847BE1C4-R1K23LPB 4U Chassis - (Black)
1. 4U Chassis for motherboard support size: (12" x 10") (13.68" x 13") (9.6" x 9.6")
2. 36 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
3. 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
4. 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
5. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
6. 7 low-profile expansion slot(s)
7. 7 x 80mm high-performance fan(s)
Extra Specifications for Supermicro CSE-847BE1C4-R1K23LPB Server Chassis 4U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Status LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 1200W with Input 200 - 240Vac | |
| 1000W with Input 100 - 127Vac | ||
| 1200W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 83A (100Vac - 127Vac) | |
| Max: 100A (200Vac - 240Vac) | ||
| Max: 100A (200 - 240) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | O/P: 12V/135 | |
| PDB-PT847-8824 | ||
| +5V Max: 100 | ||
| +3.3V Max: 30 | ||
| -12V Max: 0.6 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 4U Chassis for motherboard support size: (12" x 10") (13.68" x 13") (9.6" x 9.6") | |
| Processor Support | ||
| Processor Support | Single and Dual Intel® and AMD processors | |
| Dimensions | ||
| Height | 7" (178 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 27.5" (699 mm) | |
| Gross Weight | 91 lbs (41.28 kg) | |
| Packaging (W x H x L) | 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 low-profile expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 36 x 3.5" hot-swap SAS/SATA drive bay with SES3 | |
| Optional 2 x 2.5" hot-swap drive bay | ||
| Backplane | ||
| Backplane | 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH | |
| 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD | ||
| Peripheral Drives | ||
| Peripheral Drives | Optional 2 x 3.5" internal fixed drive bay | |
| Optional 4 x 2.5" internal fixed drive bay | ||
| Systems Cooling | ||
| Fans | 7 x 80mm high-performance fan(s) | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| HDD Kit | MCP-220-82616-0N | $ 89.00 | 0 | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B | ||
| HDD Kit | MCP-220-82619-0N | $ 102.00 | 0 | 2.5x2 NVMe Drive Kit for 216B/826B/417B/846X/847B,RoHS | ||
| HDD Kit | MCP-220-84701-0N | $ 26.50 | 0 | SC847 internal drive tray for one 3.5 | ||
| HDD Tray Converter | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
| HDD Tray Converter | MCP-220-00138-0B | $ 43.00 | 0 | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab | ||
| Cable | CBL-SAST-0531-01 | $ 34.00 | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH | ||
| Cable | CBL-SAST-0532 | $ 37.00 | 0 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF | ||
| Front Bezel | MCP-210-84601-0B | $ 65.00 | 0 | Black Front Bezel For SC846 Chassis | ||
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Short rail set, quick release, 19.6"~26.9" Extendable Length | ||
| Rail | MCP-290-00061-0N | $ 21.50 | 0 | Non-threaded rail adapter optional for round thread rack |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
