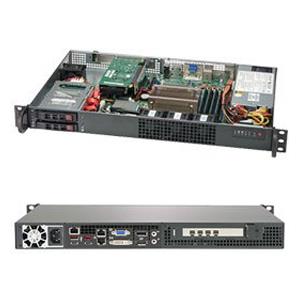

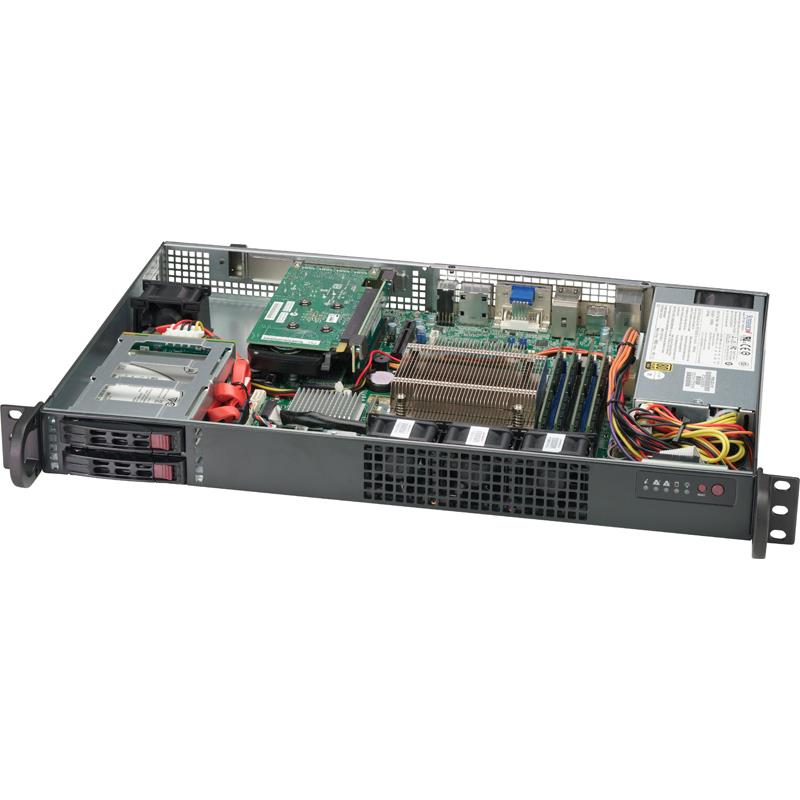

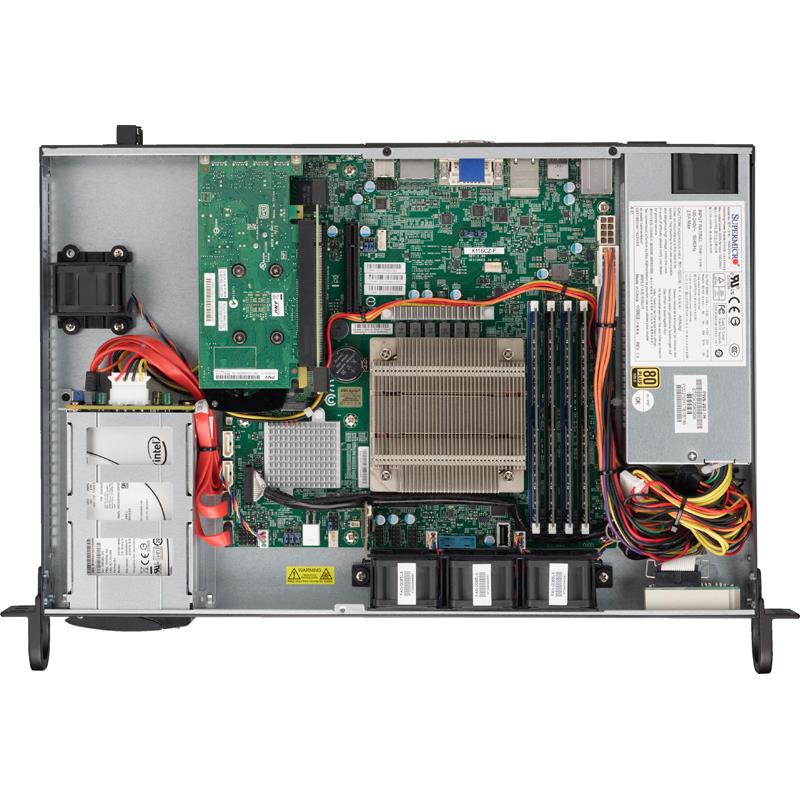

Supermicro SYS-1019C-HTN2 1U Barebone Single Intel Xeon E-2100/E-2200 Series 8th/9th Generation Processors
• Compact 1U Embedded
• Video Surveillance
• Network Security
• Office Server, DVR/NVR
• Digital Signage, POS
Barebone 1U Rackmount SuperServer, Support Single Socket H4 (LGA 1151), Supporting Intel Xeon E-2100/E-2200 Series, 8th/9th Generation. Intel Core i9/i7/i5/i3, Intel Celeron, Intel Pentium Processors. Up to 128GB DDR4 ECC UDIMM in 4x 288-pin slots - On-Board: Intel C246 controller for 5 SATA RAID 0,1,5,10. IPMI 2.0, 2x Gigabit LAN, VGA - Includes 2x 2.5in Hot-swap drive bays, 1x PCI-E 3.0 x16 AOC slot, 1x Riser Card (RSC-RR1U-E16), 1x Heatsink (SNK-P0046P), 200W Gold Level Power Supply, MBD-X11SCZ-F Motherboard, SC510FT-203B 1U Chassis (Black)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C246 chipset
3. 2 Hot-swap 2.5" SATA3 drive bays
4. Up to 128GB unbuffered ECC/non-ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x16 (HHHL) slot, M.2 (M key, 22110/80, PCI-E 3.0 x4/SATA)
6. 2 GbE LAN ports, 1 dedicated IPMI LAN
7. 4 USB 3.1 (3 Type A, 1 Type C)
8. 2 DP, DVI-I, VGA, ALC 888S HD Audio
9. 200W Low Noise AC-DC Power Supply with PFC, Gold Certified
Extra Specifications for Supermicro SYS-1019C-HTN2 1U Barebone Single Intel Xeon E-2100/E-2200 Series 8th/9th Generation Processors
| Motherboard | ||

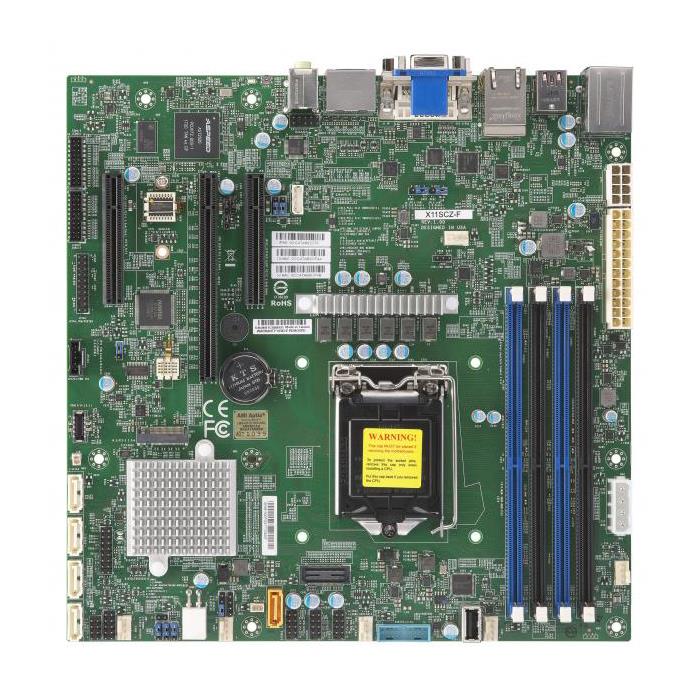

| Motherboard | Super X11SCZ-F | |
| Processor | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 80W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium® | ||
| A graphic integrated CPU is required to have onboard video from the DVI and DP ports | ||
| System Memory | ||
| Memory Capacity | 4 DIMM slots | |
| Up to DDR4-2666MHz | ||
| Up to 128GB Unbuffered ECC/non-ECC UDIMM | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| On-Board Devices | ||
| Chipset | Intel® C246 chipset | |
| SATA | RAID 0, 1 support | |
| SATA3 (6Gbps) via Intel C246 controller | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Single LAN with Intel® I210-AT | |
| Single LAN with Intel® PHY I219LM | ||
| Video | ASPEED AST2500 BMC and Intel HD Graphics | |
| Audio | ALC 888S 7.1 HD Audio | |
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) ports; RAID 0, 1 | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 3 USB 3.1 ports (3 Type A and 1 Type C) | |
| Video/Display | 2 DP (DisplayPort): 1 DVI-I, 1 VGA D-Sub Connector port | |
| 3 independent displays | ||
| Audio | MIC-in and LINE-out | |
| TPM | TPM Header " Chip | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| IPMI 2.0 with KVM support | ||
| SuperDoctor® 5 | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-510FT-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 11.3" (287mm) | |
| Package | 6.1" (H) x 25.4" (W) x 19.8" (D) | |
| Weight | Gross Weight: 14.1 lbs (6.4 kg) | |
| Net Weight: 10.0 lbs (4.54 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 (HHHL) slot | |
| M.2 | M.2 Key: M-Key | |
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 | ||
| M.2 Form Factor: 2280/22110 | ||
| Drive Bays | ||
| Internal | 2 Hot-swap 2.5" SATA3 drive bays (maximum 12mm-thick drive) | |
| System Cooling | ||
| Fans | 4x 40x28mm 4-pin PWM fans | |
| Power Supply | ||
| Power Supply | 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max | |
| +5V | 8.0 Amp (max.) | |
| +5V standby | 2.0 Amp (max.) | |
| +12V | 16 Amp (max.) | |
| -12V | 0.5 Amp (max.) | |
| +3.3V | 8.0 Amp (max.) | |
| Certification | Gold Certified | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Total of 6 fan headers supporting up to 6 fans | ||
| 6 fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| I 2 C temperature sensing logic | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 40°C (50°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1019C-HTN2 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SCZ-F | 1 | Super X11SCZ-F Motherboard | |
| Motherboard / Chassis | CSE-510FT-203B | 1 | 1U Chassis | |
| Air Shroud | MCP-310-00097-0B | 1 | Air shroud for 4-DIMM size,HF,RoHS | |
| Fan | FAN-0065L4 | 1 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| Parts | MCP-150-00015-0B | 1 | Rubber pad, 3.0mm H, 10x10mm | |
| Parts | MCP-260-00128-0B | 1 | 1U I/O Shield for X11SCZ on SC510 with EMI Gasket | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Rear Window | MCP-240-00091-0N | 2 | 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF | |
| Heatsink / Retention | SNK-P0046P | 1 | 1U PASSIVE CPU HS FOR INTEL LGA1156 | |
| Power Supply | PWS-203-1H | 1 | 1U 200W Multi-output 80Plus Gold PWS |
