| Motherboard |
| Motherboard | Super X11SCZ-F |
| Processor |
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 80W |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium® |
| A graphic integrated CPU is required to have onboard video from the DVI and DP ports |
| System Memory |
| Memory Capacity | 4 DIMM slots |
| Up to DDR4-2666MHz |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB |
| On-Board Devices |
| Chipset | Intel® C246 chipset |
| SATA | RAID 0, 1 support |
| SATA3 (6Gbps) via Intel C246 controller |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2500 BMC |
| Network Controllers | Single LAN with Intel® I210-AT |
| Single LAN with Intel® PHY I219LM |
| Video | ASPEED AST2500 BMC and Intel HD Graphics |
| Audio | ALC 888S 7.1 HD Audio |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) ports; RAID 0, 1 |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| USB | 3 USB 3.1 ports (3 Type A and 1 Type C) |
| Video/Display | 2 DP (DisplayPort): 1 DVI-I, 1 VGA D-Sub Connector port |
| 3 independent displays |
| Audio | MIC-in and LINE-out |
| TPM | TPM Header " Chip |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | Watch Dog |
| IPMI 2.0 with KVM support |
| SuperDoctor® 5 |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-510FT-203B |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 11.3" (287mm) |
| Package | 6.1" (H) x 25.4" (W) x 19.8" (D) |
| Weight | Gross Weight: 14.1 lbs (6.4 kg) |
| Net Weight: 10.0 lbs (4.54 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| System Information LED |
| Hard drive activity LED |
| 2 Network activity LEDs |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x16 (HHHL) slot |
| M.2 | M.2 Key: M-Key |
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 |
| M.2 Form Factor: 2280/22110 |
| Drive Bays |
| Internal | 2 Hot-swap 2.5" SATA3 drive bays (maximum 12mm-thick drive) |
| System Cooling |
| Fans | 4x 40x28mm 4-pin PWM fans |
| Power Supply |
| Power Supply | 200W Low Noise AC-DC power supply with PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max |
| +5V | 8.0 Amp (max.) |
| +5V standby | 2.0 Amp (max.) |
| +12V | 16 Amp (max.) |
| -12V | 0.5 Amp (max.) |
| +3.3V | 8.0 Amp (max.) |
| Certification | Gold Certified |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Total of 6 fan headers supporting up to 6 fans |
| 6 fans with tachometer status monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| I 2 C temperature sensing logic |
| Thermal Monitor 2 (TM2) support |
| PECI |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 40°C (50°F to 104°F) |
| Product SKUs |

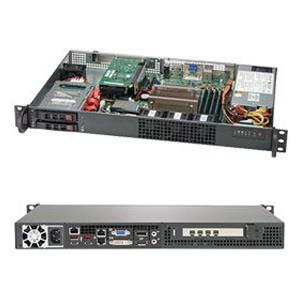

| Product SKUs | SuperServer 1019C-HTN2 (Black) |
