| Main Specifications |
| Built-in Devices | Super X11DPT-BH |
| Device Type | SuperServer |
| Dimensions (WxDxH) | Width 17.6" (447mm) x Height 3.47" (88mm) x Depth 28.75" (730mm) |
| Package: 24.65" (H) x 9.76" (W) x 45.28" (D) |
| Color | Black |

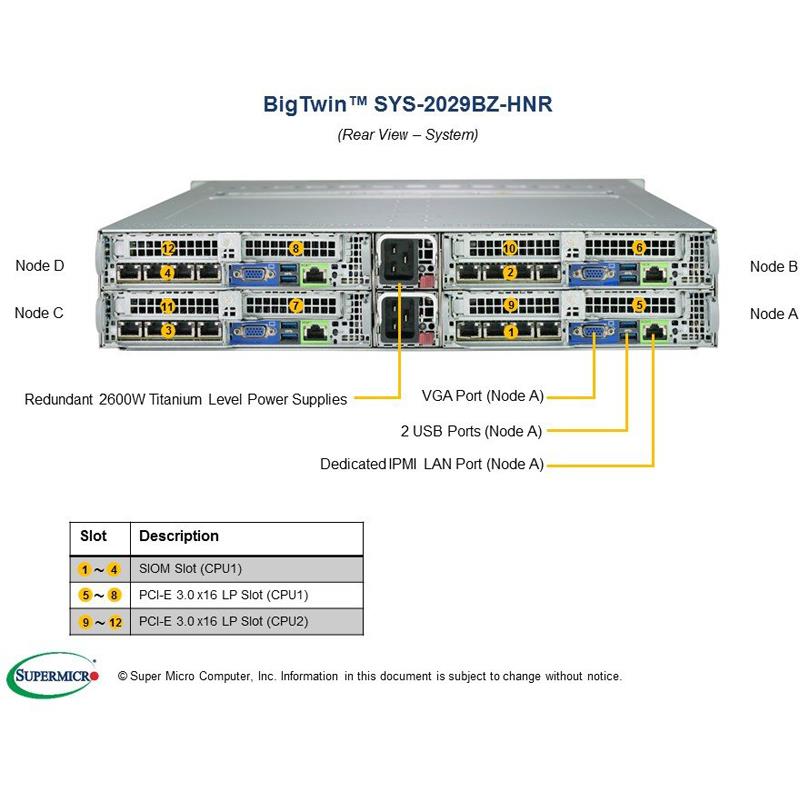

| Form Factor | 2U Rackmount - CSE-217BHQ+-R2K60FP |
| Weight | Gross Weight: 85 lbs (38.6kg) - Net Weight: 54.5 lbs (24.7 kg) |
| Processor |
| Cache | Up to 28 Cores |
| Compatible processor | 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s |
| Support CPU TDP 70-205W |
| Compatible Socket | Dual Socket P (LGA 3647) |
| System Memory |
| Memory Capacity | Supports Intel Optane DCPMM |
| 24 DIMM slots |
| Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM |
| Cache Memory |
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| On-Board Devices |
| Chipset | Intel C621 chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2500 BMC |
| USB | 2 USB 3.0 ports (rear) |
| On-Board Devices (per Node) |
| Network | Must bundle with at least one SIOM network card |
| Input / Output |
| DOM | 1 SuperDOM (Disk on Module) port |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Others | M.2 and SATA DOM for boot drive only |
| VGA | 1 VGA port |
| Front Panel |
| Buttons | Power On/Off button, UID button |
| LEDs | Power status LED, HDD activity LED, Network activity LEDs, Universal Information (UID) LED |
| Expansion Slots (per node) |
| PCI-Express | 2 PCI-E 3.0 (x16) Low-profile slots |
| (must bundle with network card) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 SIOM card support |
| M.2 | 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B |
| Drive Bays |
| Hot-swap | 6 Hot-swap 2.5" NVMe drive bays |
| System Cooling |
| Fans | 16 Heavy duty 40x56mm PWM fans with air shroud (4 fans per node) |
| Power Supply |
| Certification | 80PLUS Titanium Level |
| Power Supply | 2600W Redundant Power Supplies with PMBus |
| 2x PWS-2K60A-1R |
| System BIOS |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Environmental Parameters |
| Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40C to 60C (-40F to 140F) |
| Operating Temperature: 10C ~ 35C (50F ~ 95F) |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Management |
| Power Configurations | ACPI / APM Power Management |
| Software | Intel Node Manager, IPMI 2.0, KVM with dedicated LAN, SSM, SPM, SUM, SuperDoctor 5, Watch Dog |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Miscellaneous |
| Compliant Standards | RoHS Compliant |
| Riser Card | 4x RSC-P-6, 4x RSC-R1UTP-E16R |
| Parts List - (Items Included) |
| Air Shroud | 4x MCP-310-21719-0B, 4x MCP-310-21720-0B |
| Backplane | 4x BPN-ADP-6NVME3-1UB, 1x BPN-NVME3-217BHQ |
| Drive Trays | 24x MCP-220-00127-0B-BULK |
| Heatsink / Retention | 4x SNK-P0067PSMB, 4x SNK-P0071VS |
| Motherboard / Chassis | 4x MBD-X11DPT-BH / 1x CSE-217BHQ+-R2K60FP |
