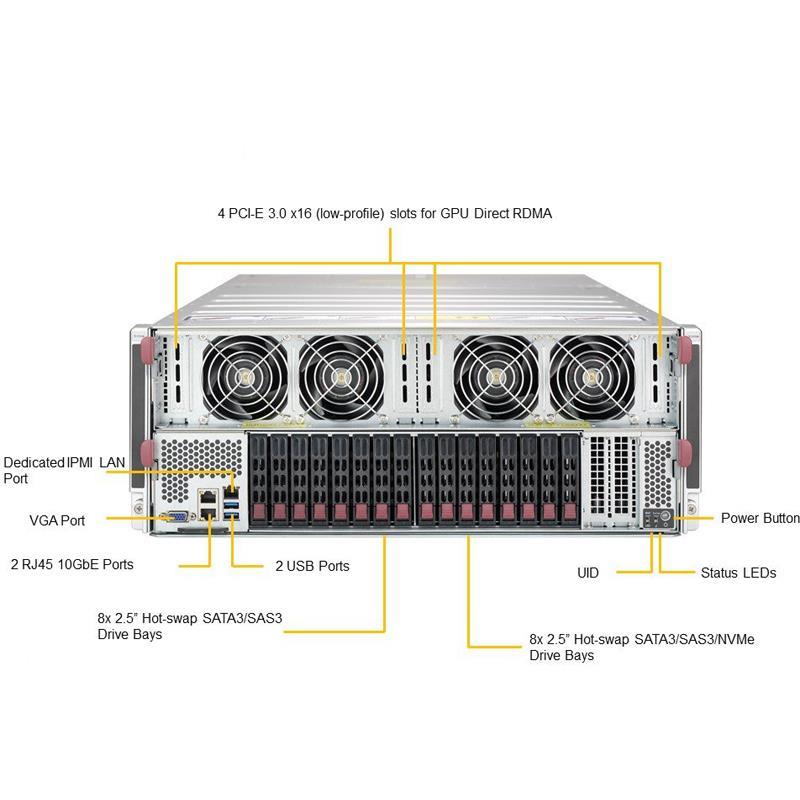

Supermicro SYS-4028GR-TVRT 4U Barebone Dual Intel Processor
• Up to 8 Tesla V100 SXM2 GPUs
• Up to 300 GB/s GPU-to-GPU
• NVLINK
• Supports GPUDirect RDMA
Barebone 4U Rack 2x Socket-2011 for up to Two Xeon E5-2600 v4/v3 family processors - GPU/Xeon Phi Support K1 / K2 / K40M / K80 / Xeon Phi - Supports Up to 3.0TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 24x 288-pin slots - On-Board : SATA3 6Gbps (RAID 0, 1, 5., 10), IPMI 2.0, 2x 10G Ethernet, VGA - Includes : 16x 2.5in Hard drive bays
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 4 GPUs installed).
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 3TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 24x DIMM slots
3. 4 PCI-E 3.0 x16 (low-profile) slots 2 PCI-E 3.0 x8 (low-profile) slots M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110
4. Dual 10GBase-T LAN with Intel® X540
5. 16 Hot-swap 2.5" SATA/SAS drives; Supports 8 NVMe drives
6. 8x 92mm cooling fans
7. 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)
Extra Specifications for Supermicro SYS-4028GR-TVRT 4U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X10DGO-T | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 24x 288-pin DDR4 DIMM slots | |
| Up to 3TB † ECC 3DS LRDIMM, 2TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Dual Port 10GbE with Intel X540 Ethernet Controller | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 2 USB 3.0 ports | |
| Video | 1 VGA Connector | |
| Serial Port | 1 Serial header | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| PCI 2.3 | ||
| UEFI | ||
| APM 1.2 | ||
| ACPI 1.0 / 2.0 / 3.0 | ||
| Chassis | ||
| Form Factor | 4U Rackmountable | |
| Rackmount Kit (MCP-290-31401-0N) | ||
| Model | CSE-R422BG-2 | |
| Dimensions | ||
| Height | 7.0" (178mm) | |
| Width | 17.6" (447mm) | |
| Depth | 31.7" (805mm) | |
| Weight | Net Weight: 80 lbs (36.2 kg) | |
| Gross Weight: 135 lbs (61.2 kg) | ||
| Available Colors | Black | |
| Drive Bays | ||
| Hot-swap | 16 Hot-swap 2.5" SATA/SAS drive bays | |
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x8 slots | |
| 4 PCI-E 3.0 x16 (low-profile) slots | ||
| M.2 | Form Factor: 2260, 2280, 22110 | |
| M.2 Interface: PCI-E 3.0 x4 | ||
| System Cooling | ||
| Fans | 8x 92mm Cooling Fans | |
| Shrouds | 1 Air Shroud (MCP-310-41808-0B) | |
| Power Supply | ||
| Power Supply | 2200W Redundant Titanium Level Power Supplies with PMBus | |
| Total Output Power | 1200W/1800W/1980W/2090W/2200W (UL/cUL only) | |
| Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm | |
| Input | 1200W: 100-127 Vac / 14-11 A / 50-60 Hz | |
| 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | ||
| 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz | ||
| 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) | ||
| 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) | ||
| 2090W: 230-240 Vdc / 10-9.8 A (CCC only) | ||
| +12V | Max: 100A / Min: 0A (1200W) | |
| Max: 150A / Min: 0A (1800W) | ||
| Max: 165A / Min: 0A (1980W) | ||
| Max: 174.17A / Min: 0A (2090W) | ||
| Max: 183.3A / Min: 0A (2200W) | ||
| 12Vsb | Max: 2A / Min: 0A | |
| Output Type | Gold Finger (connector on M/P) | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. | |
| 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V | ||
| FAN | 4-pin fan headers with tachometer status monitoring | |
| Low noise fan speed control mode | ||
| Temperature | Monitoring for CPU and system environment | |
| Thermal Control for 8 fan connectors | ||
| Other Features | Chassis intrusion detection | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 4028GR-TVRT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DGO-T | 1 | Super X10DGO-T Motherboard | |
| Motherboard / Chassis | MBD-X10DGO-SXMV-P | 1 | V100 SXM2 GPU Board | |
| Motherboard / Chassis | CSE-R422BG-2 | 1 | CSE-R422BG-2 Chassis | |
| Backplane | BPN-MB-R422 | 1 | Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS | |
| Backplane | BPN-SAS3-213A-N8 | 1 | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-0174L | 4 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH | |
| Cable 2 | CBL-0449L | 2 | HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG | |
| Cable 3 | CBL-PWCD-0174-IS | 4 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH | |
| Cable 4 | CBL-PWEX-0979 | 3 | 2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG | |
| Cable 5 | CBL-SAST-0550 | 2 | MINI SAS HD,12G,INT,25CM,30AWG | |
| Cable 6 | CBL-SAST-0819 | 2 | OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH | |
| Cable 7 | CBL-SAST-0974-1 | 2 | OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG | |
| Parts | MCP-220-42204-0N-PACK | 1 | Single pack R422BG 2U GPU tray (2U, 8 Pascal / Volta GPU),Ro | |
| Power Supply | PWS-2K21A-2R | 4 | 2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc, | |
| Power Supply | PWS-DF004-1F | 4 | 12Vdc input redundant FAN module power supports I2C function | |
| Heatsink / Retention | SNK-P0048AP4 | 2 | 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32 | |
| Heatsink / Retention | SNK-P4001P | 8 | 2U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-4028GR-TXR/TXRT Series Servers | |
| Heatsink / Retention | SNK-P4003P | 8 | 2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| NVMe AOC | AOC-SLG3-4E2P-O | 1 | 4 port PLX NVMe PCIe x8 card,HF,RoHS. Support up to 4 NVMe drives | |||
| Cable | CBL-SAST-0974-1 | $ 47.50 | 4 | OCuLink v.1.0,INT,x4,PCIe,37 CM,RoHS | ||
| NVMe drive Tray | MCP-220-00121-0B | $ 28.50 | 4 | Black Gen-3 2.5" NVMe drive tray, Orange tab with lock | ||
| Storage Control Cards and Cable(s) | AOC-S3008L-L8i & 2x CBL-SAST-0568 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0,1,1E; MINI SAS HD,12G,INT,35CM,30AWG | |||
| Storage Control Cards and Cable(s) | AOC-S3108L-H8iR & 2x CBL-SAST-0568 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,35CM,30AWG | |||
| Storage Control Cards and Cable(s) | AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0568 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,35CM,30AWG |
