- Supermicro SYS-4029GP-TRT2 4U Barebone Dual Intel Processor

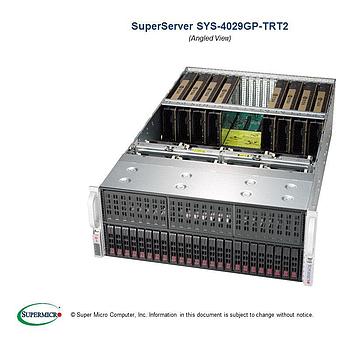

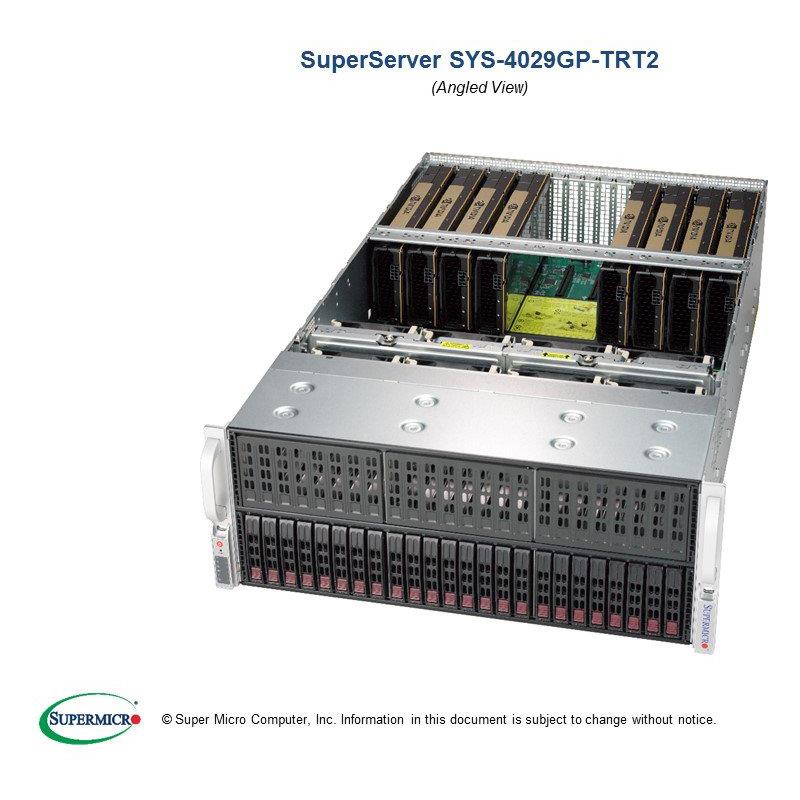

Supermicro SYS-4029GP-TRT2 4U Barebone Dual Intel Processor
• AI/ML, Deep Learning Training and Inference
• High Performance Computing (HPC)
• Big Data Analytics
• Astrophysics Simulation
• Chemistry Simulation
• Research Laboratory/National Laboratory

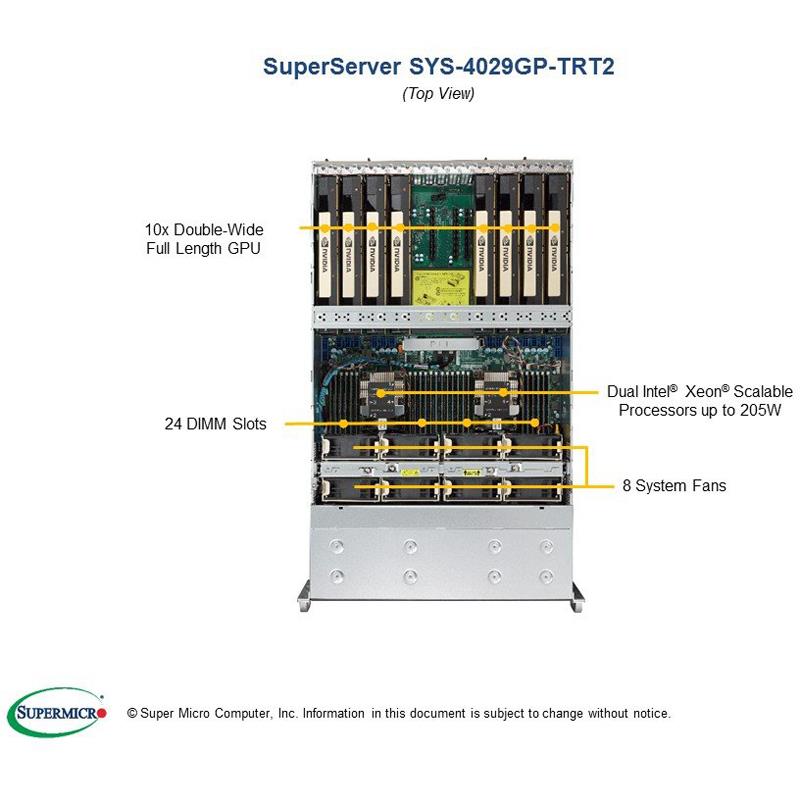

Barebone 4U Dual Xeon Scalable Gen. 2 for 10 nVidia Tesla V100 GPU with NVLink, up to 6TB ECC Reg 3DS DDR4 2933MHz LRDIMM, Intel C622 chipset, up to 24x 2.5in SAS/SATA drive bays, 8 SATA3 (6Gbps) ports, 2x 2.5in NVMe support, 11 PCIe 3.0 x16 slots, Dual 10GbE LAN ports, 2000W Redundant Power Supply (Titanium Level)
1. Single Root System for excellent GPU peer to peer communication with sufficient CPU to GPU throughput
2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
4. 11 PCI-E 3.0 x16 (FH, FL) slots 1 PCI-E 3.0 x8 (FH, FL in x16 slot)
5. Up to 24 Hot-swap 2.5" drive bays; 8x 2.5" SATA drives supported with included H/W, 2x 2.5" NVMe drives supported with included H/W, 1 NVMe based M.2 SSD
6. 2x 10GBase-T LAN ports via Intel C622
7. 8 Hot-swap 92mm RPM cooling fans
8. 2000W (2+2) Redundant Power Supplies Titanium Level (96%+)
Extra Specifications for Supermicro SYS-4029GP-TRT2 4U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DPG-OT-CPU | |
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| GPU | ||
| Supported GPUs | Supports both active and passive cooled GPUs | |
| Compatible GPU list | ||
| NVIDIA V100, P40, T4, Quadro, RTX | ||
| 10 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) | ||
| CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch Single-Root | |
| PCIe Root Architecture Chart | ||
| GPU-GPU Interconnect | PCI-E, NVIDIA® NVLink™ Bridge (Optional) | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Controllers | Dual Port 10GbE from C622 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 4 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable | |
| Rackmount Kit (MCP-290-00057-0N) | ||
| Model | CSE-418GTS-R4000BP2 | |
| Dimensions | ||
| Height | 7.0" (178mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29" (737mm) | |
| Weight | Net Weight: 65.5 lbs (29.7 kg) | |
| Gross Weight: 100 lbs (45.3 kg) | ||
| Available Colors | Black | |
| Drive Bays / Storage | ||
| Hot-swap | Up to 24x 2.5" SAS/SATA drive bays | |
| 8x 2.5" SATA supported natively | ||
| 2x 2.5" NVMe supported natively | ||
| M.2 | 1 NVMe based M.2 SSD | |
| Form Factors: 2260, 2280, 22110 | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (FH, FL, in x16) slot | |
| 11 PCI-E 3.0 x16 (FHFL) slots - supporting up to 10 GPUs | ||
| System Cooling | ||
| Fans | 8 Hot-swap 92mm cooling fans | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz | |
| 200-220Vac / 10-9.5A / 50-60Hz | ||
| 220-230Vac / 10-9.8A / 50-60Hz | ||
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100-120Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166.7A / Min: 0A (230-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 4029GP-TRT2 | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPG-OT-CPU | 1 | Super X11DPG-OT-CPU Motherboard | |
| Motherboard / Chassis | MBD-X10DRG-O-PCIE | 1 | Super X10DRG-O-PCIE Motherboard | |
| Motherboard / Chassis | CSE-418GTS-R4000BP2 | 1 | CSE-418GTS-R4000BP2 Chassis | |
| Backplane | BPN-SAS3-216A-N4 | 1 | 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-0449L | 2 | HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG | |
| Cable 2 | CBL-PWEX-1028 | 8 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C | |
| Cable 3 | CBL-SAST-0507-01 | 2 | MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG | |
| Cable 4 | CBL-SAST-0972 | 2 | OcuLink V. 1.0 source to MiniSAS HD,INT,PCIe, 70CM,34AWG,RoH | |
| Parts | MCP-130-41802-0B | 1 | Black plastic palm cover for X10DRG-O-PCIE | |
| Riser Card | RSC-X9DRG-O | 4 | RSC-X9DRG-O | |
| Heatsink / Retention | SNK-P0068APS4 | 2 | 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform | |
| Power Supply | PWS-2K05A-1R | 4 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| FAN 1 | FAN-0199L4 | 8 | 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF | |
| Rear Window | MCP-240-84802-0N | 1 | 21 slot rear window for SC418X |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 0.5U LID | MCP-230-41803-0N | $ 65.00 | 1 | Top cover for GTX card support | ||
| 1U LID | MCP-230-41806-0N | $ 75.50 | 1 | Top cover for NVLINK BRIDGE support | ||
| 2.5" NVMe Drive Trays | MCP-220-00121-0B | $ 28.50 | 1 per drive | Black Gen-3 2.5" NVMe drive tray. Orange tab with lock | ||
| 2.5" NVMe Drive Trays | MCP-220-00167-0B | $ 28.50 | 0 | Black Gen-3 2.5" NVMe drive tray. Orange tab with lock, Tool-less | ||
| GPU Dummy Tray | MCP-240-00096-0N | $ 33.50 | 1 | GPU / Add-on Card Dummy Assembly (2 Slots) | ||
| GPU Cables | CBL-PWEX-0665 | $ 25.00 | 1 per GPU*** | GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin FEMALE BLK to 8pin FEMALE WHT. 30cm 18AWG. | ||
| GPU Cables | CBL-PWEX-1017 | $ 27.50 | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG. | ||
| GPU Cables | CBL-PWEX-1040* | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG. | |||
| GPU Cables | CBL-PWEX-1028** | 1 per GPU | GPU power cable (for NVIDIA TESLA V100). 8pin FEMALE CPU BLUE to 8pin FEMALE CPU BLUE. 30cm 20AWG/16AWG. | |||
| Storage Control Cards and Cables | AOC-S3008L-L8I2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10 | |||
| Storage Control Cards and Cables | AOC-S3008L-L8E2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only | |||
| Storage Control Cards and Cables | AOC-S3108-H8IR2, 4, 8 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60 | |||
| Storage Control Cards and Cables | AOC-S3108L-H8IR-16DD4, 8 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane | |||
| Storage Control Cards and Cables | AOC-SAS3-9361-16I3, 5 | 1 | Broadcom 9361 STD LP 16 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. | |||
| Storage Control Cards and Cables | AOC-SAS3-9361-24I5, 6 | 1 | Broadcom 9361 STD LP 24 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. | |||
| Storage Control Cards and Cables | CBL-SAST-0531 | $ 33.50 | 2 | n/a | ||
| Storage Control Cards and Cables | BTR-TFM4G-LSI004187 | 1 | LSI Remote CVKit with DVFlash Module CVFM04 for 9361 and 9380 Controller Series | |||
| Storage Control Cards and Cables | BTR-TFM8G-LSICVM02 | $ 279.00 | 1 | LSI Supercap w/ 8GB CV + 24" cable for LSI S3108-H8IR.Optional installation kit: - MCP-240-00127-0N - BKT-BBU-BRACKET-05 | ||
| Storage Control Cards and Cables | MCP-240-00127-0N | $ 20.50 | 1 | Remote Mounting Bracket for Supercap. Installs in 2.5" drive tray. | ||
| Storage Control Cards and Cables | BKT-BBU-BRACKET-05 | $ 84.00 | 1 | Remote Mounting Board for Supercap. Full Height mounting bracket. Low Profile mounting bracket also included. | ||
| Storage Control Cards and Cables | BPN-SAS3-216EL1 | 1 | SAS3 12Gb/s Single Expander Backplane with x24 2.5" SATA/SAS HDD/SSD. | |||
| Network and Cables | AOC-STG-i4S | 1 | 4 Port 10G SFP+ PCI-E x8 Ethernet card. Based on Intel X710-AMI | |||
| Network and Cables | AOC-STG-i2T | 1 | 2 Port 10G RJ45 PCI-E x8 Ethernet card. Based on Intel X540 | |||
| Network and Cables | AOC-S25G-B2S | $ 230.00 | 1 | 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Broadcom BCM57414 | ||
| Network and Cables | AOC-S25G-M2S | $ 204.00 | 1 | 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Mellanox ConnectX-4 LX EN | ||
| Network and Cables | AOC-MCX4121A-ACAT | 1 | 2 Port 25G SFP28 PCI-E X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN | |||
| Network and Cables | AOC-S40G-I1Q | $ 337.00 | 1 | 1 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 | ||
| Network and Cables | AOC-S40G-I2Q | $ 377.00 | 1 | 2 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 | ||
| Network and Cables | AOC-MCX456A-ECAT | 1 | 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-4 VPI | |||
| Network and Cables | AOC-MCX556A-ECAT | $ 1,048.00 | 1 | 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-5 VPI | ||
| Network and Cables | CBL-NTWK-0944-MS28C30M | $ 111.00 | 1 | Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,3M,Mellanox | ||
| Network and Cables | CBL-NTWK-0944-MS28C20M | 1 | Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,2M,Mellanox | |||
| Network and Cables | AOC-E10GSFPSR | $ 168.50 | 1 | Ethernet Transceiver, SFP+ 1000Base-SX / 10GBase-SR | ||
| Network and Cables | CBL-NTWK-0446-01 | $ 96.00 | 1 | Ethernet Cable, QSFP, 40GbE, PASSIVE, 28 AWG, 3M | ||
| Network and Cables | CBL-NTWK-0942-MQ28E20M | 1 | IB Cable, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
