| Main Specifications |
| Built-in Devices | X11DGO-T |
| Dimensions (WxDxH) | Height 7.0" (178mm) x Width 17.6" (447mm) x Depth 31.7" (805mm) |
| Color | Black |
| Form Factor | 4U Rackmountable - CSE-R422BG-1 - Rackmount Kit (MCP-290-00057-0N) |
| Device Type | SuperServer |
| Weight | Net Weight: 80 lbs (36.2 kg) - Gross Weight: 135 lbs (61.2 kg) |
| Key Features | Big Data Analytics |
| High-performance Computing |
| Research Lab/National Lab |
| Astrophysics, Business Intelligence |
| Processor |
| Cache | Up to 28 Cores |
| Compatible processor | Support CPU TDP 70-205W |
| 2nd Gen Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s |
| Compatible Socket | Dual Socket P (LGA 3647) |
| GPU/MIC Support | NVIDIA Tesla P100 SXM2 GPU |
| System Memory |

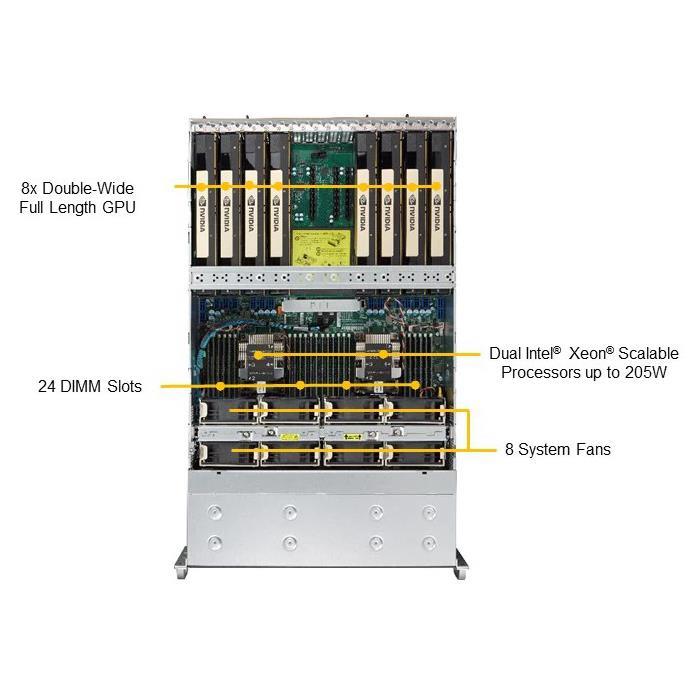

| Memory Capacity | 24 DIMM slots |
| Up to 6TB ECC 3DS LRDIMM DDR4-2933MHz |
| Cache Memory |
| Memory Type | 2933MHz ECC DDR4 SDRAM |
| On-Board Devices |
| Chipset | Intel C621 chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2500 BMC |
| Network Controllers | Dual Port 10GBase-T from Intel X540 Ethernet Controller |
| USB | 2 USB 3.0 ports (front) |
| Input / Output |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| 8 SATA3 (6Gbps) ports |
| Others | 1 COM port (header) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 10GBase-T LAN ports |
| VGA | 1 VGA Connector |
| Management |
| Software | Intel Node Manager, IPMI 2.0, KVM with dedicated LAN, SSM, SPM, SUM, SuperDoctor 5, Watchdog |
| System BIOS |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices |
| Drive Bays |
| Hot-swap | 16 Hot-swap 2.5" SAS/SATA drive bays |
| Expansion / Connectivity |

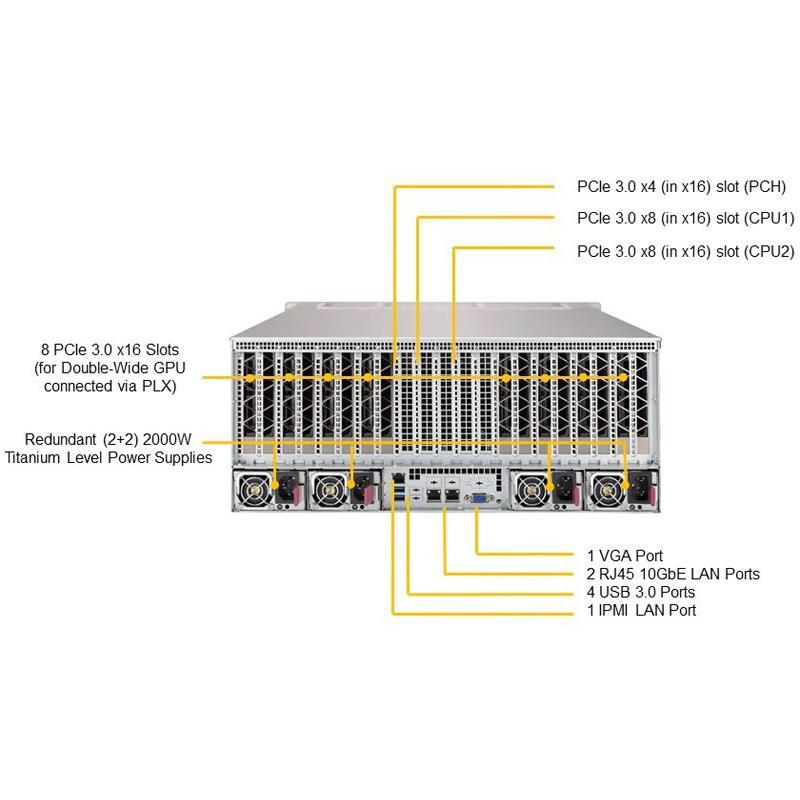

| Expansion Slots Total (Free) | 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA) slots |
| 2 PCI-E 3.0 x16 (LP, CPU tray) slots |
| System Cooling |
| Fans | 8x 92mm Cooling Fans |
| Power Supply |
| Certification | 80PLUS Titanium Level |
| Power Supply | 2200W Redundant Titanium Level Power Supplies with PMBus |
| 4x PWS-2K21A-2R, 4x PWS-DF004-1F |
| Miscellaneous |
| Compliant Standards | RoHS Compliant |
| Key Applications | Artificial IntelligencE |
| Environmental Parameters |
| Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40C to 60C (-40F to 140F) |
| Operating Temperature: 10C ~ 35C (50F ~ 95F) |
| Parts List - (Items Included) |
| Backplane | 1x BPN-MB-R422, 1x BPN-SAS3-213A-N8 |
| Heatsink / Retention | 2x SNK-P0068APS4, 8x SNK-P4003P |

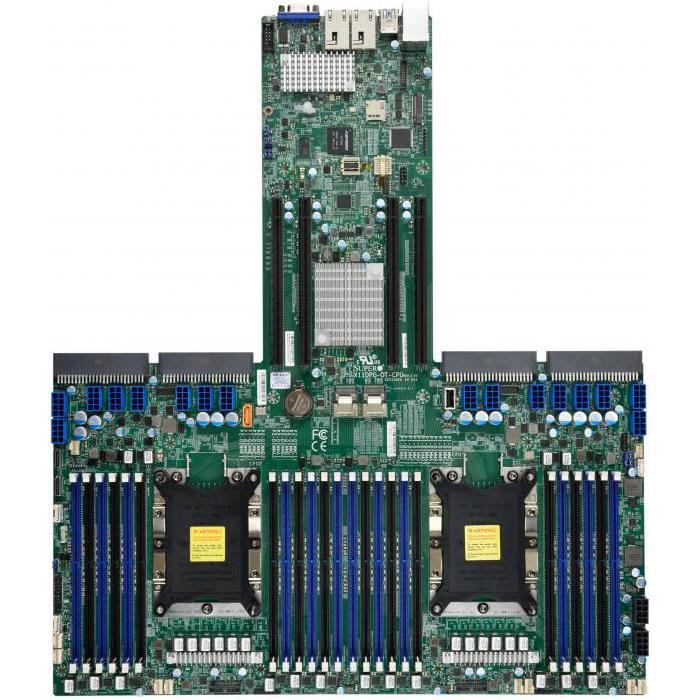

| Motherboard / Chassis | 1x MBD-X11DGO-T / 1x CSE-R422BG-1 |
| Parts | 1x MCP-220-42202-0N-PACK |
| Parts List |
| Cables | 4x CBL-0174L, 3x CBL-PWEX-0979, 2x CBL-SAST-0550, 4x CBL-SAST-0935-1 |
