- Supermicro SYS-E100-13AD-E IoT 3.5" SBC Embedded Intel Core i5-1245UE Processor

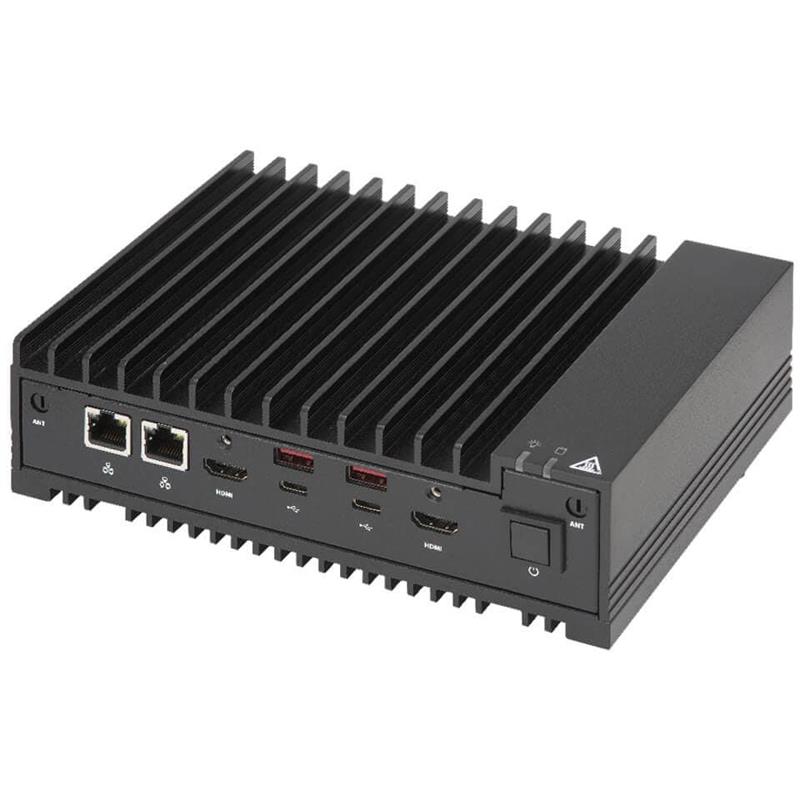

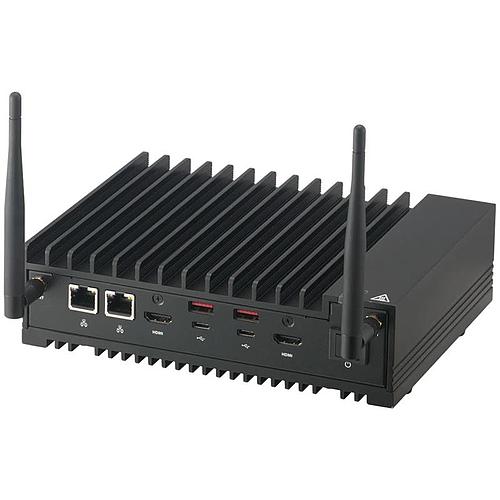

Supermicro SYS-E100-13AD-E IoT 3.5" SBC Embedded Intel Core i5-1245UE Processor
• Industrial Automation, Retail
• Smart Medical Expert Systems
• Digital Signage Kiosk, Interactive info system
• IoT Gateway for Smart Factory
• Smart Building, Security and Surveillance
Barebone 3.5" SBC, Embedded Intel Core i5-1245UE Processor 12th Generation, 4.40GHz 10-Core/12 thread. Up to 64GB in 2 DIMM slots, SO-DIMM, Intel System on Chip, On-Board: Intel 600 Series Controller for 1 SATA3 Port, M.2 M/B/E-Key with Nano SIM Card Slot, Network Connectivity: 2x RJ45 2.5 Gigabit Ethernet LAN Port, 84W 12V Lockable DC Power Adapter Without Power Cord - (SYS-E100-13AD-E + X13SAN-E-WOHS)
1. Integrated with Intel® Wi-Fi 6E AX210 Gig+, supporting Wi-Fi 4,5,6, 6E R2 and Bluetooth® 5.3
2. Alder Lake-U 12th Generation Intel® Core™ i5-1245UE Processor
3. 2x DDR5-4800MT/s Non-ECC SO-DIMM max. 64GB
4. M.2 M/B/E-Key with Nano SIM Card Slot
5. 2x LAN 2.5GbE
6. Fanless (Operaton Temperature 0°C ~ +50°C
7. Quad Independent Displays (Dual HDMI + Dual DP)
Extra Specifications for Supermicro SYS-E100-13AD-E IoT 3.5" SBC Embedded Intel Core i5-1245UE Processor
| System Memory | ||
| Memory Voltage | 1.1V | |
| Memory | View Memory Options | |
| Slot Count: 2 DIMM slots/2 Channels | ||
| Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM | ||
| On-Board Devices | ||
| Chipset | intel System on Chip | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 2.5GbE with Intel® I225-IT | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 2 RJ45 2.5 GbE LAN port(s) (Intel® I225-IT) | |
| USB | 2 USB 3.2 Gen1 Type-C port(s) (front) | |
| 2 USB 3.2 Gen1 Type-A port(s) (front) | ||
| 4 USB 2.0 Type-A port(s) (Rear) | ||
| Video | 1 HDMI 2.0b port(s) (Front) | |
| 1 HDMI 1.4b port(s) (Front) | ||
| 2 Mini-DP 1.4 port(s) (Front) | ||
| Serial | 4 COM port(s) (Rear) | |
| TPM | 1 TPM Onboard/port 80 | |
| System BIOS | ||
| BIOS Type | AMIUEFI | |
| BIOS Features | PCI F/W 3.0 | |
| ACPI 6.4 | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| Front Panel | ||
| Buttons | Power On/Off | |
| LED | LAN1 activity | |
| LAN2 activity | ||
| Power status | ||
| HDD Status | ||
| Product SKUs | ||
| Product SKUs | SYS-E100-13AD-E | |
| Motherboard | ||
| Motherboard | Super X13SAN-E-WOHS | |
| Processor | ||
| CPU | Single FCBGA-1744 | |
| Intel® Core™ i5-1245UE | ||
| Core Count | Up to 10C/20T; Up to 12MB Cache | |
| Note | Supports up to 15W TDP CPUs (Air Cooled) | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI Power Management | |
| CPU thermal trip support for processor protection | ||
| DC 12V~24V Wide power range input | ||
| Control of power-on for recovery from AC power loss | ||
| Force power-on by jumper | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| Chassis | ||
| Form Factor | Fanless Embedded | |
| Model | CSE-E101-04 | |
| Dimensions and Weight | ||
| Height | 1.73" (44 mm) | |
| Width | 7.68" (195 mm) | |
| Depth | 5.94" (150 mm) | |
| Package | 5.12" (H) x 11.81" (W) x 11" (D) | |
| Weight | Gross Weight: 4.3 lbs (1.95 kg) | |
| Net Weight: 2.16 lbs (0.98 kg) | ||
| Palletized Packing (W x H x L) | 54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) | |
| Available Color | Black | |
| Drive Bays / Storage | ||
| M.2 | View M.2 Options | |
| 1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2242/2280) | ||
| 1 M.2 SATA slot(s) (B-key 2242/2280; USB 3.0) | ||
| System Cooling | ||
| Fans | N/A | |
| Power Supply | ||
| AC Input | 84W: 100-240Vac / 47-63Hz | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SAN-E-WOHS | 1 | Super X13SAN-E-WOHS Motherboard | |
| Motherboard / Chassis | CSE-E101-04 | 1 | Fanless Embedded Chassis | |
| Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Cable | CBL-CUSB-0985 | 2 | USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CM | |
| Cable | CBL-CUSB-1047 | 1 | SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWG | |
| Cable | CBL-OTHR-1046 | 1 | 2x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG | |
| Power Supply | MCP-250-10137-0N | 1 | 84W Lockable AC to DC power adapter w/o power cord - EN62368 | |
| Heatsink / Retention | MCP-350-10103-0N | 1 | for X13SAN in system | |
| Manual | MNL-2622-QRG | 1 | E100-13AD-H/E/L/C Quick Reference Guide |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Audio Kit | MCP-280-10001-0B | $ 24.50 | 1 | Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS | ||
| Din Rail Kit | MCP-290-10201-0N | 1 | CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail | |||
| Thermal Solution | MCP-270-10105-0B | $ 110.50 | 1 | FIN base bottom cover for M.2 NMVe | ||
| Thermal Solution | MCP-270-10105-1B | 1 | FIN base bottom cover for HAILO-8 M.2 Module | |||
| WiFi Certificate | AOC-ANTE-WFRP-01 | 2 | WiFi 5/6/6E ANT, SMA R.P, Freq. 2.4-2.5/5.15-7.125 GHz | |||
| WiFi Certificate | AOC-CSMA-MRPI4-20 | 2 | SMA R.P/Male pin to IPEX MHF-IV for OD 1.13mm CBL, 20cm | |||
| WiFi Certificate | AOC-WLAN-210NGWGII | 1 | Intel® Wi-Fi 6E AX210 (Gig+), 2230, 2x2 AX R2 (6GHz)+BT, vPro |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
