Supermicro SYS-5039MA16-H12RFT MicroCloud Barebone Single CPU, 12-Node

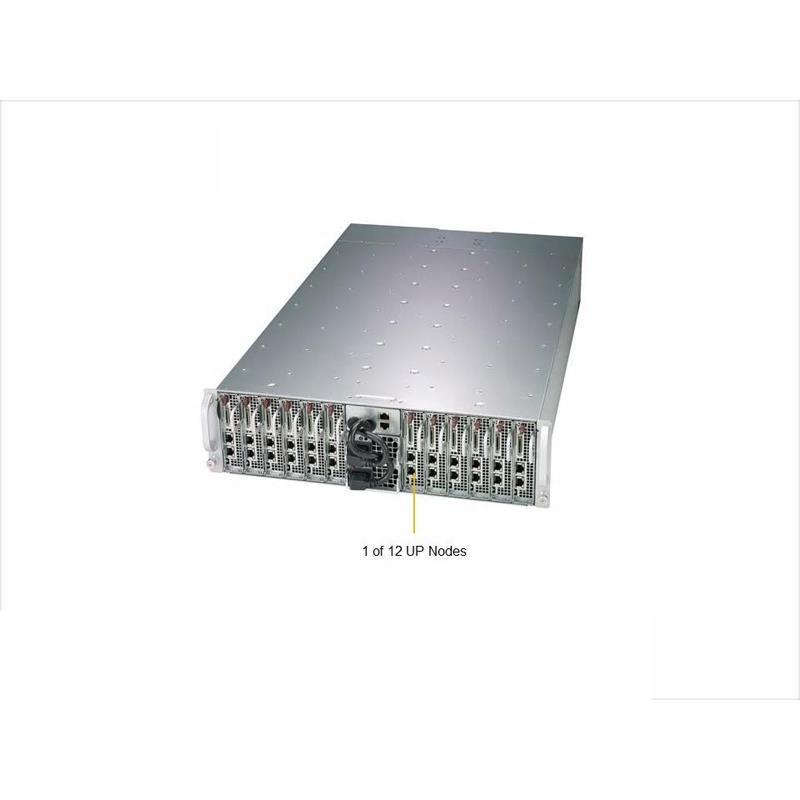

Barebone 3U MicroCloud with 12x Modular UP Nodes - Per Node : Single Socket FCBGA1310 with Intel Atom Processor C3955

Supermicro SYS-5039MA16-H12RFT MicroCloud Barebone Single CPU, 12-Node

• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking
• Corporate-WINS, DNS, Print, Login

Barebone 3U MicroCloud with 12x Modular UP Nodes - Per Node : Single Socket FCBGA1310 with Intel Atom Processor C3955, Up to 128GB DDR4 ECC UDIMM up to 2400MHz (4 DIMM sockets) - On-Board (per node) : SATA3 (6Gbps) via C3000 controller, IPMI 2.0, 2x 10GBase-T ports, VGA - Includes (per node) : 2x 3.5in or 4x 2.5in SATA3 HDDs OR 2x 2.5in NVMe + 2x 3.5in SATA3 drives or 2x 2.5in NVMe + 1x 3.5in SATA3, 1x Heatsink, - Included in system : 2000W Redundant Titanium Level Power Supply, A2SD1-3955F Motherboard, CSE-939HE-R2K04BP 3U Chassis - (Black)

This product is no longer available.

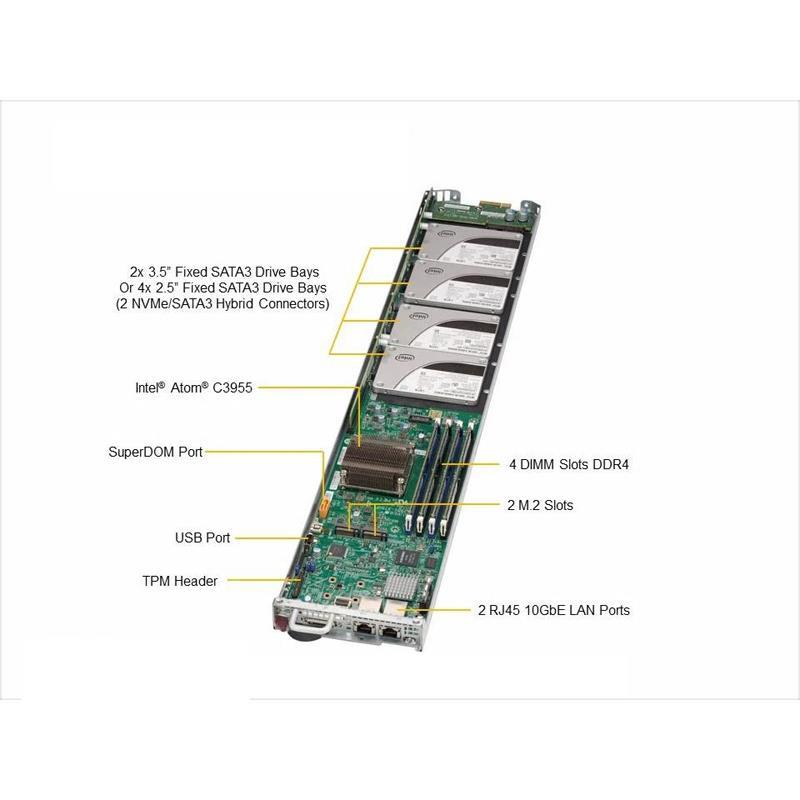

1. Single socket FCBGA1310 supports Intel® Atom® Processor C3955, CPU TDP support 32W
2. 2x 3.5" SATA3 or 4x 2.5" SATA3 or 2x 2.5" NVME + 2x 2.5" SATA3 or 2x 2.5" NVME + 1x 3.5" SATA3
3. Up to 128GB DDR4 VLP ECC RDIMM or 64GB ECC UDIMM, 2400MHz support in 4 slots

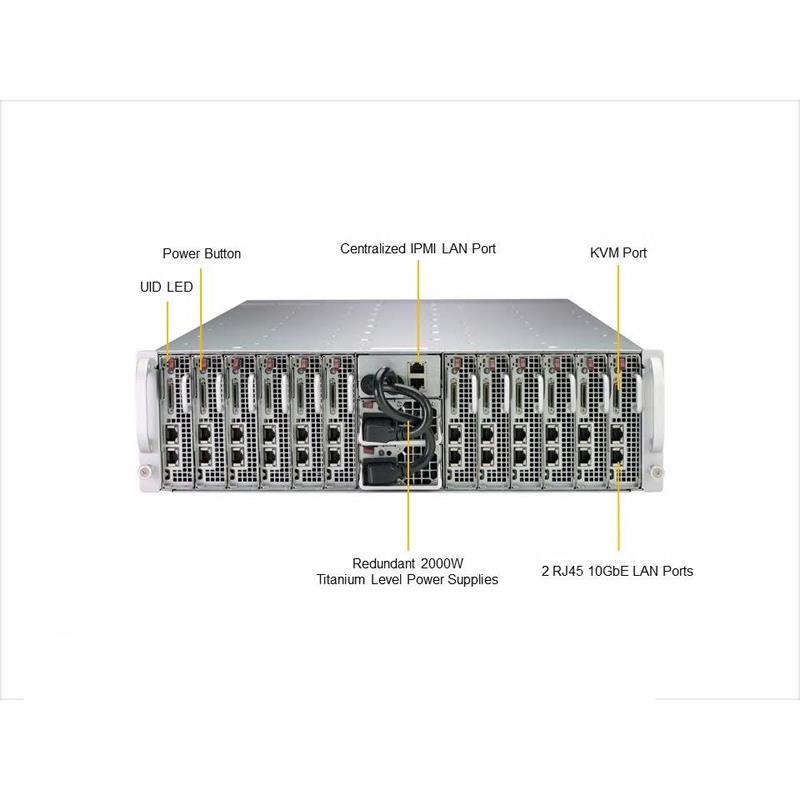

4. 2x 10GBase-T LAN ports via C3000 SoC
5. 4 heavy duty 9cm hot-swap fans with optimal cooling zone (per system)
6. 2000W Redundant power supplies Titanium Level Certified (per system)

Extra Specifications for Supermicro SYS-5039MA16-H12RFT MicroCloud Barebone Single CPU, 12-Node

Processor/Cache
CPU	Intel® Atom® Processor C3955
	Single Socket FCBGA1310 supported, CPU TDP support 32W
Cores / Cache	16 cores, 16 threads / 16MB cache
System Memory (per node)
Memory Capacity	4x 288-pin DDR4 DIMM slots
	Up to 128GB DDR4 VLP Registered ECC memory (RDIMM) in 4 DIMM slots
	Up to 64GB DDR4 VLP ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type	2400MHz/2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs
DIMM Sizes	8GB, 16GB, 32GB
Memory Voltage	1.2V, 1.35V
On-Board Devices (per node)
Chipset	Intel® C3000 chipset
SATA	SATA3 (6Gbps) via SoC
Graphics	ASPEED AST2400 BMC
Input / Output (per node)
SATA	4 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T ports
Video	1 VGA port
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
Front Window (each node)
Switch	Power / UID
Chassis
Form Factor	3U
Model	CSE-939HE-R2K04BP
Dimensions and Weight
Height	5.21" (132.5 mm)
Width	17.5" (444.5 mm)
Depth	29.5" (749.3 mm)
Package	16.1" (H) x 28.35" (W) x 42.36" (D)
Weight	Net Weight: 95lbs (43.09kg)
	Net Weight w/ 2.5" HDDs: 115lbs (52.16kg)
	Net Weight w/ 3.5" HDDs: 132lbs (59.87kg)
	Gross Weight: 125lbs (56.70kg)
Color	Black
Drive Bays (per node)
Internal	Enterprise SATA HDD only recommended
	2x 3.5" SATA3 OR 4x 2.5" SATA3 HDDs OR 2x 2.5" NVMe + 2x 3.5" SATA3 OR 2x 2.5" NVMe + 1x 3.5" SATA3; up to 48x 2.5" drives total
System Cooling

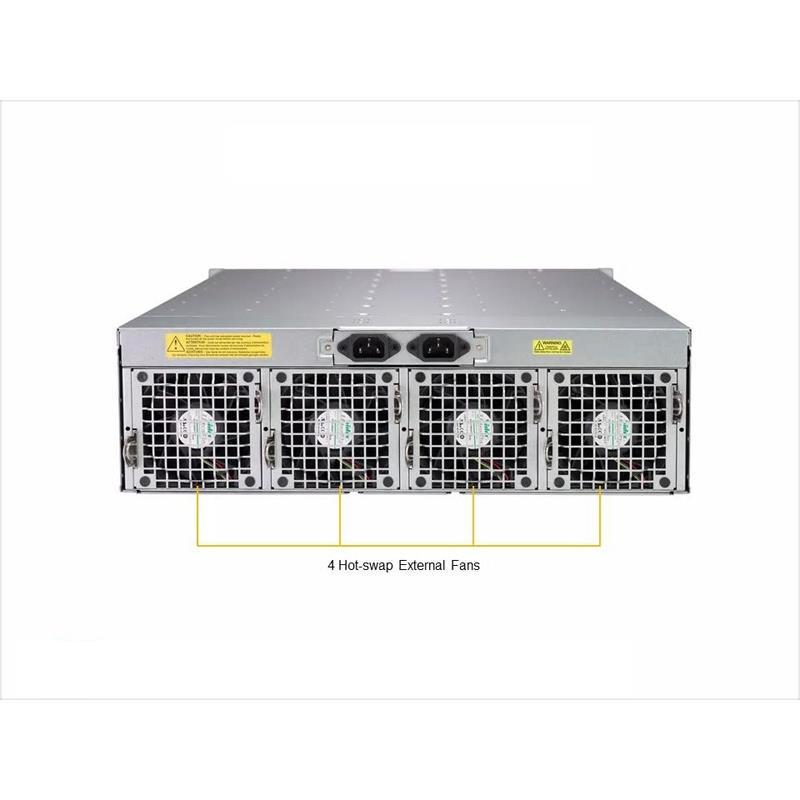

Fans	4 Heavy duty 9cm fans with optimal cooling zone
Power Supply (76mm Width)
Power Supply (76mm Width)	2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow
Total Output Power	1000W: 100 – 127Vac
	1800W: 200 – 220Vac
	1980W: 220 – 230Vac
	2000W: 230 – 240Vac
	2000W: 200 – 240Vac (UL/CUL only)
Dimension (W x H x L)	76 x 40 x 336 mm
Input	1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz
	1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
	1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
	2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
	2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac)
	Max: 150A / Min: 0A (200Vac-220Vac)
	Max: 165A / Min: 0A (220Vac-230Vac)
	Max: 166.7A / Min: 0A (230Vac-240Vac)
	Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb	Max: 1A / Min: 0A
Output Type	27 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]
	[ Test Report ]
PC Health Monitoring
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, HT, Memory, VBAT
Temperature	CPU thermal trip support
Other Features	RoHS, UID
Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F)
	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Product SKUs
Product SKUs	SYS-5039MA16-H12RFT (Black)
Motherboard
Motherboard	Super A2SD1-3955F

Name	Part Number	Qty.	Description
Motherboard / Chassis	MBD-A2SD1-3955F	12	Super A2SD1-3955F Motherboard
Motherboard / Chassis	CSE-939HE-R2K04BP	1	3U Chassis
Add-on Card / Module	AOM-BPN-MC12S-P	12	AOM-BPN-MC12S
Add-on Card / Module	AOM-GEM-001-P	1	[NR]AOM-GEM-001-O-P
Add-on Card / Module	AOM-LAN-MC12S-P	1	[NR]AOM-LAN-MC12S-P
Add-on Card / Module	AOM-PDB-MC12S-P	12	AOM-PDB-MC12S
Backplane	BPN-SAS-939HS	1	12-port 3U (CSE-939HS) 12-node MicroCloud hot swappable midplane
	Cable 1	CBL-0218L	1	USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2	CBL-PWCD-0578	2	PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
	Rail set	MCP-290-41803-0N	1 set	Rail set support 28.5" to 33.7" depth rail,RoHS/REACH,PBF
	Power Supply	PWS-2K04F-1R	2	AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, 360x76x40 mm,HF,RoHS/REACH

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
