| Processor/Cache |
| CPU | Intel® Atom® Processor C3750 |
| Single Socket FCBGA1310 supported, CPU TDP support 21W |
| Cores / Cache | 8 cores, 8 threads / 16MB cache |
| System Memory (per node) |
| Memory Capacity | 4x 288-pin DDR4 DIMM slots |
| Up to 128GB DDR4 VLP Registered ECC memory (RDIMM) in 4 DIMM slots |
| Up to 64GB DDR4 VLP ECC Un-Buffered memory (UDIMM) in 4 DIMM slots |
| Memory Type | 2400MHz/2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs |
| DIMM Sizes | 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V, 1.35V |
| On-Board Devices (per node) |
| Chipset | Intel® C3000 chipset |
| SATA | SATA3 (6Gbps) via SoC |
| Graphics | ASPEED AST2400 BMC |
| Input / Output (per node) |
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T ports |
| Video | 1 VGA port |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Front Window (each node) |
| Switch | Power / UID |
| Chassis |
| Form Factor | 3U |
| Model | CSE-939HE-R2K04BP |
| Dimensions and Weight |
| Height | 5.21" (132.5 mm) |
| Width | 17.5" (444.5 mm) |
| Depth | 29.5" (749.3 mm) |
| Package | 16.1" (H) x 28.35" (W) x 42.36" (D) |
| Weight | Net Weight: 95lbs (43.09kg) |
| Net Weight w/ 2.5" HDDs: 115lbs (52.16kg) |
| Net Weight w/ 3.5" HDDs: 132lbs (59.87kg) |
| Gross Weight: 125lbs (56.70kg) |
| Color | Black |
| Drive Bays (per node) |
| Internal | Enterprise SATA HDD only recommended |
| 2x 3.5" SATA3 OR 4x 2.5" SATA3 HDDs OR 2x 2.5" NVMe + 2x 3.5" SATA3 OR 2x 2.5" NVMe + 1x 3.5" SATA3; up to 48x 2.5" drives total |
| System Cooling |
| Fans | 4 Heavy duty 9cm fans with optimal cooling zone |
| Power Supply (76mm Width) |
| Power Supply (76mm Width) | 2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow |
| Total Output Power | 1000W: 100 – 127Vac |
| 1800W: 200 – 220Vac |
| 1980W: 220 – 230Vac |
| 2000W: 230 – 240Vac |
| 2000W: 200 – 240Vac (UL/CUL only) |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| Input | 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz |
| 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz |
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz |
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz |
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) |
| Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 166.7A / Min: 0A (230Vac-240Vac) |
| Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) |
| +5Vsb | Max: 1A / Min: 0A |
| Output Type | 27 Pairs Gold Finger Connector |
| Certification | Titanium Level [ Test Report ] |
| [ Test Report ] |
| PC Health Monitoring |
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, HT, Memory, VBAT |
| Temperature | CPU thermal trip support |
| Other Features | RoHS, UID |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

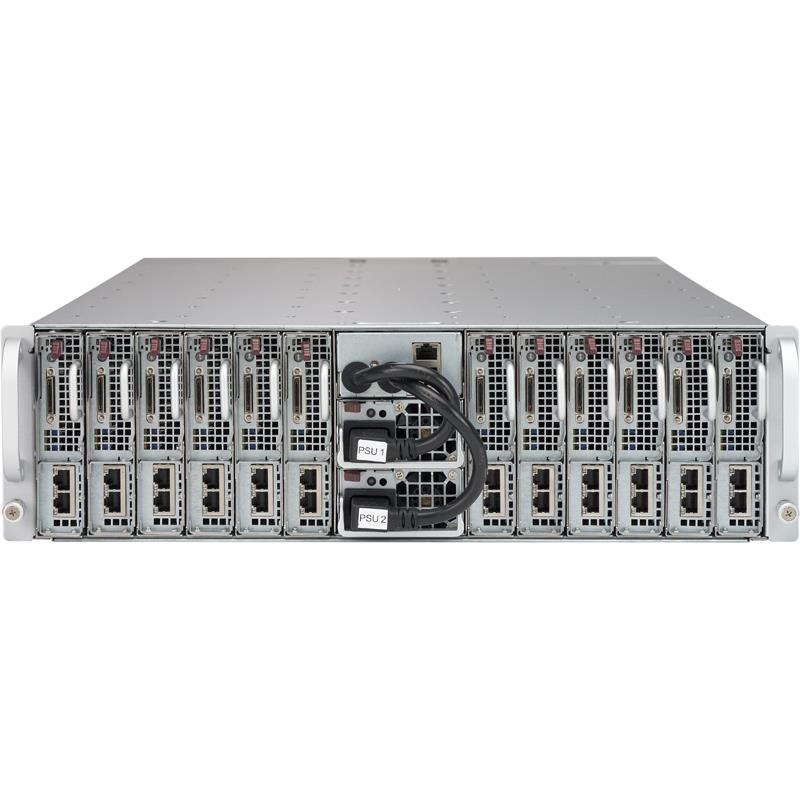

| Product SKUs | SYS-5039MA8-H12RFT (Black) |
| Motherboard |
| Motherboard | Super A2SD1-3750F |
