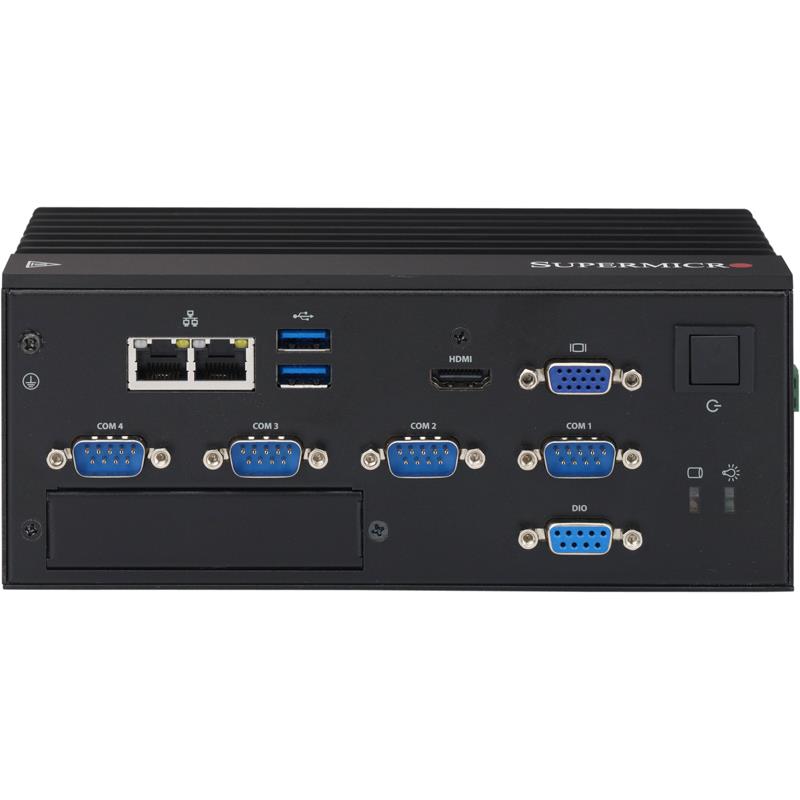

Supermicro SYS-E100-9AP-IA 3.5in SBC Compact Barebone Embedded Intel Atom E3940 Processor
• IoT Gateway for Smart
• Factory/Building
• Machine Automation
• Industrial Application
Barebone 3.5in SBC SuperServer, Embedded Intel Atom E3940 Processor, 1.60GHz 4-Core/4 Thread. Up to 8GB DDR3L Non-ECC memory, System-on-Chip, Dual GbE LAN ports, Lockable 60W Power adapter (CSE-E101-IA + MBD-A2SAN-E)
1. Intel® Atom® Processor E3940, Single Socket FCBGA 1296
2. System-on-Chip
3. 1 Full size Mini-PCIe 1 M.2 2280 B-Key for SATA or PCIe SSD
4. 1 non-ECC DDR3L SODIMM; up to 8GB
5. Dual GbE LAN ports via Intel I210-IT

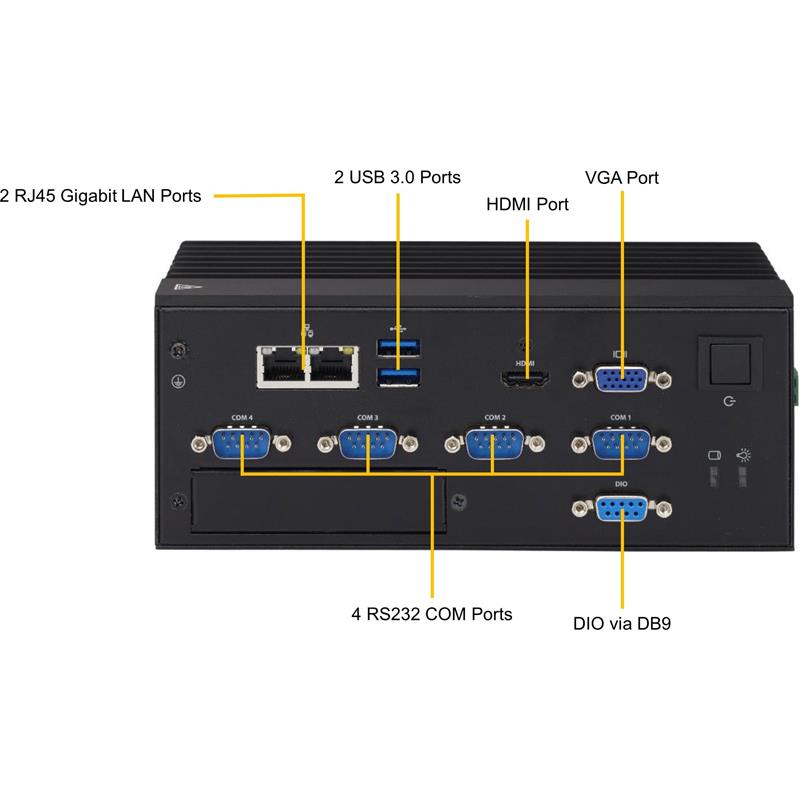

6. 1 HDMI, 1 VGA, 2 USB 3.0, 4 USB 2.0
7. 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control, 1 DIO via DB9
8. Fanless design
9. 12V DC 60W power adapter with Terminal Block, support 9-36V DC-in
Extra Specifications for Supermicro SYS-E100-9AP-IA 3.5in SBC Compact Barebone Embedded Intel Atom E3940 Processor
| Motherboard | ||

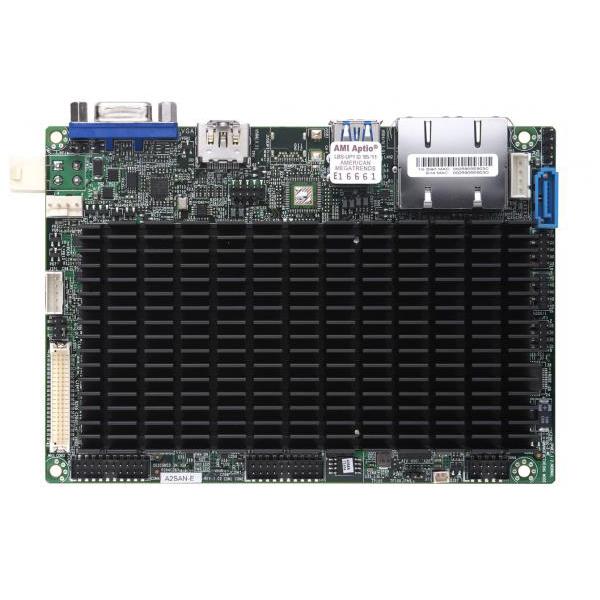

| Motherboard | Super A2SAN-E | |
| Processor/Cache | ||
| CPU | System-on-Chip | |
| FCBGA 1296 | ||
| CPU TDP support 9W | ||
| Intel® Atom® Processor E3940 | ||
| System Memory | ||
| Memory Capacity | 1x 204-pin DDR3L SO-DIMM socket | |
| Memory Type | 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs | |
| DIMM Sizes | 8GB, 4GB, 2GB | |
| Memory Voltage | 1.35 V | |
| On-Board Devices | ||
| SATA | SoC controller for 1 SATA3 (6Gbps) | |
| Network Controllers | Dual GbE LAN with Intel i210-IT controller | |
| Input / Output | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB | 2 USB 3.0 (front) | |
| 4 USB 2.0 (side) | ||
| COM Port | 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control | |
| 8-bit configurable GPIO via DB9 | ||
| Video | 1 VGA, 1 HDMI | |
| Chassis | ||
| Form Factor | 3.5" SBC | |
| Model | CSE-E101-IA | |
| Dimensions | ||

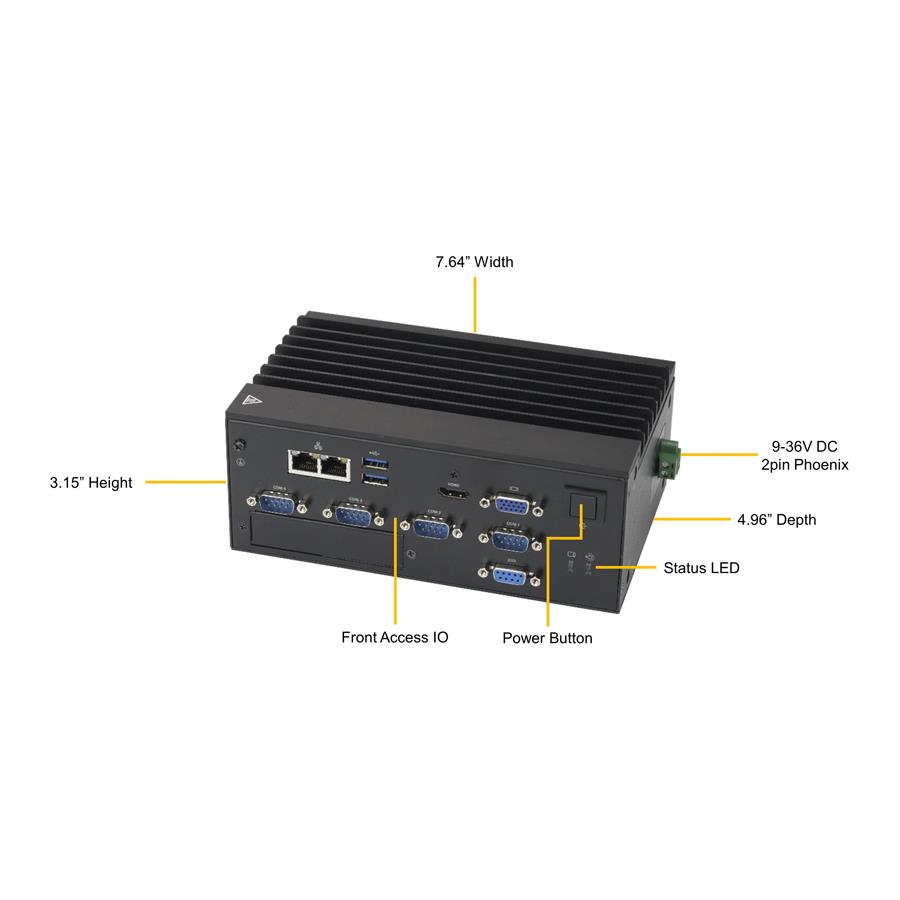

| Width | 7.64" (194mm) / 9.5" (241mm) - pkg. | |
| Height | 3.15" (80mm) / 5.5" (140mm) - pkg. | |
| Depth | 4.96" (126mm) / 8" (203mm) - pkg. | |
| Weight | Gross Weight: 3.97 lbs (1.8 kg) | |
| Net Weight: 3.31 lbs (1.5 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED and Hard drive activity LED | |
| Expansion Slots | ||
| PCI-Express | 1 Full size Mini-PCIe (USB 2.0/PCIe) | |
| 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) | ||
| Drive Bays | ||
| Internal | 1 SATA SSD (SATA3) | |
| System Cooling | ||
| Fans | Fan-less design | |
| Power Supply | ||
| Power Supply | 12V DC 60W power adapter with Terminal Block | |
| System BIOS | ||
| BIOS Type | 64Mb SPI Flash EEPROM with AMI UEFI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| UEFI | ||
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| Power Configurations | ACPI Power Management | |
| Control of power-on for recovery from AC power loss | ||
| ATX Power connector | ||
| CPU thermal trip support for processor protection | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) The use of industrial grade wide-temperature peripherals is required to meet 60°C operating temperature. | ||
| Operating Temperature: -20°C to 60°C (-4°F to 140°F) with 0.7 m/s air flow | ||
| Product SKUs | ||
| Product SKUs | SuperServer E100-9AP-IA (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A2SAN-E | 1 | Super A2SAN-E Motherboard | |
| Motherboard / Chassis | CSE-E101-IA | 1 | Fanless 3.5" SBC embedded chassis | |
| Power Adapter | MCP-250-10134-0N | 1 | 60W 12V 3.33A, AC to DC power adapter w/ terminal block (0-40°C) |
