- Supermicro SYS-E102-9AP-L 3.5" SBC IoT Compact Barebone Embedded Intel Atom E3930 Processor

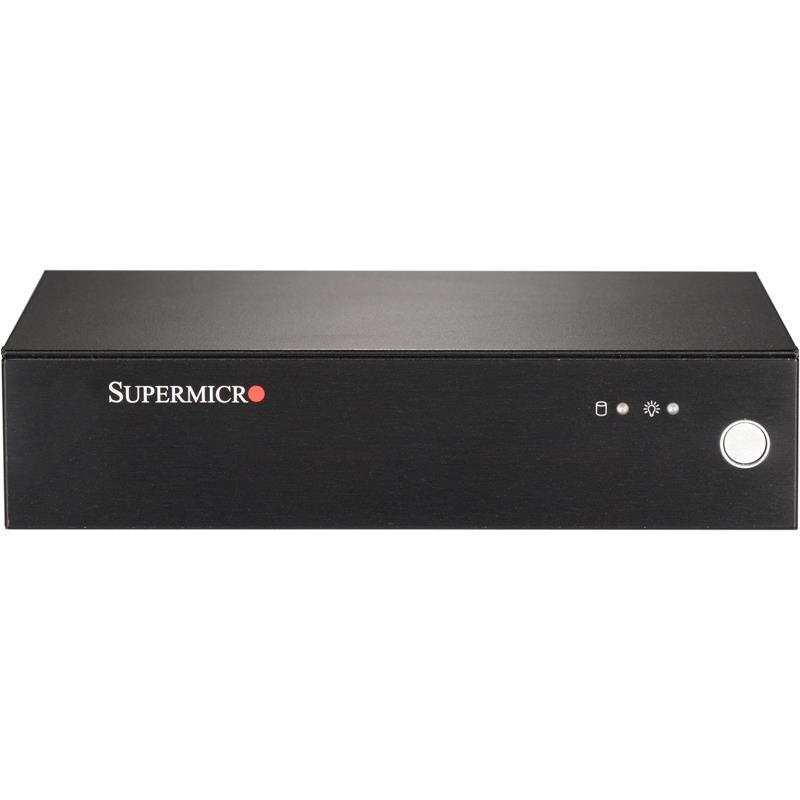

Supermicro SYS-E102-9AP-L 3.5" SBC IoT Compact Barebone Embedded Intel Atom E3930 Processor
• Embedded Applications
Embedded/IoT System with Intel Atom E3930 Processor, 1.30GHz 2-Core/2 Thread. Up to 8GB Unbuffered Non-ECC SO-DIMM DDR3L 1866MHz in 1x SO-DIMM socket, 1 M.2 B-Key 2280, 1 Full Mini-PCIe. Dual GbE LAN with Intel i210IT, 1 Display Port, 1 HDMI port - Fanless Design (MBD-A2SAN-L + CSE-E102 Chassis)
This product is no longer available.
1. Intel® Atom® processor E3930 (6.5W, 2C) Single socket FCBGA 1296
2. System on Chip
3. 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
4. Up to 8GB unbuffered non-ECC SO- DIMM, DDR3L-1866MHz, in 1 socket
5. Dual GbE LAN w/ Intel i210IT
6. 4 COM (RS-232/422/485), 2 USB 3.0
7. 1 VGA port, 1 HDMI port
8. Passive CPU heat sink and 1x 40mm chassis fans
9. Lockable 12V DC 40W power adapter
Extra Specifications for Supermicro SYS-E102-9AP-L 3.5" SBC IoT Compact Barebone Embedded Intel Atom E3930 Processor
| Motherboard | ||
| Motherboard | Super A2SAN-L | |
| Processor/Cache | ||
| CPU | Intel® Atom® Processor E3930 | |
| Single Socket FCBGA 1296 supported | ||
| CPU TDP support 6.5W | ||
| Cores / Cache | 2 cores, 2 threads | |
| System Memory | ||
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM slot | |
| Memory Type | DDR3L up to 1866MHz (8GB) | |
| DIMM Sizes | 8GB, 4GB, 2GB | |
| Memory Voltage | 1.35V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Intel® I210IT | |
| Audio | ALC 888S HD Audio | |
| Video | Intel® HD Graphics 620 | |
| Input / Output | ||
| USB | 2 USB 3.0 | |
| Video Output | 1 VGA port | |
| 1 HDMI port | ||
| COM Port | 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (optional) | |
| Audio | 1 HD Audio header (Mic-in/Line-Out) | |
| Chassis | ||
| Form Factor | 3.5" SBC | |
| Model | CSE-E102 | |
| Dimensions | ||
| Width | 7.48" (190mm) / 11.81" (300mm) - pkg. | |
| Height | 1.72" (44mm) / 5.12" (130mm) - pkg. | |
| Depth | 4.72" (120mm) / 11" (279mm) - pkg. | |
| Weight | Net Weight: 2.65 lbs (1.2 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED and Hard drive activity LED | |
| Expansion Slots | ||
| PCI-Express | 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2) | |
| M.2 | Form Factor: B-Key 2280 | |
| Interface: SATA, PCIe 2.0 x1 and USB 2.0 | ||
| Drive Bays | ||
| Internal | 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) | |
| 1 SATA 3.0 for 2.5" 7mm SATA HDD/SSD | ||
| System Cooling | ||
| Fans | 1x 40mm chassis fan | |
| Heat Sink | Passive CPU heat sink | |
| Power Supply | ||
| Power Supply | Lockable 12V DC 40W power adapter | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| CPU thermal trip support for processor protection | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer E102-9AP-L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A2SAN-L | 1 | Super A2SAN-L Motherboard | |
| Motherboard / Chassis | CSE-E102 | 1 | Chassis for Embedded 3.5" SBC | |
| Power Adapter | MCP-250-10135-0N | 1 | FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHS |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-CUSB-1045 | 0 | SERIAL, 2x DB9M TO 2X10F/P2.00,INT TO EXT,FLAT, 12CM, 28AWG | |||
| Cable | CBL-PWEX-0982 | $ 17.00 | 0 | PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG | ||
| Cable | CBL-SAST-0881 | $ 17.00 | 0 | SATA,INT,6G,FLAT,ST-RA,25CM,30AWG,BLK,No Latch,RoHS | ||
| Chassis parts | MCP-160-10202-0B | $ 18.00 | 0 | CSE-E102 Optional FP mylar with 4x Comport opening only | ||
| Chassis parts | MCP-160-10203-0B | $ 18.00 | 0 | CSE-E102 Optional FP mylar with 4x comport and Audio port | ||
| Chassis parts | MCP-160-10204-0B | $ 18.00 | 0 | CSE-E102 Optional FP mylar with Audio port only | ||
| Power Adapter | MCP-250-10117-0N | $ 50.50 | 0 | 60W DC power adapter with US power cord 18AWG 6ft | ||
| Power Adapter | MCP-250-10124-0N | 0 | AC to DC 40W lockable power adapter | |||
| IO shield | MCP-260-10202-0B | $ 20.50 | 0 | CSE-E102 I/O shield for X11SSN | ||
| IO shield | MCP-260-10201-0B | $ 24.50 | 0 | CSE-E102 I/O shield for A2SAN and X11SAN | ||
| Chassis parts | MCP-290-10113-0B | $ 27.50 | 0 | wall mount/VESA mount |
