- Supermicro SYS-E50-9AP Compact Embedded Intel Processor Barebone

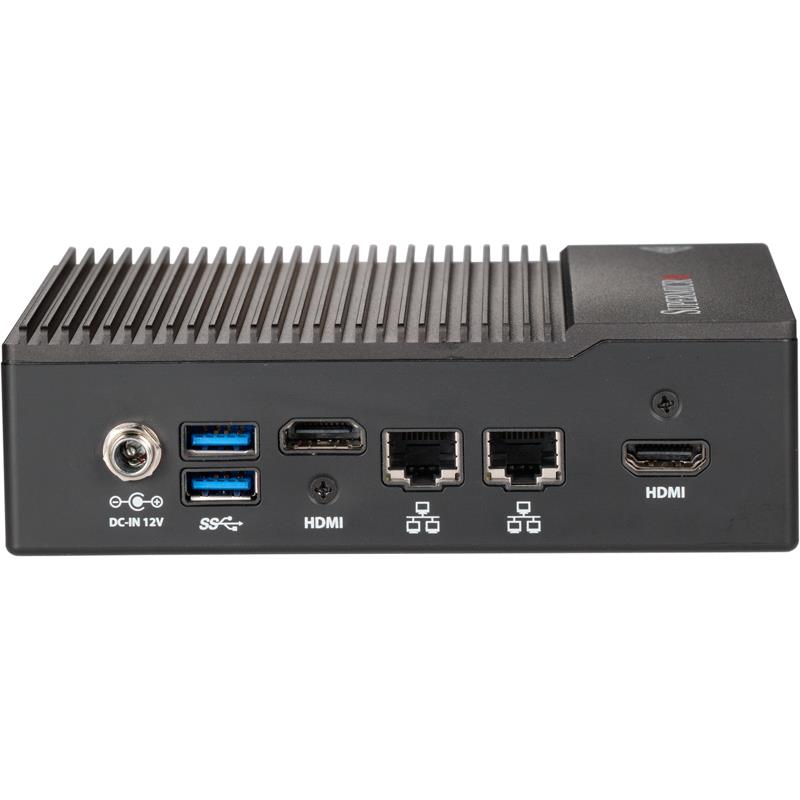

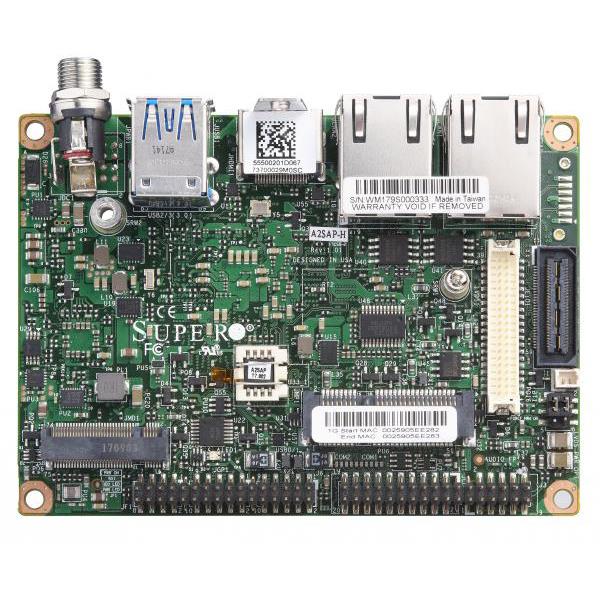

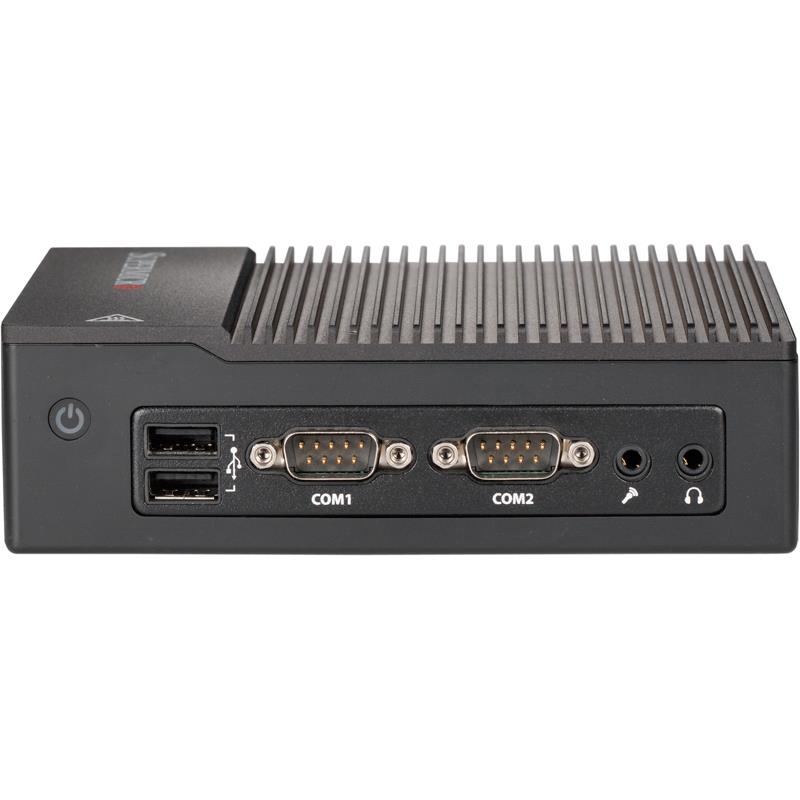

Supermicro SYS-E50-9AP Compact Embedded Intel Processor Barebone
• IoT Gateway
• Commercial Appliance
• IP51 for water/dust proof
Barebone Proprietary, Embedded Intel Atom Processor E3940 Processor, 1.60GHz 4-Core/4 Thread. System-on-Chip, Up to 8GB 1866MHz DDR3L Non-ECC memory, Dual GbE LAN ports, Lockable 12v DC 40W Power adapter (CSE-E50 + MBD-A2SAP-H)
This product is no longer available.
1. Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296
2. System on Chip
3. 1 SATA 3.0 for 7mm 2.5" SATA SSD, 1 M.2 B-Key 2242/3042 for SATA SSD
4. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
5. 1 Full size Mini-PCIe, 1 Half size Mini-PCIe, 1 M.2 B-Key 2242/3042, 1 M.2 E-Key 2230
6. Dual LAN with Intel I210-IT
7. 2 USB 3.0, 2 USB 2.0, 2 COM (RS-232/422/485), 1 TPM 2.0 onboard
8. Fanless design
9. Lockable 12V DC 40W power adapter
Extra Specifications for Supermicro SYS-E50-9AP Compact Embedded Intel Processor Barebone
| Motherboard | ||
| Motherboard | Super A2SAP-H | |
| Processor/Cache | ||
| CPU | Intel® Atom® processor E3940 | |
| Single socket FCBGA 1296 | ||
| 9.5W, 4C | ||
| System Memory | ||
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket | |
| Memory Type | DDR3L up to 1866MHz | |
| DIMM Sizes | 8GB, 4GB | |
| Memory Voltage | 1.35 V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210-IT | |
| Audio | ALC 888S HD Audio | |
| Graphics | HDMI (max. resolution up to 3840 x 2160 @ 30Hz) | |
| Intel® HD Graphics | ||
| Input / Output | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports | ||
| Video | 2 HDMI ports | |
| COM | 2 COM (RS-232/422/485) | |
| TPM | 1 TPM 2.0 onboard | |
| Chassis | ||
| Form Factor | Proprietary | |
| Model | CSE-E50 | |
| Dimensions | ||
| Width | 5.82" (148mm) | |
| Height | 1.72" (44mm) | |
| Depth | 4.64" (118mm) | |
| Weight | Gross Weight: 3.52 lbs (1.6 kg) | |
| Net Weight: 2.2 lbs (1 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED (Hard drive activity LED) | |
| Expansion Slots | ||
| PCI-Express | 1 Half size Mini-PCIe | |
| 1 Full size Mini-PCIe | ||
| M.2 | 1 M.2 E-Key 2230 for communication module | |
| 1 M.2 B-Key 2242/3042 for storage | ||
| Drive Bays / Storage | ||
| Internal | 1 SATA 3.0 for 7mm 2.5" SATA SSD OR 1 M.2 B-Key 2242/3042 for SATA SSD | |
| System Cooling | ||
| Fans | Fanless design | |
| Power Supply | ||
| Power Supply | 40W lockable 12V DC power adapter | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature. | ||
| Operating Temperature: -20°C to 50°C (-4°F to 122°F) with 0.7 m/s air flow with M.2 SATA SSD 0°C to 40°C (32°F to 104°F) with HDD | ||
| Product SKUs | ||
| Product SKUs | SuperServer E50-9AP (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A2SAP-H | 1 | Super A2SAP-H Motherboard | |
| Motherboard / Chassis | CSE-E50 | 1 | IP51 Fanless Chassis for 2.5" PICO | |
| Add-on Card / Module | AOM-PICO-01-P | 1 | Add-on I/O Module for Pico-ITX A2SAP and embedded IoT system | |
| Cable 1 | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Parts | MCP-210-05001-0B | 1 | Front IO for CSE-E50 with 2xUSB2.0, 2xCOM | |
| Power Adapter | MCP-250-10135-0N | 1 | 40W 12V 3.33A, AC to DC lockable power adapter (0-40°C) |
