- Supermicro SYS-E50-9AP-WIFI Compact Embedded Intel Processor Barebone

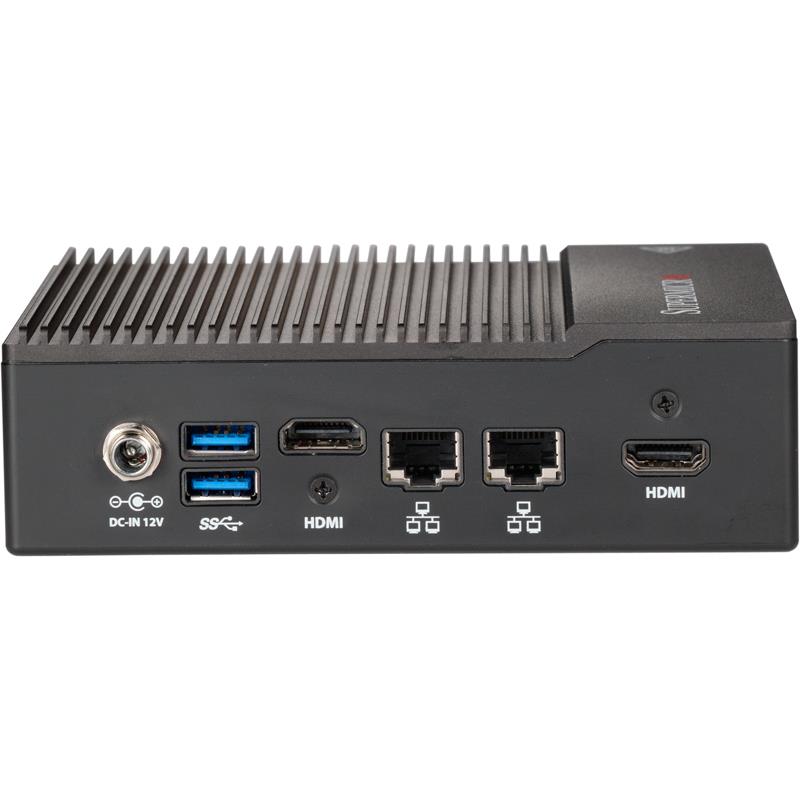

Supermicro SYS-E50-9AP-WIFI Compact Embedded Intel Processor Barebone
• IoT Gateway; Commercial Applications
• Cable-less design for easy maintenance
• Fanless design with palm-size dimension
• Intel Atom CPU E3940; Built-in Wifi and Antenna
Barebone Proprietary, Embedded Intel Atom Processor E3940 Processor, 1.60GHz 4-Core/4 Thread. System-on-Chip, Up to 8GB 1866MHz DDR3L Non-ECC memory, Dual GbE LAN ports + Dual Band Wireless and Bluetooth 4.2, Lockable 12v DC 40W Power adapter (CSE-E50 + MBD-A2SAP-H)
This product is no longer available.
• System on Chip
• Fanless design
• Lockable 12V DC 40W power adapter
• Dual LAN with Intel I210-IT, Dual Band Wireless and Bluetooth 4.2
• Intel Atom processor E3940 (9.5W, 4C) Single socket FCBGA 1296
• 2 USB 3.0, 2 USB 2.0, 2 COM (RS-232/422/485), 1 TPM 2.0 onboard
• Up to 8GB unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket
• 1 SATA 3.0 for 7mm 2.5 SATA SSD, 1 M.2 B-Key 2242/3042 for SATA SSD
• 1 Full size Mini-PCIe, 1 Half size Mini-PCIe, 1 M.2 B-Key 2242/3042, 1 M.2 E-Key 2230
Extra Specifications for Supermicro SYS-E50-9AP-WIFI Compact Embedded Intel Processor Barebone
| Main Specifications | ||
| Built-in Devices | Super A2SAP-H | |
| Device Type | SuperServer | |
| Dimensions (WxDxH) | Width 4.96" (126mm) x Height 1.72" (44mm) x Depth 4.64" (118mm) | |
| Color | Black | |
| Form Factor | Proprietary - CSE-E50 | |
| Type | Intel HD Graphics | |
| Processor | ||
| Compatible processor | Intel Atom processor E3940 - 9.5W, 4C | |
| Compatible Socket | Single socket FCBGA 1296 | |
| System Memory | ||
| DIMM Sizes | 8GB, 4GB | |
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket | |
| Cache Memory | ||
| Memory Type | DDR3L up to 1866MHz | |
| Memory | ||
| Supply Voltage | 1.35 V | |
| Input / Output | ||
| Audio | ALC 888S HD Audio | |
| COM Port | 2 COM (RS-232/422/485) | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| VGA | 2 HDMI ports | |
| Wifi | Dual Band Wireless and Bluetooth 4.2 | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Graphics | HDMI (max. resolution up to 3840 x 2160 @ 30Hz) | |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210-IT | |
| TPM | 1 TPM 2.0 onboard | |
| USB | 2 USB 2.0 ports | |
| 2 USB 3.0 ports (rear) | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| Software | SuperDoctor 5, Watch Dog | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED (Hard drive activity LED) | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 Full size Mini-PCIe | |
| 1 Half size Mini-PCIe | ||
| M.2 | 1 M.2 B-Key 2242/3042 for storage | |
| 1 M.2 E-Key 2230 for communication module | ||
| Drive Bays | ||
| Internal | 1 SATA 3.0 for 7mm 2.5" SATA SSD OR 1 M.2 B-Key 2242/3042 for SATA SSD | |
| System Cooling | ||
| Fans | Fanless design | |
| Power Supply | ||
| Power Supply | 40W lockable 12V DC power adapter | |
| Miscellaneous | ||
| Compliant Standards | RoHS Compliant | |
| Features | Built-in Wifi and Antenna | |
| IP51 with plastic chassis design for water/dust proof | ||
| Cable-less design for easy maintenance | ||
| Fanless design with palm-size dimension | ||
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature: 0C to 50C (32F to 122F) | |
| Environmental Parameters | ||
| Operating Temperature | Non-operating Temperature: -40C to 70C (-40F to 158F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Add-on Card / Module | 1x AOC-WLAN-8265NGWMG, 1x AOM-PICO-01-P | |
| Motherboard / Chassis | 1x MBD-A2SAP-H / 1x CSE-E50 | |
| Parts List | ||
| Cables | 1x CBL-PWCD-0260-IS | |
