- Supermicro SYS-F629P3-RC0B Twin 4U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation

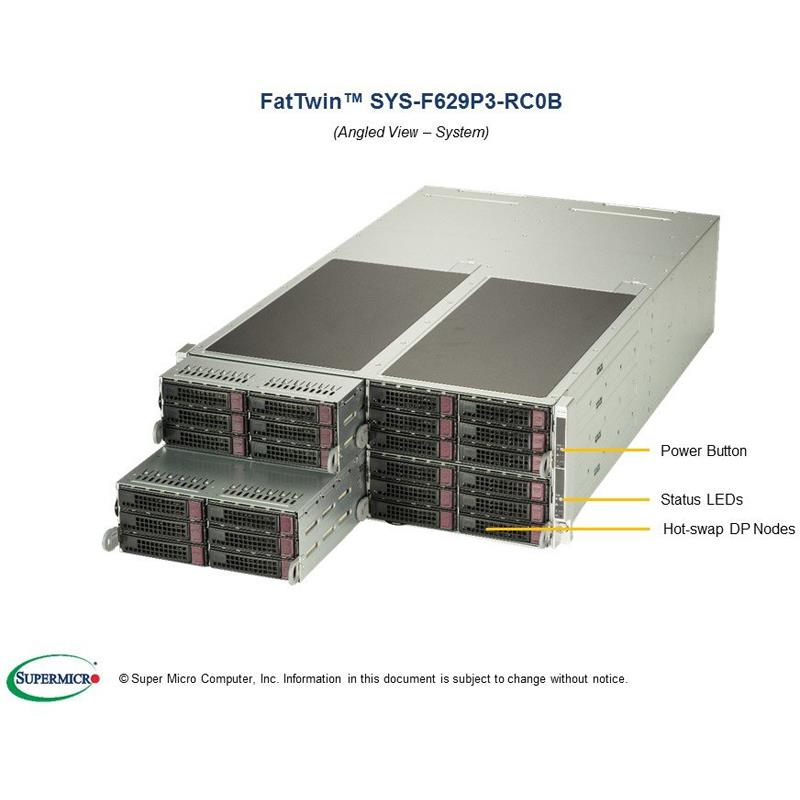

Supermicro SYS-F629P3-RC0B Twin 4U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation
Server 4U Rackmount FatTwin with Four Nodes, Each Node Supports: Dual Socket P (LGA 3647) Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors, Up to 3TB DDR4 ECC 3DS RDIMM/LRDIMM, Up to 2933MHz memory in 12x 288-pin Sockets - On-Board (per Node) : SAS 3.0 12Gbps via LSI 3008 (HBA/SW RAID 0, 1, 10), IPMI 2.0, SIOM flexible Network Card (not included), VGA - Includes (per Node) : (6+2) 3.5in Hot-swap SAS3 HDD trays, 8x 3.5in SAS3 or 6x 3.5in SAS3 + 2x NVMe U.2 (optional), 2x Heatsinks (1x SNK-P0068PSC, 1xSNK-P0069PSC) - System includes : 4x 1200W Redundant 80 Plus Platinum Level Certified Power Supply (4x PWS-1K23A-1R), 4x MBD-X11DPFR-SN Motherboards, 1x CSE-F424AS2-R1K23BP 4U Chassis - (Black) Please contact Wiredzone Technical Support for additional information about frequency optimized CPUs and specialized system optimization
This product is no longer available.
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x16 (for SIOM )
4. SIOM Network card, 1 dedicated IPMI LAN port
5. 1 VGA, 2 USB 3.0 ports
6. 8 Hot-swap 3.5" SAS3/SATA3 or 6 Hot-swap 3.5" SAS3/SATA3 + 2 optional NVMe U.2 M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
7. SAS3 via Broadcom 3008
8. 2x 8cm 14k RPM middle fans
9. 1200W Redundant Power Supplies Titanium Level (96% Efficiency)
Extra Specifications for Supermicro SYS-F629P3-RC0B Twin 4U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation
| Motherboard | ||
| Motherboard | Super X11DPFR-SN | |
| Processor (per Node) | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP 70-165W with IVR | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. | |
| System Memory (per Node) | ||
| Memory Capacity | Supports Intel® Optane™ DCPMM †† | |
| 12 DIMM slots | ||
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008 | |
| Network Controllers | Flexible networking via SIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output (per node) | ||
| SAS | 8 SAS3 (12Gbps) ports | |
| NVMe | 2 NVMe U.2 option | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| SIOM flexible Network card | ||
| USB | 2 USB 3.0 ports (rear) | |
| VGA | 1 VGA port | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-F424AS2-R1K23BP | |
| Dimensions and Weight | ||
| Width | 17.63" (448mm) | |
| Height | 6.96" (177mm) | |
| Depth | 29" (737mm) | |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) | |
| Weight | Net Weight: 150 lbs (68.04 kg) | |
| Gross Weight: 200 lbs (90.71 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Hard drive activity LED | ||
| Power status LED | ||
| Information LED (UID, Fan failure, Overheat) | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1 PCI-E 3.0 x16 (SIOM) | |
| 1 PCI-E 3.0 x16 (Low-profile) | ||
| Drive Bays (per node) | ||
| Hot-swap | 8 Hot-swap 3.5" SAS3/SATA3 or 6 Hot-swap 3.5" SAS3/SATA3 + 2 optional NVMe U.2 | |
| M.2 | M.2 Form Factor: 2260, 2280, 22110 | |
| M.2 Key: M-Key | ||
| M.2 Interface: PCI-E 3.0 x4 | ||
| Backplane | ||
| Backplane | 1 SAS/SATA backplane | |
| System Cooling (per node) | ||
| Fans | 2x 8cm 14 RPM middle fans | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 15-12A / 50-60Hz | |
| 200-240Vac / 8.5-7A / 50-60Hz | ||
| 200-240Vdc / 8.5-7A (for CCC only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer F629P3-RC0B (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPFR-SN | 4 | Super X11DPFR-SN Motherboard | |
| Motherboard / Chassis | CSE-F424AS2-R1K23BP | 1 | 4U Chassis | |
| Backplane | BPN-ADP-8S3008-1UF | 4 | BPN-ADP-8S3008-1UF | |
| Backplane | BPN-ADP-X11DPFR | 4 | Power distribution board for X11DPFR-S(N) | |
| Backplane | BPN-SAS3-F424-A2N2A | 4 | 2-Port Hybrid Backplane support 2 x SAS3/SATA3/NVMe Storage Devices | |
| Backplane | BPN-SAS3-F424-A6 | 4 | 6-port Fat Twin SAS3 12Gbps backplane, support up to 6x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0486L | 12 | 2x2 to 2x2 15cm power cable HF. 18AWG | |
| Cable 2 | CBL-OTHR-0022L | 4 | 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF | |
| Cable 3 | CBL-PWCD-0900 | 4 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG | |
| Cable 4 | CBL-SAST-0691 | 4 | MINI SAS HD RA- 2x MINI SAS HD,INT,15/59CM,28AWG | |
| Cable 5 | CBL-SAST-0706 | 4 | MINI SAS HD (reversed RA)-MINI SAS HD,12G,INT,11CM,30AWG | |
| Heatsink / Retention | SNK-P0068PSC | 4 | 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0069PSC | 4 | 1.5U Proprietary 50-mm Tall Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform 2U Node Twin Series Servers | |
| Power Supply | PWS-1K23A-1R | 4 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Backplane | BPN-ADP-2UPWR-X11 | 0 | 1 per node for configurations with CPU at 145W or higher | |||
| Cable | CBL-0480L | $ 17.00 | 0 | 1 per node for configurations with CPU at 145W or higher | ||
| NVMe | - | 0 | Contact Supermicro for configurations with more NVMe SSDs. | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
