| Motherboard |
| Motherboard | Super X11DPFR-SN |
| Processor (per Node) |
| CPU | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s |
| Support CPU TDP 70-165W with IVR |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. |
| System Memory (per Node) |
| Memory Capacity | Supports Intel® Optane™ DCPMM †† |
| 12 DIMM slots |
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM |
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| On-Board Devices |
| Chipset | Intel® C621 chipset |
| SAS | SAS3 (12Gbps) via Broadcom 3108 |
| HW RAID |
| Firmware Download |
| Network Controllers | Flexible networking via SIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output (per node) |
| SAS | 8 SAS3 (12Gbps) ports |
| NVMe | 2 NVMe U.2 optional |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| SIOM flexible Network card |
| USB | 2 USB 3.0 ports (rear) |
| VGA | 1 VGA port |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Software | Watch Dog |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-F424AS2-R1K23BP |
| Dimensions and Weight |
| Width | 17.63" (448mm) |
| Height | 6.96" (177mm) |
| Depth | 29" (737mm) |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) |
| Weight | Net Weight: 150 lbs (68.04 kg) |
| Gross Weight: 200 lbs (90.71 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Network activity LEDs |
| Hard drive activity LED |
| Power status LED |
| Information LED (UID, Fan failure, Overheat) |
| Expansion Slots (per node) |
| PCI-Express | 1 PCI-E 3.0 x16 (SIOM) |
| 1 PCI-E 3.0 x16 (Low-profile) |
| Drive Bays (per node) |
| Hot-swap | 8 Hot-swap 3.5" SAS3/SATA3 or 6 Hot-swap 3.5" SAS3/SATA3 + 2 optional NVMe U.2 |
| M.2 | M.2 Form Factor: 2260, 2280, 22110 |
| M.2 Key: M-Key |
| M.2 Interface: PCI-E 3.0 x4 |
| Backplane |
| Backplane | 1 SAS/SATA backplane |
| System Cooling (per node) |
| Fans | 2x 8cm 14 RPM middle fans |
| Power Supply (76mm Width) |
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus |
| Total Output Power | 1000W/1200W |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| Input | 100-127Vac / 15-12A / 50-60Hz |
| 200-240Vac / 8.5-7A / 50-60Hz |
| 200-240Vdc / 8.5-7A (for CCC only) |
| +12V | Max: 83A / Min: 0A (100-127Vac) |
| Max: 100A / Min: 0A (200-240Vac) |
| Max: 100A / Min: 0A (200-240Vdc) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |

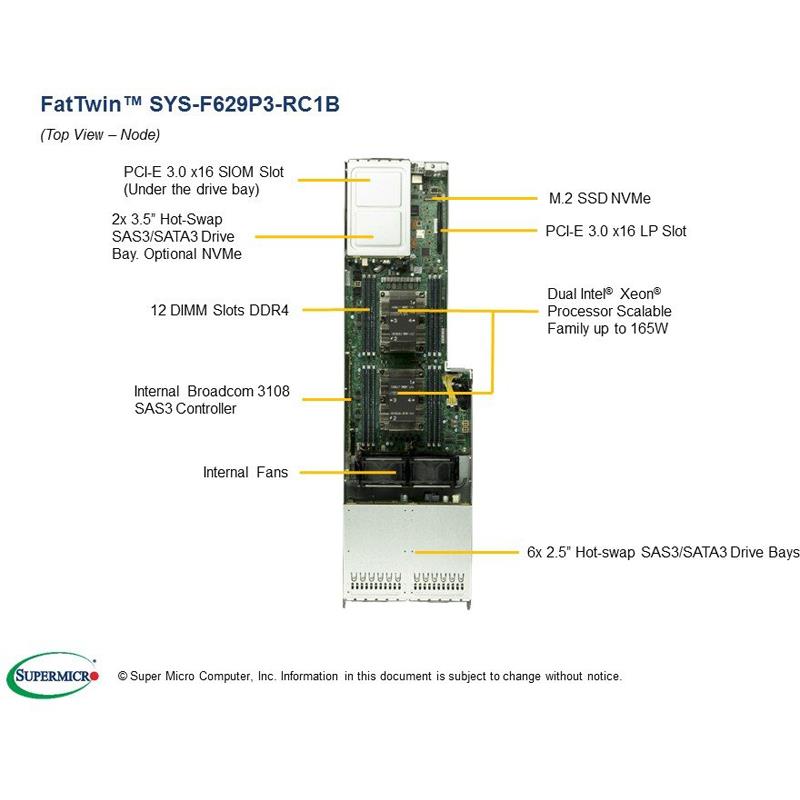

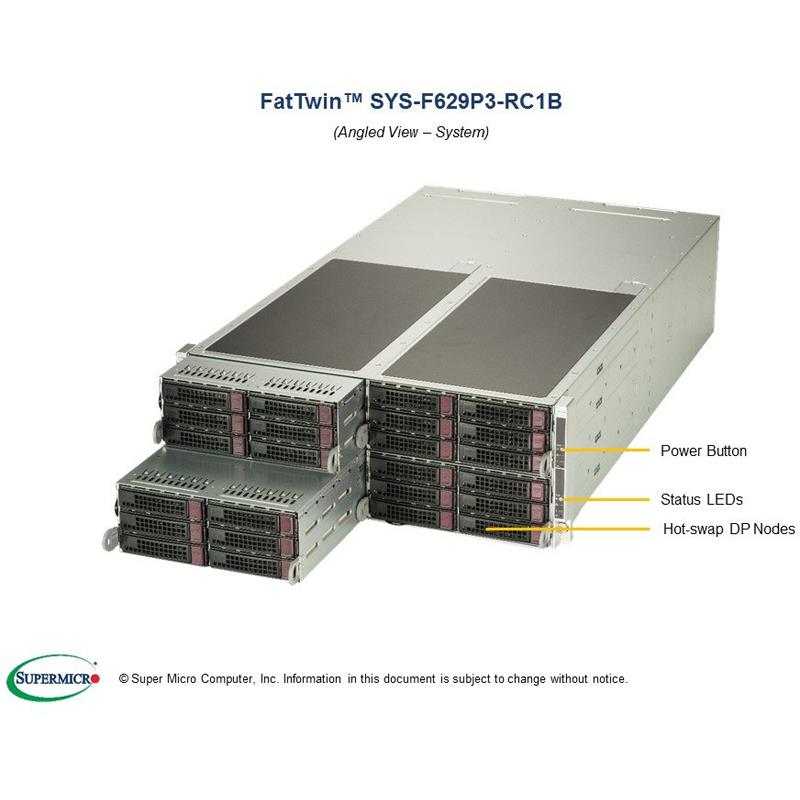

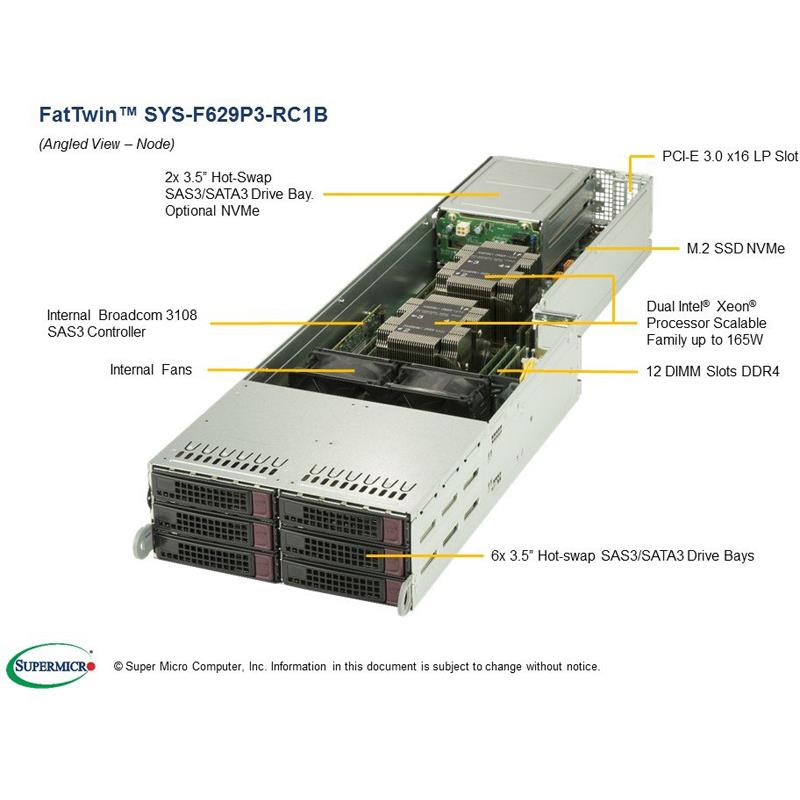

| Product SKUs | SuperServer F629P3-RC1B (Black) |
