- Supermicro SYS-F629P3-RTB Twin Barebone Dual CPU, 4-Node
Supermicro SYS-F629P3-RTB Twin Barebone Dual CPU, 4-Node

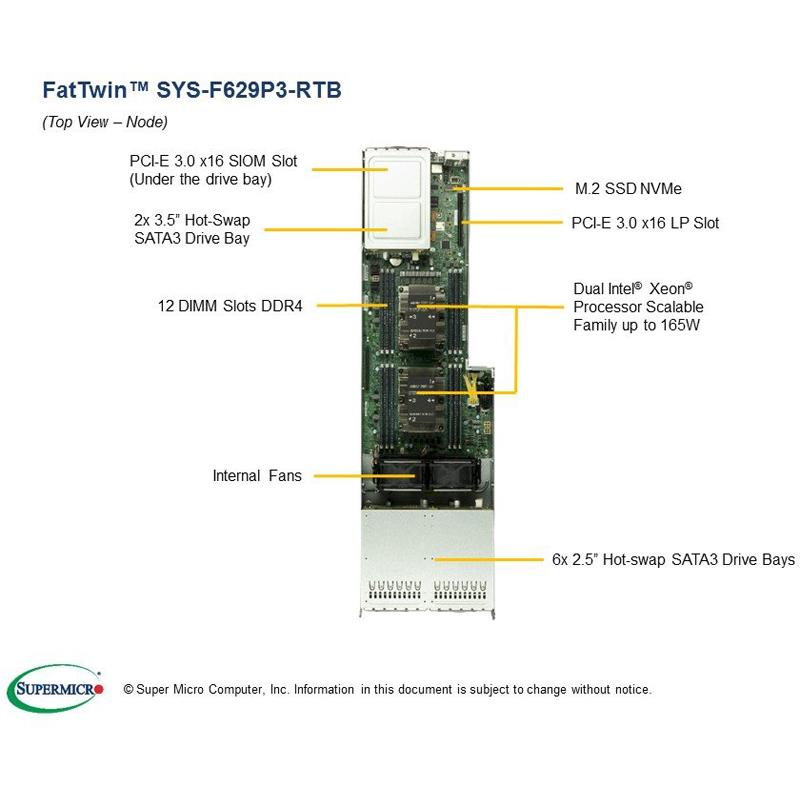

Server 4U Rackmount FatTwin with 4 Systems (Nodes) - Each Node Supports : Up to two Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors, Up to 3TB DDR4 ECC 3DS RDIMM/LRDIMM, up to 2933MHz memory in 12x 288-pin Sockets - On-Board (per Node) : 8x SATA3 via Intel C621 controller, IPMI 2.0, SIOM flexible Network Card (not included), VGA - Includes (per Node) : (6+2) 3.5in Hot-swap SATA HDD trays, M.2 support, 2x Heatsinks (1x SNK-P0068PSC, 1xSNK-P0069PSC) - System includes : 4x 1200W Redundant 80 Plus Platinum Level Certified Power Supply (4x PWS-1K23A-1R), 4x MBD-X11DPFR-S Motherboards, 1x CSE-F424AS2-R1K23BP 4U Chassis - (Black) Please contact Wiredzone Technical Support for additional information about frequency optimized CPUs and specialized system optimization
This product is no longer available.
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x16 (for SIOM )
4. SIOM Network card, 1 dedicated IPMI LAN port
5. 1 VGA, 2 USB 3.0 ports
6. 8 Hot-swap 3.5" SATA3 drive bays M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
7. 2x 8cm 14k RPM middle fans
8. 1200W Redundant Power Supplies Titanium Level (96% Efficiency)
Extra Specifications for Supermicro SYS-F629P3-RTB Twin Barebone Dual CPU, 4-Node
| Motherboard | ||
| Motherboard | Super X11DPFR-S | |
| Processor (per Node) | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP 70-165W with IVR | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. | |
| System Memory (per Node) | ||
| Memory Capacity | Supports Intel® Optane™ DCPMM †† | |
| 12 DIMM slots | ||
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Flexible networking via SIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output (per node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| SIOM flexible Network card | ||
| USB | 2 USB 3.0 ports (rear) | |
| VGA | 1 VGA port | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-F424AS2-R1K23BP | |
| Dimensions and Weight | ||
| Width | 17.63" (448mm) | |
| Height | 6.96" (177mm) | |
| Depth | 29" (737mm) | |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) | |
| Weight | Net Weight: 150 lbs (68.04 kg) | |
| Gross Weight: 200 lbs (90.71 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Hard drive activity LED | ||
| Power status LED | ||
| Information LED (UID, Fan failure, Overheat) | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1 PCI-E 3.0 x16 (SIOM) | |
| 1 PCI-E 3.0 x16 (Low-profile) | ||
| Drive Bays (per node) | ||
| Hot-swap | 8 Hot-swap 3.5" SATA3 drive bays | |
| M.2 | M.2 Form Factor: 2260, 2280, 22110 | |
| M.2 Key: M-Key | ||
| M.2 Interface: PCI-E 3.0 x4 | ||
| Backplane | ||
| Backplane | 1 SAS/SATA backplane | |
| System Cooling (per node) | ||
| Fans | 2x 8cm 14k RPM middle fans | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 15-12A / 50-60Hz | |
| 200-240Vac / 8.5-7A / 50-60Hz | ||
| 200-240Vdc / 8.5-7A (for CCC only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer F629P3-RTB (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPFR-S | 4 | Super X11DPFR-S Motherboard | |
| Motherboard / Chassis | CSE-F424AS2-R1K23BP | 1 | 4U Chassis | |
| Backplane | BPN-ADP-X11DPFR | 4 | Power distribution board for X11DPFR-S(N) | |
| Backplane | BPN-SAS-F424-A2 | 4 | 2-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 2x 3.5-inch SAS/SATA HDD | |
| Backplane | BPN-SAS-F424-A6 | 4 | 6-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 6x 3.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-0486L | 12 | 2x2 to 2x2 15cm power cable HF. 18AWG | |
| Cable 2 | CBL-OTHR-0022L | 4 | 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF | |
| Cable 3 | CBL-PWCD-0900 | 4 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG | |
| Cable 4 | CBL-SAST-0616 | 4 | MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG | |
| Cable 5 | CBL-SAST-1004-1 | 4 | MINI SAS HD to 4X SATA,SB,INT,55 CM | |
| Heatsink / Retention | SNK-P0068PSC | 4 | 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0069PSC | 4 | 1.5U Proprietary 50-mm Tall Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform 2U Node Twin Series Servers | |
| Power Supply | PWS-1K23A-1R | 4 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
