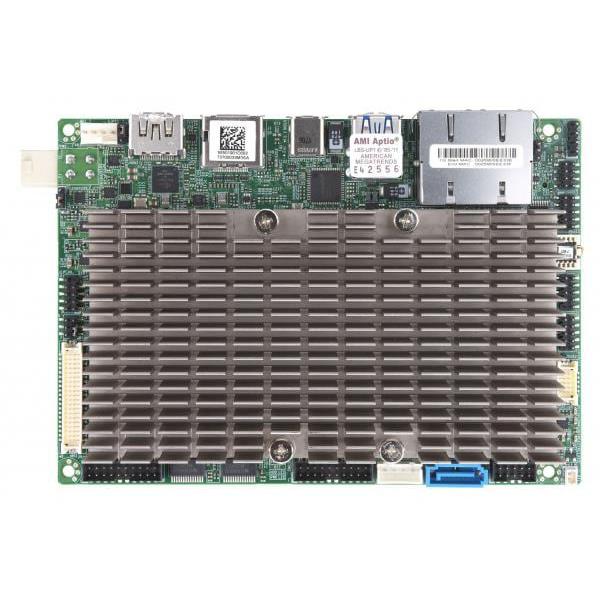

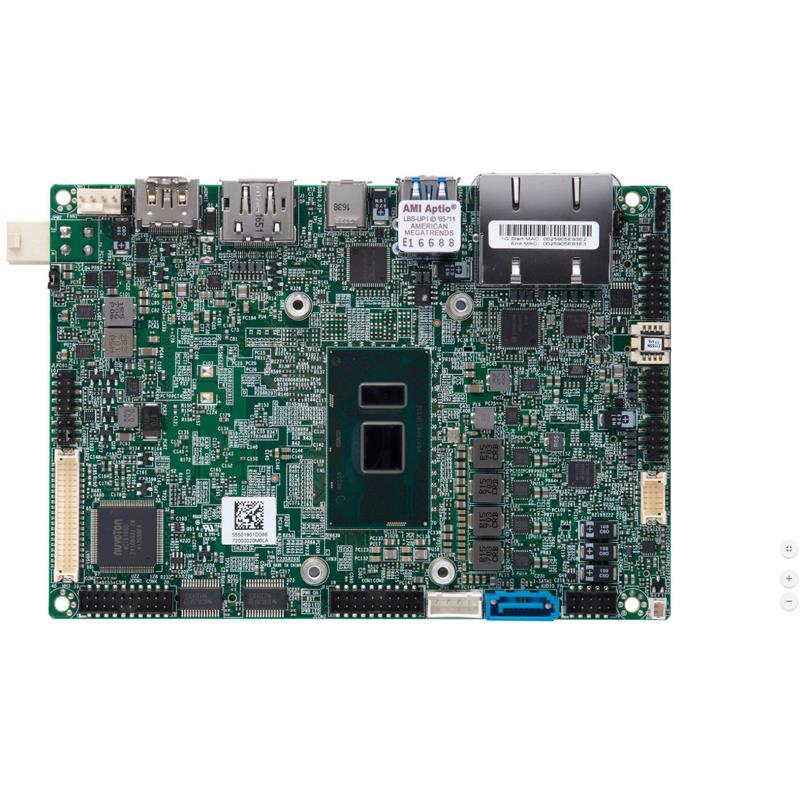

Supermicro X11SSN-H Motherboard 3.5in SBC with 7th Gen Intel Core i7-7600U, up to 32GB Unbuf non-ECC SO-DIMM DDR4 2133MHz in 2 DIMM slots
7th Generation Intel Core i7-7600U processor
Networking: Dual GbE LAN via Intel i219LM + i210IT
Up to 32GB non-ECC SO-DIMM DDR4 2133MHz across 2 DIMM slots
Storage/Expansion: 1 M.2 B-Key 2280, 1 full-size Mini-PCIe, 1 SATA 3.0
Motherboard 3.5in SBC with 7th Gen Intel Core i7-7600U, up to 32GB Unbuffered non-ECC SO-DIMM DDR4 2133MHz in 2 DIMM slots, System on Chip, Dual LAN, HD Audio, Intel HD VGA, M.2 B-Key, 7x USB 2.0 ports - MBD-X11SSN-H-O (Retail Box)
1. 7th Generation Intel® Core™ i7-7600U Processor
2. Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
3. 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
4. 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
5. Dual GbE LAN w/ Intel i219LM + i210IT
6. 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
7. Supports on board TPM 2.0
8. Support 12V DC power input (R/A Type Connector)
9. Support HDMI 2.0
Extra Specifications for Supermicro X11SSN-H Motherboard 3.5in SBC with 7th Gen Intel Core i7-7600U, up to 32GB Unbuf non-ECC SO-DIMM DDR4 2133MHz in 2 DIMM slots
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB | |
| Memory Capacity | 2 DIMM slots | |
| Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2133MHz | ||
| Memory Type | non-ECC DDR4 SODIMM Unbuffered 2133 SDRAM 72-bit, 260-pin gold-plated | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Graphics | 1 Intel® HD Graphics port(s) | |
| Network Controllers | Single LAN with Intel® PHY I219LM LAN controller | |
| Single LAN with Intel® Ethernet Controller I210IT | ||
| Audio | ALC 888S HD Audio | |
| Input / Output | ||

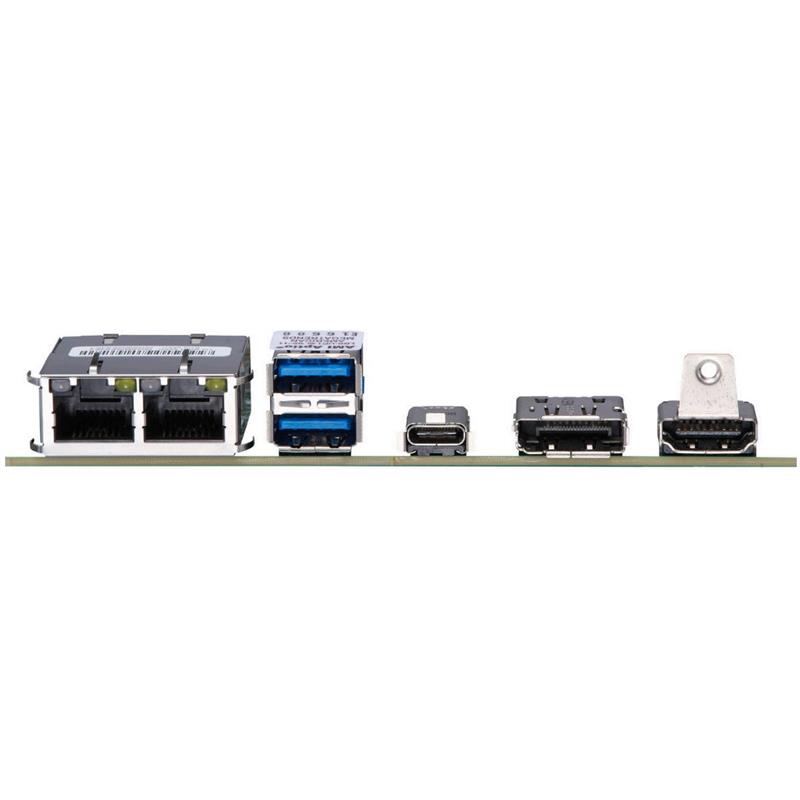

| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Others | 1 8-bit GPIO header | |
| 1 System Fan | ||
| 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C) | ||
| 1 Speaker header | ||
| 1 SMBus header | ||
| SATA | 1 SATA3 (6Gbps) port(s) | |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 48-bit LVDS port(s) | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 4 USB 2.0 port(s) (4 via header) | ||
| 1 USB 3.2 Gen2 port(s) (1 type C) | ||
| Serial Port | 4 COM Port(s) (4 header) | |
| TPM | 1 TPM Chip | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | PCI FW 3.0 | |
| ACPI 6.1 | ||
| SMBIOS 3.1 | ||
| UEFI 2.6 | ||
| Management | ||
| Power Configurations | ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Force Power On by Jumper, +12V DC Power Input R/A Type Connector | |
| Software | SuperDoctor® 5, AMT, vPro, Watchdog | |
| System Management Software | SuperDoctor 5 | |
| PC Health Monitoring | ||
| FAN | Low noise fan speed control | |
| Fan speed control | ||
| PWM fan speed control | ||
| System level control | ||
| Thermal control tachometer fan connectors | ||
| 1x 4-pin fan header (up to 1 fan) | ||
| LED | Standby alert LED | |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v R/A Type DC Power Connector | |
| Voltage | VBAT, System temperature, System level control, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V, Monitors for CPU Cores | |
| Temperature | CPU thermal trip support | |
| Product SKUs | ||
| Product SKUs | MBD-X11SSN-H | |
| Physical Stats | ||
| Form Factor | 3.5" SBC | |
| Dimension | 5.7" x 4" (14.6cm x 10.16cm) | |
| Processor | ||
| CPU | 7th Generation Intel® Core™ i7-7600U Processor | |
| Single Socket FCBGA-1356 supported, CPU TDP supports Up to 15W TDP | ||
| Core | Up to 2 cores, 4 threads / 4MB Cache | |
| Expansion Slots | ||
| PCIe | 1 Full size Mini-PCIe with mSATA(USB2.0 x 1,PCIe Gen3 x 1,SATA Gen3 x 1) | |
| M.2 | Form Factor: 2280 | |
| Key: B-Key | ||
| M.2 Interface: SATA; USB 2.0; PCIe 3.0 x2 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 70°C (32°F - 158°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
