| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 2 DIMM slots/2 Channels |
| Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM |
| On-Board Devices |
| Chipset | intel System on Chip |
| Network Connectivity | View AOC Options |
| 2 RJ45 2.5GbE with Intel® I225-IT |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 2 RJ45 2.5 GbE LAN port(s) (Intel® I225-IT) |
| USB | 2 USB 3.2 Gen1 Type-C port(s) (front) |
| 2 USB 3.2 Gen1 Type-A port(s) (front) |
| 4 USB 2.0 Type-A port(s) (Rear) |
| Video | 1 HDMI 2.0b port(s) (Front) |
| 1 HDMI 1.4b port(s) (Front) |
| 2 Mini-DP 1.4 port(s) (Front) |
| Serial | 4 COM port(s) (Rear) |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS |
| BIOS Type | AMIUEFI |
| BIOS Features | PCI F/W 3.0 |
| ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
| Front Panel |
| Buttons | Power On/Off |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD Status |
| Product SKUs |

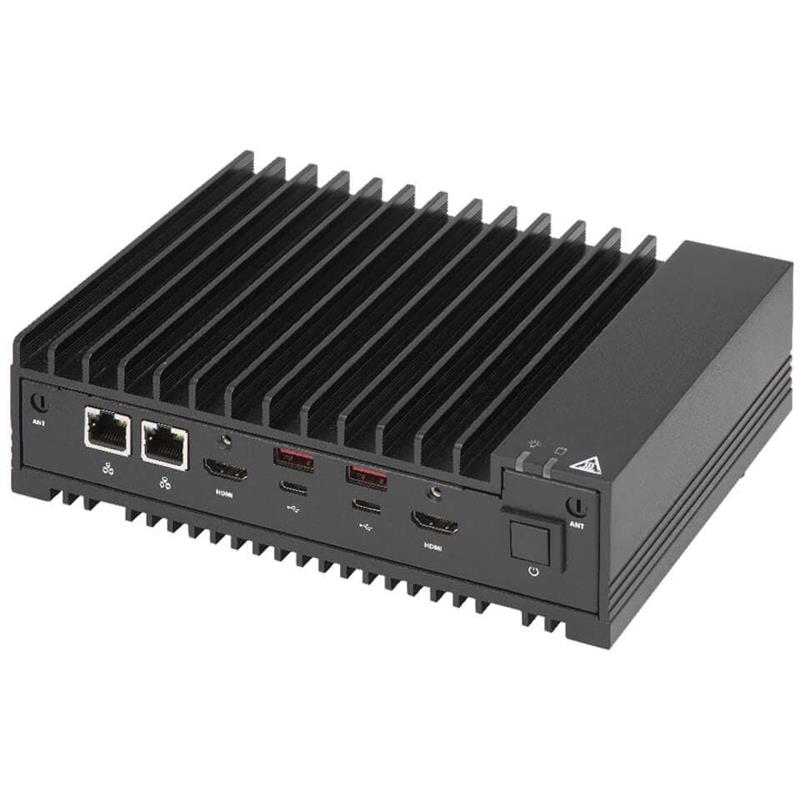

| Product SKUs | SYS-E100-13AD-H |
| Motherboard |
| Motherboard | Super X13SAN-H-WOHS |
| Processor |
| CPU | Single FCBGA-1744 |
| Intel® Core™ i7-1265UE |
| Core Count | Up to 10C/20T; Up to 12MB Cache |
| Note | Supports up to 28W TDP CPUs (Air Cooled) |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | ACPI Power Management |
| CPU thermal trip support for processor protection |
| DC 12V~24V Wide power range input |
| Control of power-on for recovery from AC power loss |
| Force power-on by jumper |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| Chassis |
| Form Factor | Fanless Embedded |
| Model | CSE-E101-04 |
| Dimensions and Weight |
| Height | 1.73" (44 mm) |
| Width | 7.68" (195 mm) |
| Depth | 5.94" (150 mm) |
| Package | 5.12" (H) x 11.81" (W) x 11" (D) |
| Weight | Gross Weight: 4.3 lbs (1.95 kg) |
| Net Weight: 2.16 lbs (0.98 kg) |
| Palletized Packing (W x H x L) | 54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) |
| Available Color | Black |
| Drive Bays / Storage |
| M.2 | View M.2 Options |
| 1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2242/2280) |
| 1 M.2 SATA slot(s) (B-key 2242/2280; USB 3.0) |
| System Cooling |
| Fans | 1 heavy duty fans with optimal fan speed control |
| Power Supply |
| AC Input | 84W: 100-240Vac / 47-63Hz |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
