| Main Specifications |

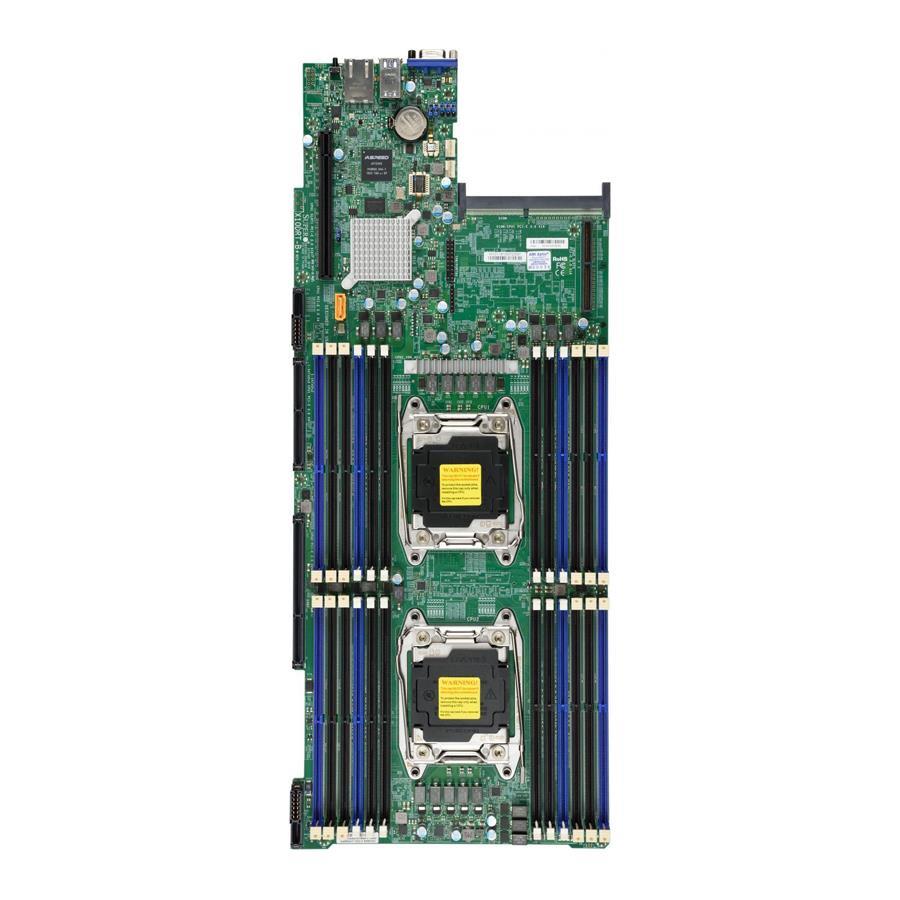

| Built-in Devices | Super X10DRT-B+ |
| Device Type | SuperServer |
| Dimensions (WxDxH) | Width 17.6" (447mm) x Height 3.47" (88mm) x Depth 28.75" (730mm) |
| Color | Black |

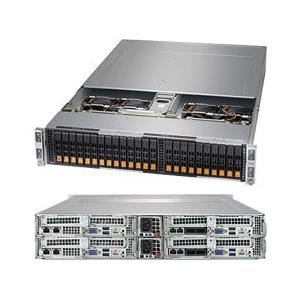

| Form Factor | 2U Rackmount - CSE-217BHQ+-R2K22BP |
| Weight | Gross Weight: 85 lbs (38.6kg) - Net Weight: 54.5 lbs (24.7 kg) |
| QPI | QPI up to 9.6 GT/s |
| Processor |
| Compatible processor | Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP) |
| Cache | Up to 22 Cores / Up to 55MB Cache |
| System Memory |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 24x 288-pin DDR4 DIMM slots |
| Up to 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| On-Board Devices |
| Chipset | Intel C612 chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | Aspeed AST2400 BMC |
| USB | 2 USB 3.0 ports (rear) |
| On-Board Devices (per Node) |
| Network | Must bundle with at least one SIOM network card |
| Input / Output |

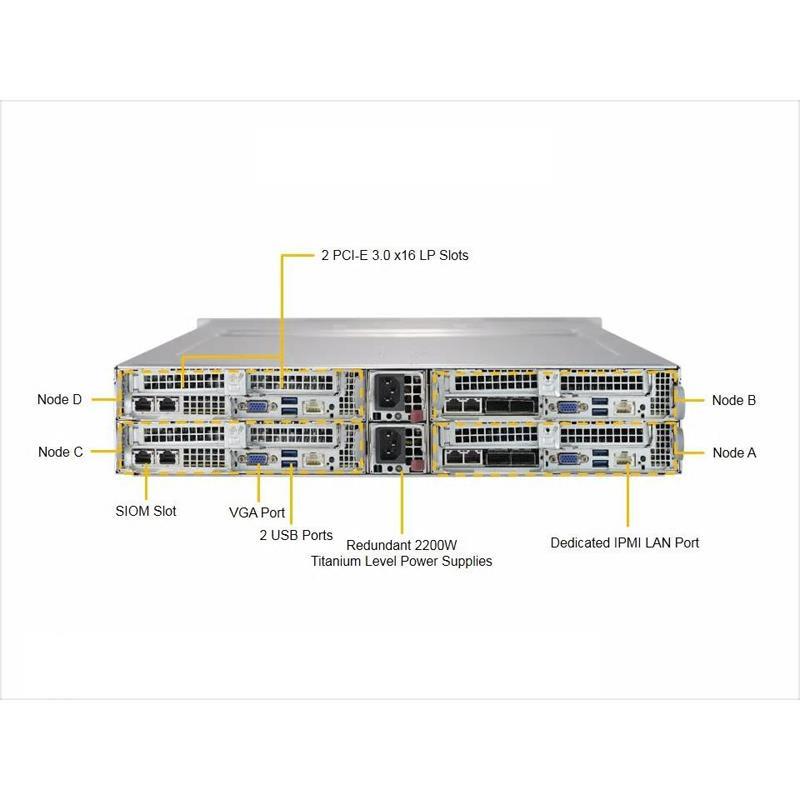

| LAN | 1 RJ45 Dedicated IPMI LAN port |
| VGA | 1 VGA port |

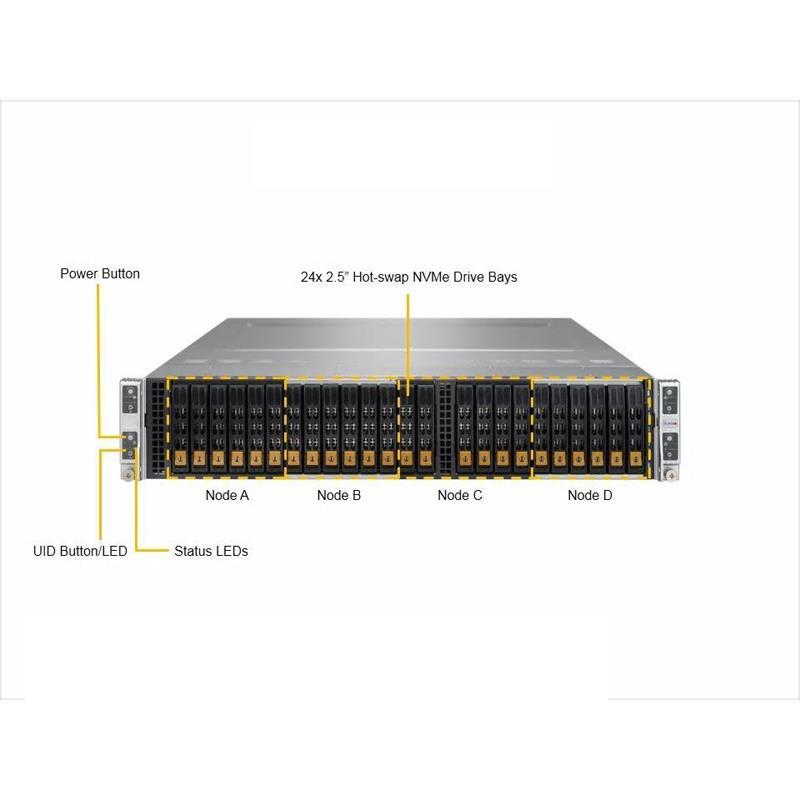

| Front Panel |
| Buttons | Power On/Off button, System Reset button, UID button |
| LEDs | Power status LED, HDD activity LED, 2 Network activity LEDs, Universal Information (UID) LED |
| Expansion Slots (per node) |
| PCI-Express | 2 PCI-E 3.0 (x16) Low-profile slots |
| 1 SIOM card (must bundle with network card) |
| Drive Bays |
| Hot-swap | 6 Hot-swap 2.5" NVMe drive bays |
| System Cooling |
| Fans | 4x 8cm heavy duty PWM fans with air shroud |
| Power Supply |
| Certification | 80PLUS Titanium Level |
| Power Supply | 2200W Redundant Power Supplies with PMBus |
| 2x PWS-2K22A-1R |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Environmental Standards |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
| Non-operating Temperature | -40C to 70C (-40F to 158F) |
| Environmental |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Environmental Parameters |
| Operating Temperature | 10C to 35C (50F to 95F) |
| Miscellaneous |
| Compliant Standards | RoHS Compliant |
| Riser Card | 4x RSC-P-6, 4x RSC-R1UTP-E16R |
| Parts List - (Items Included) |
| Air Shroud | 4x MCP-310-21706-0B |
| Backplane | 4x BPN-ADP-6NVME3-1UB, 1x BPN-NVME3-217BHQ |
| Drive Trays | 24x MCP-220-00127-0B |
| Heatsink / Retention | 4x SNK-P0047PSM, 4x SNK-P0057PS |
| Motherboard / Chassis | 4x MBD-X10DRT-B+, 1x CSE-217BHQ+-R2K22BP |
| PC Health Monitoring |
| FAN | 4x FAN-0162L4 |
