- Supermicro SYS-E100-13AD-L IoT 3.5" SBC Barebone Embedded Intel Core i3-1215UE Processor

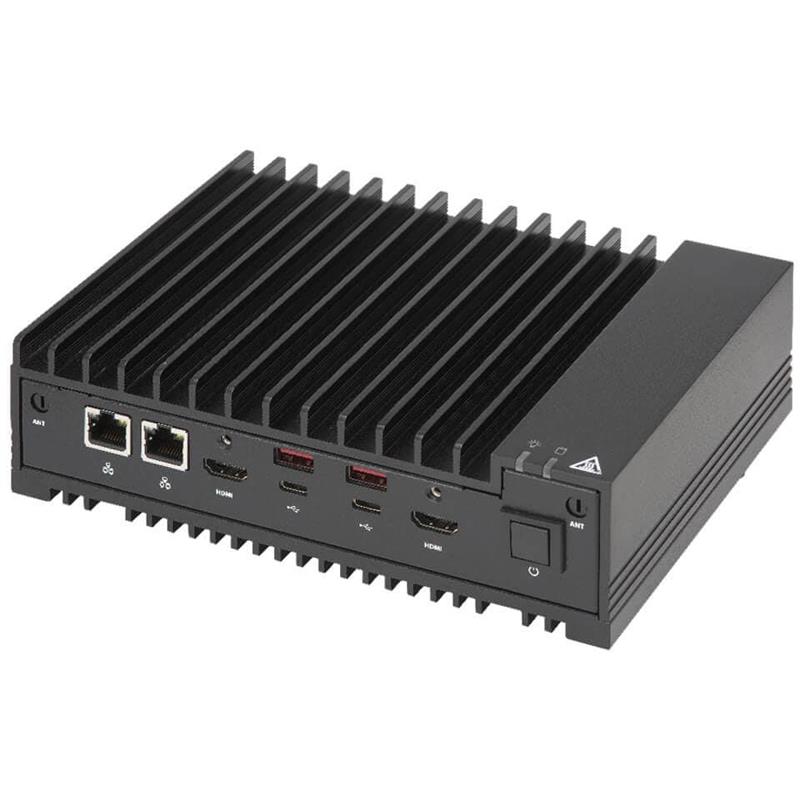

Supermicro SYS-E100-13AD-L IoT 3.5" SBC Barebone Embedded Intel Core i3-1215UE Processor
• Industrial Automation, Retail
• Smart Medical Expert Systems
• Digital Signage Kiosk, Interactive info system
• IoT Gateway for Smart Factory
• Smart Building, Security and Surveillance
Barebone 3.5" SBC, Embedded Intel Core i3-1215UE Processor 12th Generation, 3.30GHz 6-Core/8 thread. Up to 64GB in 2 DIMM slots, SO-DIMM, Chipset: Intel System on Chip, On-Board: Intel 600 Series Controller for 1 SATA3 Port, M.2 M/B/E-Key with Nano SIM Card Slot, Network Connectivity : 2x 2.5GbE BaseT Ports, 84W 12V Lockable DC Power Adapter Without Power Cord - (SYS-E100-13AD-L + X13SAN-L-WOHS)
1. Integrated with Intel® Wi-Fi 6E AX210 Gig+, supporting Wi-Fi 4,5,6, 6E R2 and Bluetooth® 5.3
2. Alder Lake-U 12th Generation Intel® Core™i3-1215UE
3. 2x DDR5-4800MT/s Non-ECC SO-DIMM max 64GB
4. M.2 M/B/E-Key with Nano SIM Card Slot
5. 2x LAN 2.5GbE
6. Fanless (Op. Temperature 0C ~ +50C)
7. 4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)
Extra Specifications for Supermicro SYS-E100-13AD-L IoT 3.5" SBC Barebone Embedded Intel Core i3-1215UE Processor
System Memory | ||
Memory Voltage | 1.1V | |
Memory | View Memory Options | |
Slot Count: 2 DIMM slots/2 Channels | ||
Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM | ||
On-Board Devices | ||
Chipset | intel System on Chip | |
Network Connectivity | View AOC Options | |
2 RJ45 2.5GbE with Intel® I225-IT | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
LAN | 2 RJ45 2.5 GbE LAN port(s) (Intel® I225-IT) | |
USB | 2 USB 3.2 Gen1 Type-C port(s) (front) | |
2 USB 3.2 Gen1 Type-A port(s) (front) | ||
4 USB 2.0 Type-A port(s) (Rear) | ||
Video | 1 HDMI 2.0b port(s) (Front) | |
1 HDMI 1.4b port(s) (Front) | ||
2 Mini-DP 1.4 port(s) (Front) | ||
Serial | 4 COM port(s) (Rear) | |
TPM | 1 TPM Onboard/port 80 | |
Front Panel | ||
Buttons | Power On/Off | |
LED | LAN1 activity | |
LAN2 activity | ||
Power status | ||
HDD Status | ||
Product SKUs | ||
Product SKUs | SYS-E100-13AD-L | |
Motherboard | ||
Motherboard | Super X13SAN-L-WOHS | |
Processor | ||
CPU | Single FCBGA-1744 | |
Intel® Core™ i3-1215UE | ||
Core Count | Up to 6C/12T; Up to 10MB Cache | |
Note | Supports up to 15W TDP CPUs (Air Cooled) | |
System BIOS | ||
BIOS Type | AMIUEFI | |
BIOS Features | PCI F/W 3.0 | |
ACPI 6.4 | ||
SMBIOS 3.5 or later | ||
UEFI 2.8 | ||
Management | ||
Software | KVM with dedicated LAN | |
Redfish API | ||
SuperDoctor® 5 | ||
IPMI 2.0 | ||
Supermicro Update Manager (SUM) | ||
Supermicro Server Manager (SSM) | ||
Super Diagnostics Offline | ||
Power configurations | ACPI Power Management | |
CPU thermal trip support for processor protection | ||
DC 12V~24V Wide power range input | ||
Control of power-on for recovery from AC power loss | ||
Force power-on by jumper | ||
Security | ||
Hardware | Trusted Platform Module (TPM) 2.0 | |
Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
Features | Cryptographically Signed Firmware | |
Secure Boot | ||
Secure Firmware Updates | ||
Automatic Firmware Recovery | ||
Supply Chain Security: Remote Attestation | ||
Runtime BMC Protections | ||
System Lockdown | ||
Chassis | ||
Form Factor | Fanless Embedded | |
Model | CSE-E101-04 | |
Dimensions and Weight | ||
Height | 1.73" (44 mm) | |
Width | 7.68" (195 mm) | |
Depth | 5.94" (150 mm) | |
Package | 5.12" (H) x 11.81" (W) x 11" (D) | |
Weight | Gross Weight: 4.3 lbs (1.95 kg) | |
Net Weight: 2.16 lbs (0.98 kg) | ||
Palletized Packing (W x H x L) | 54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) | |
Available Color | Black | |
Drive Bays / Storage | ||
M.2 | View M.2 Options | |
1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2242/2280) | ||
1 M.2 SATA slot(s) (B-key 2242/2280; USB 3.0) | ||
System Cooling | ||
Fans | 1 heavy duty fans with optimal fan speed control | |
Power Supply | ||
AC Input | 84W: 100-240Vac / 47-63Hz | |
Operating Environment | ||
ROHS | RoHS Compliant | |
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X13SAN-L-WOHS | 1 | Super X13SAN-L-WOHS Motherboard | |
Motherboard / Chassis | CSE-E101-04 | 1 | Fanless Embedded Chassis | |
Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
Cable | CBL-CUSB-0985 | 2 | USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CM | |
Cable | CBL-CUSB-1047 | 1 | SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWG | |
Cable | CBL-OTHR-1046 | 1 | 2x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG | |
Power Supply | MCP-250-10137-0N | 1 | 84W Lockable AC to DC power adapter w/o power cord - EN62368 | |
Heatsink / Retention | MCP-350-10103-0N | 1 | for X13SAN in system | |
Manual | MNL-2622-QRG | 1 | E100-13AD-H/E/L/C Quick Reference Guide |
