- Supermicro AS-1013S-MTR 1U Barebone Single AMD Processor
Supermicro AS-1013S-MTR 1U Barebone Single AMD Processor
• Web Hosting, VM
• Cloud Computing
• Connectivity/Storage
• Computer Nodes
Barebone 1U Rack Server Socket SP3 for Single AMD EPYC 7000 Series - Up to 1TB Registered DDR4 up to 2666MHz, 4x Hot-Swap 3.5in drive bays, 4x Sata3 ports, 1x M.2 NVMe SSD support, 2x Gigabit Ethernet, VGA, IPMI 2.0, 400W 80 Platinum Level Certified Power Supply w/ PMBus - (H11SSL-i + SC813MFTQC-R407CB) - (Black) - AS -1013S-MTR
This product is no longer available.
1. Single AMD EPYC™ 7001/7002 * Series Processor ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
3. Expansion slots: PCI-E 3.0 x16 (FH/HL) slot M.2 Interface : PCI-E 3.0 x4 (NVMe based) M.2 Form Factor : 2280, 22110 M.2 Key : Onboard M-key Number of M.2 : Single
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 2x 1GbE LAN ports via Intel ® I210
6. 4 hot-swap 3.5" SATA3 drive bays or 4 SAS3 ports (SAS Add-on Card is optional), 1 M.2 NVMe SSD Supported
7. 400W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1013S-MTR 1U Barebone Single AMD Processor
| Product SKUs | ||
| AS -1013S-MTR | A+ Server 1013S-MTR | |
| Motherboard | ||

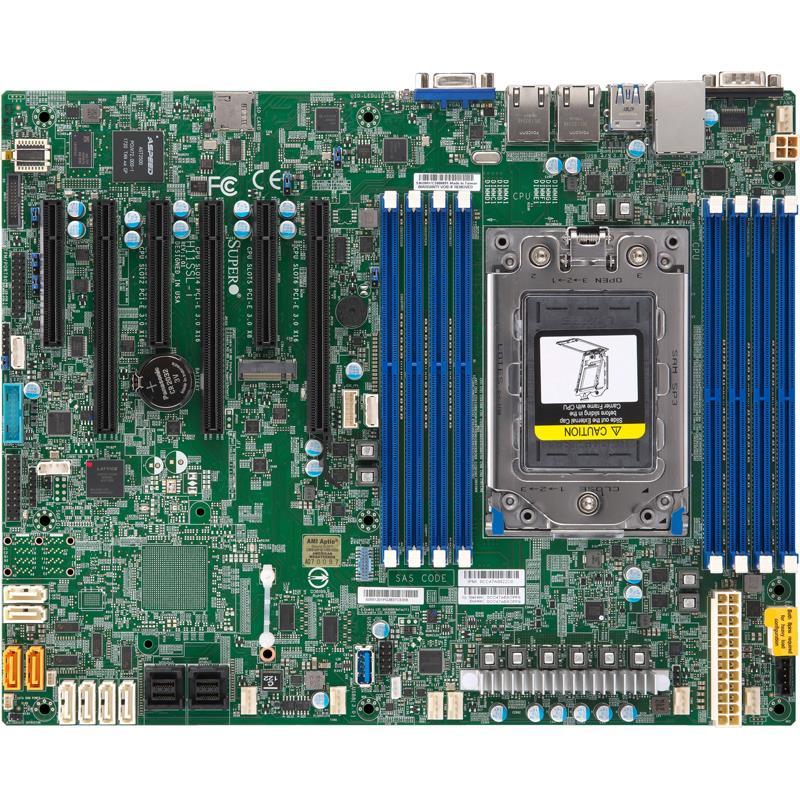

| Motherboard | H11SSL-i | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Single AMD EPYC™ 7001/7002 * series Processor ( * Board revision 2.x required) | ||
| Supports CPU TDP 225W / cTDP up to 240W * | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots | |
| 8-channel memory bus | ||
| Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | |
| DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA | SATA3 (6 Gbps) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Intel ® I210 Controller | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| PCI Express | 1 PCI-E 3.0 x16 (FH/HL) slot | |
| M.2 | Form Factor: 2280, 22110 | |
| Interface: PCI-E 3.0 x4 (NVMe based) | ||
| Key: Onbard M-key | ||
| Number of M.2: Single | ||

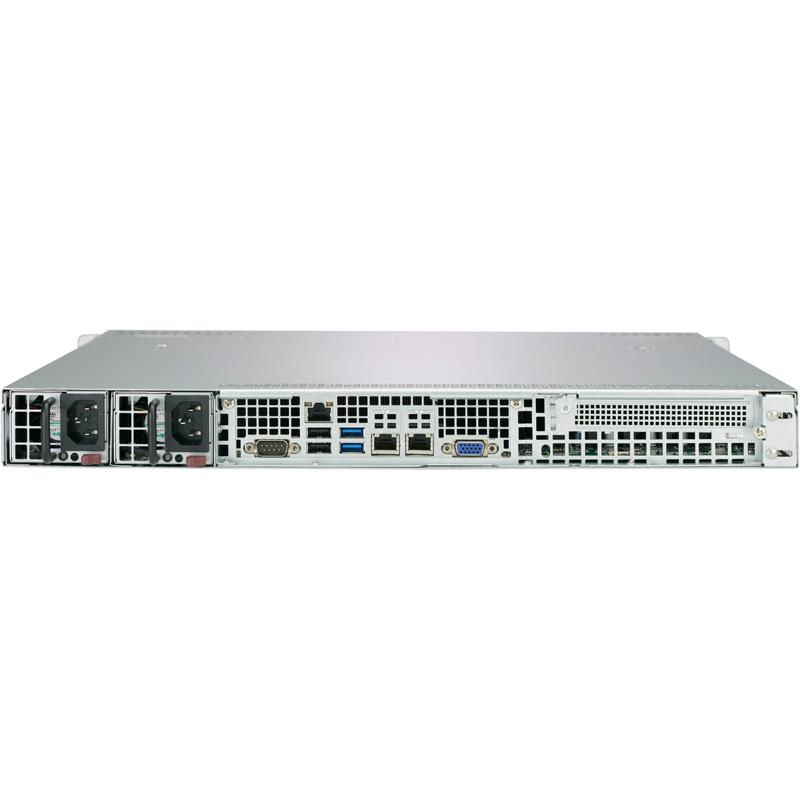

| Input / Output | ||
| SATA | 4 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 1GbE LAN ports | ||
| USB | 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) | |
| 4 USB 2.0 ports (2 rear, 2 via header) | ||
| VGA | 1 VGA port | |
| Others | TPM 1.2 header | |
| 1 COM port (rear) | ||
| 2 SATA DOM power connector | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||

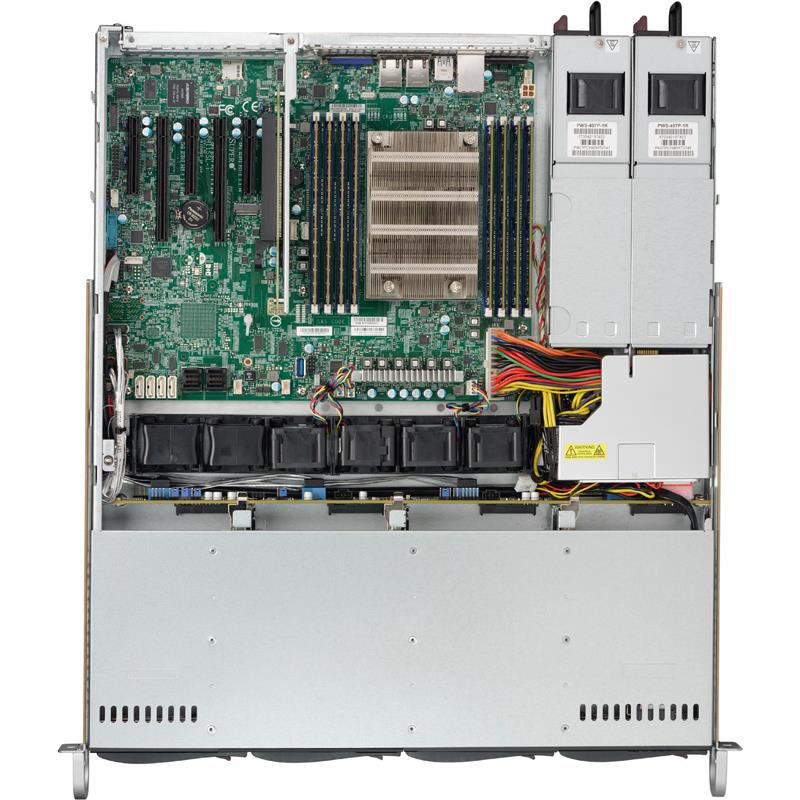

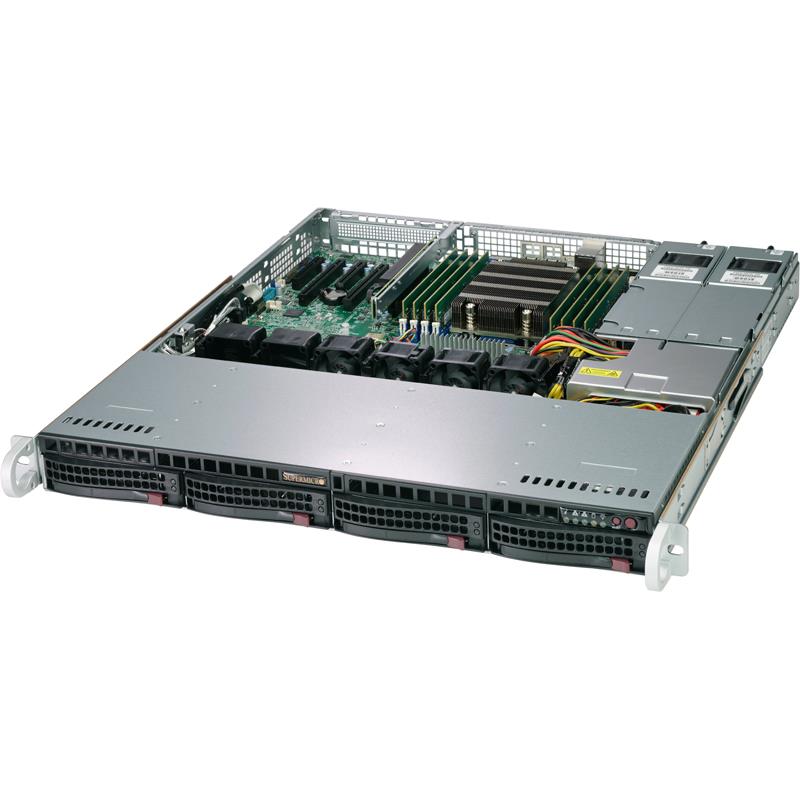

| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-813MFTQC-R407CB | |
| Dimensions | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 19.85" (503mm) | |
| Weight | Net Weight: 20 lbs (9.1 kg) | |
| Gross Weight: 33 lbs (15.0 kg) | ||

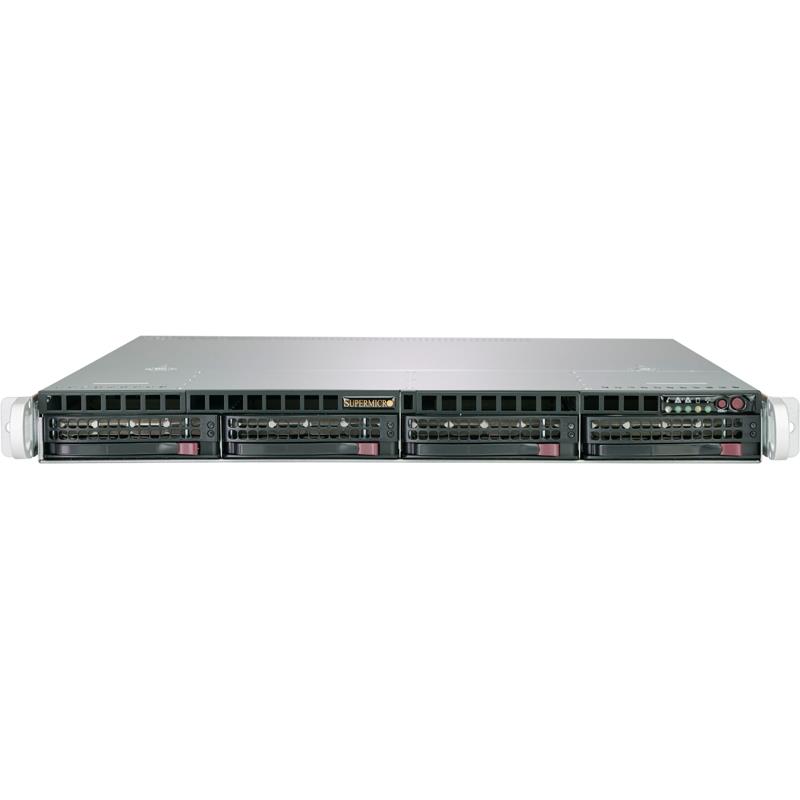

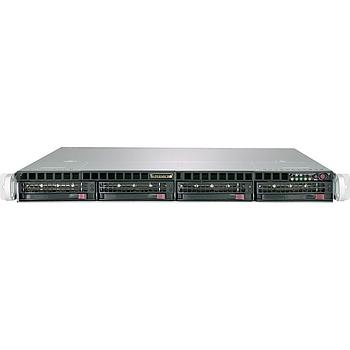

| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 4 hot-swap 3.5" SATA3 drive bays | |
| Peripheral Drives | ||
| Optional | Optional 2.5" drive adapter | |
| Optional slim DVD drive | ||
| Backplane | ||
| HDD Backplane | Supports 4 SATA3 3.5" HDD | |
| System Cooling | ||
| Fans | 4x 40x28mm 4-pin PWM Cooling Fans | |
| Air Shroud | 1 Air Shroud | |
| AC/DC240V Input Redundant Power Supplies | ||
| AC/DC240V Input Redundant Power Supplies | 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | 400W | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz | |
| 200 - 240Vdc / 3.4 - 3.2A (CCC Only) | ||
| +12V | Max: 33A / Min: 0.5A | |
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Level Certified | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 8-fan status tachometer monitoring | ||
| Up to eight 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I²C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11SSL-i | 1 | Super H11SSL-i Motherboard | |
| Chassis | CSE-813MFTQC-R407CB | 1 | 1U Chassis | |
| HD Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD | |
| Cable | CBL-0488L | 1 | SATA,INT,ROUND,ST-RA,55CM,30AWG | |
| Cable | CBL-SAST-0639 | 2 | SATA,INT,ROUND,ST-RA,31CM,30AWG | |
| Cable | CBL-SAST-0641 | 1 | SATA,INT,ROUND,ST-RA,45CM,30AWG | |
| Part(s) | MCP-120-00031-0N | 1 | Riser card bracket for SC812,813,813M,815,111,113,113M | |
| Air Shroud | MCP-310-81305-0B | 1 | Mylar air shroud for 1U X11SPW-TF,RoHS | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Heat Sink | SNK-P0062P | 1 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 275.00 | 0 | CacheVault for Broadcom 3108 | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00118-0B | $ 31.50 | 0 | STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray | ||
| DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | 0 | Black Panasonic Slim DVD-ROM SATA Drive | |||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT3 | 0 | Black TEAC Slim DVD-ROM SATA Drive | |||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT4 | 0 | Philips Slim Black DVD-RW SATA Drive, HF | |||
| Drive Tray(s) | MCP-220-00129-0B | $ 37.50 | 0 | Black 2x USB 3.0 port tray in slim FDD bay | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) | MCP-220-81504-0N | $ 113.00 | 0 | 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot)+Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) | MCP-220-81504-0N | $ 113.00 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED+Slim DVD Size Drive Kit w/Status LED | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| FAN | FAN-0154L4 | $ 26.00 | 2 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
