- Supermicro AS-2013S-C0R 2U Barebone Single AMD Processor
Supermicro AS-2013S-C0R 2U Barebone Single AMD Processor
• Cloud and Virtualization needs
• Connectivity/Storage
• Computer Nodes
• Database Processing & Storage
• High End Enterprise Server
• Hosting & Application delivery

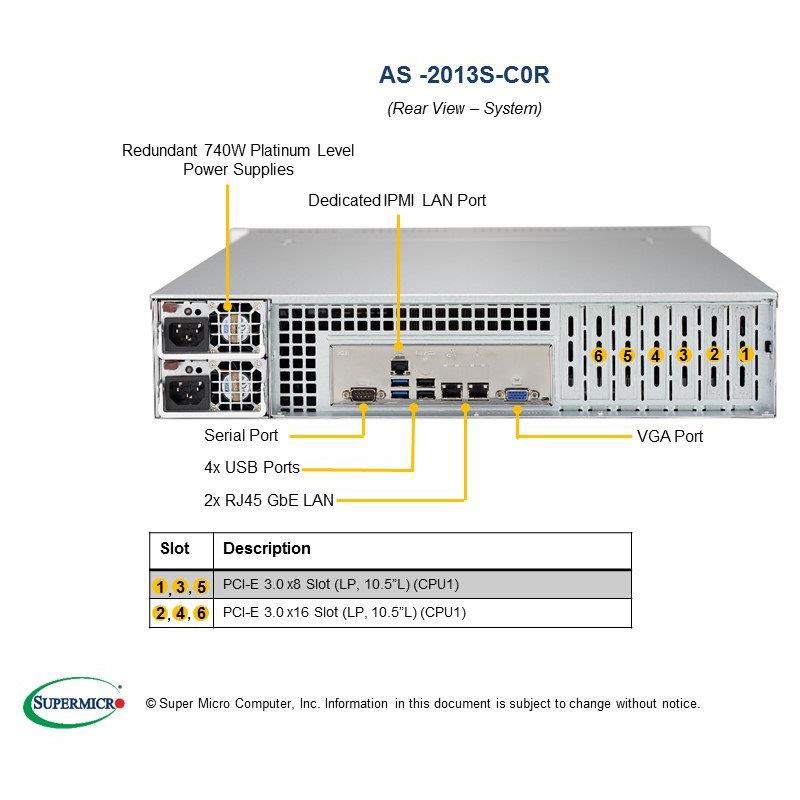

Barebone 2U Rack Server Socket SP3 for Single AMD EPYC 7000 Series - Up to 1TB Registered DDR4 up to 2666MHz, 8x Hot-Swap 3.5in drive bays, 8x SAS3/SATA3 Broadcom 3008 IR Mode (RAID 0, 1, 10), 1x M.2 NVMe SSD support, 2x Gigabit Ethernet, VGA, IPMI 2.0, 740W Redundant Platinum Level Certified Power Supply w/ PMBus - (H11SSL-C + SC825TQ-R740LPB) - (Black) - AS -2013S-C0R
1. Single AMD EPYC™ 7001/7002 * Series Processor ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
3. Expansion slots: 3 PCI-E 3.0 x16 (low profile); 3 PCI-E 3.0 x8 (low profile) M.2 Interface : PCI-E 3.0 x4 (NVMe based) M.2 Form Factor : 2280, 22110 M.2 Key : Onboard M-key Number of M.2 : Single
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 2x 1GbE LAN ports via Intel ® I210
6. 8 hot-swap 3.5" SAS3/SATA3 Drive Bays (on-board Broadcom 3008 IR mode), 1 M.2 NVMe SSD slot Supported
7. 740W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2013S-C0R 2U Barebone Single AMD Processor
| Product SKUs | ||
| AS -2013S-C0R | A+ Server 2013S-C0R | |
| Motherboard | ||
| Motherboard | H11SSL-C | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Single AMD EPYC™ 7001/7002 * series Processor ( * Board revision 2.x required) | ||
| Supports CPU TDP 225W / cTDP up to 240W * | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots | |
| 8-channel memory bus | ||
| Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | |
| DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA/SAS | Broadcom 3008 SAS3 (12 Gbps) controller | |
| SATA3 (6 Gbps) | ||
| IR mode; RAID 0, 1, 10 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Intel ® I210 Controller | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| PCI Express | 3 PCI-E 3.0 x16 (low profile) | |
| 3 PCI-E 3.0 x8 (low profile) | ||
| M.2 | Form Factor: 2280, 22110 | |
| Interface: PCI-E 3.0 x4 (NVMe based) | ||
| Number of M.2: Single | ||
| Key: Onboard M-key | ||
| Input / Output | ||
| SATA/SAS | 8 SATA3 (6 Gbps) / | |
| 8 SAS3 ports via Broadcom 3008 | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 1GbE LAN ports | ||
| USB | 3 USB 3.0 ports | |
| 2 USB 2.0 ports | ||
| VGA | 1 VGA port | |
| Others | TPM 1.2 header | |
| 1 COM port (rear) | ||
| 2 SATA DOM power connector | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | SC825TQ-R740LPB | |
| Dimensions | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.5" (647mm) | |
| Weight | Net Weight: 35.5 lbs (16.1 kg) | |
| Gross Weight: 69 lbs (31.2 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 8 hot-swap 3.5" SAS3/SATA3 Drive Bays | |
| Peripheral Drives | ||
| DVD-ROM | Slim DVD-ROM drive (optional) | |
| Backplane | ||
| HDD Backplane | Supports 8 SAS3/SATA3 3.5" HDD | |
| System Cooling | ||
| Fans | 3 heavy-duty PWM fans with optimal fan speed control | |
| Power Supply with Power Distributor | ||
| Power Supply with Power Distributor | 740W Redundant high-efficiency power supply with PMBus | |
| AC Input | 100-240 V, 50-60 Hz, 9-3.5 Amp | |
| DC Output | 4 Amp @ +5V standby | |
| 61.7 Amp @ +12V | ||
| Certification | Platinum Certified | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fan status tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I²C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11SSL-C | 1 | Super H11SSL-C Motherboard | |
| Chassis | CSE-825TQ-R740LPB | 1 | Black 2U SC825TQ LP chassis w/ Red. 740W PWS | |
| HD Backplane | BPN-SAS3-825TQ | 1 | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable | CBL-SAST-0948 | 2 | MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG | |
| Heat Sink | SNK-P0063P | 1 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Card(s) | AOC-S40G-i2Q | $ 385.00 | 0 | Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 | ||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | |||
| Network Card(s) | AOC-STGN-i2S | $ 312.50 | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | ||
| Network Card(s) | AOC-STGN-i1S | $ 175.00 | 0 | Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN | ||
| Network Card(s) | AOC-STG-i2T | $ 312.50 | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 | ||
| Network Card(s) | AOC-STG-i2 | 0 | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB | |||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 20.00 | 0 | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00118-0B | $ 26.50 | 0 | STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray. | ||
| Cable Management Arm | MCP-290-00073-0N | $ 78.00 | 0 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm) | ||
| Storage Controller card & cable | AOC-S3008L-L8e& 2x CBL-SAST-0699 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBAMINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG | |||
| Storage Controller card & cable | AOC-S3008L-L8i& 2x CBL-SAST-0699 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1EMINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG | |||
| Storage Controller card & cable | AOC-S3108L-H8iR& 2x CBL-SAST-0699 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG | |||
| CacheVault | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108, | |||
| CacheVault | & BKT-BBU-BRACKET-05 | 0 | Supercap mounting bracket for PCI-E location | |||
| CacheVault | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108, | |||
| CacheVault | & MCP-240-00127-0N | 0 | Supercap mounting bracket for 2.5" HDD location, | |||
| CacheVault | & MCP-220-00043-0N | 0 | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | |||
| Adapter Bracket | MCP-120-82503-0N | $ 28.50 | 0 | Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF | ||
| SATA DVD Kit | MCP-220-81502-0N | $ 23.00 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| TPM | AOM-TPM-9655V | $ 39.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 39.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
